DASH DISASSEMBLY
(CONT)

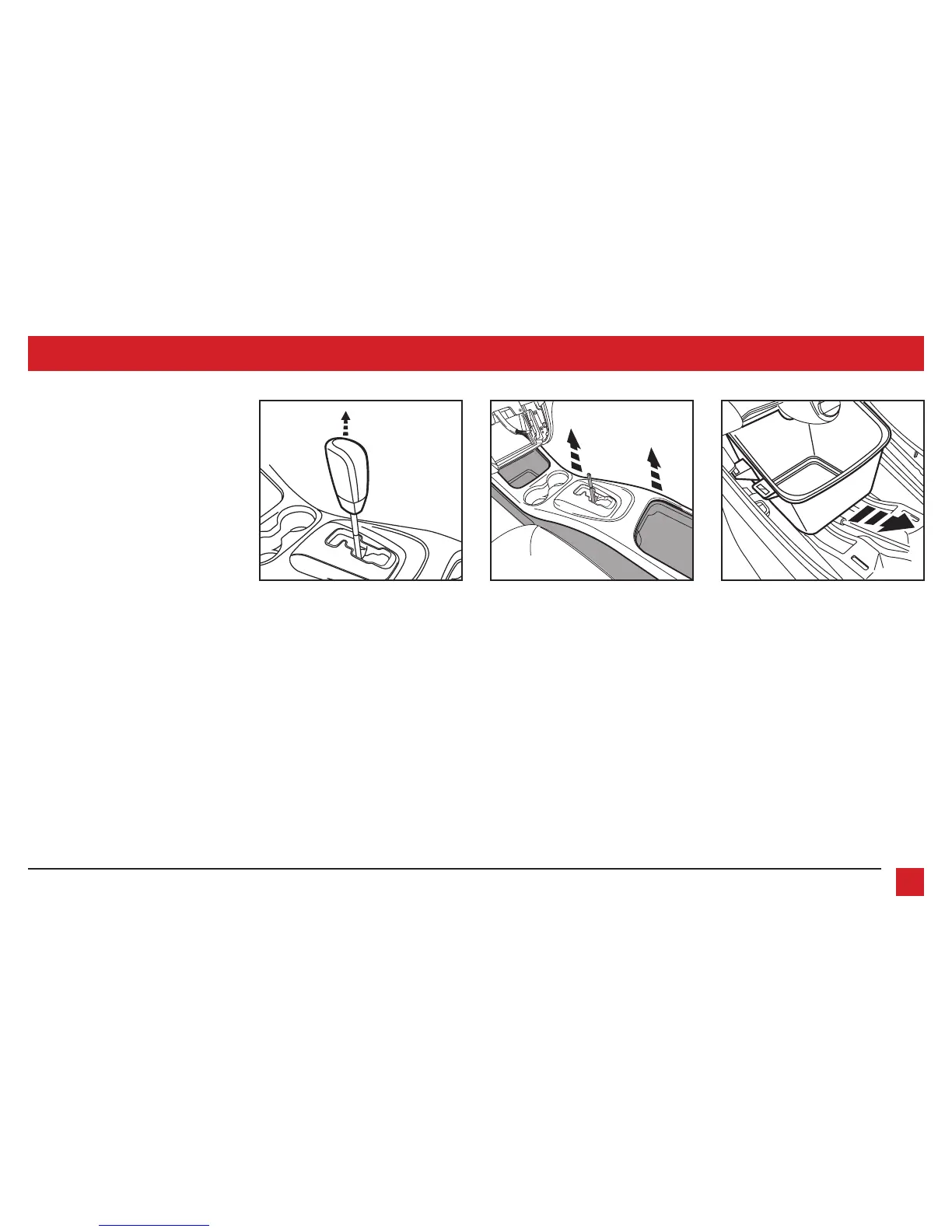

5. Pull up on shift knob to remove.
(Figure D).
6. Unclip and remove the shifter trim panel
including the cup holders from the top
of the center console. (Figure E)
7. Push down and then pull back and out
on the pocket in the front of the console.
Note:
You may need to pull the console
side panels outward at the same time as
pulling out on pocket.
(Figure F)
8. Remove the (2) metal panel clips on the
front side of the pocket and save for
Kit Preparation.
Continue to Kit Preparation
