99-7524B
Manual climate control (continued)

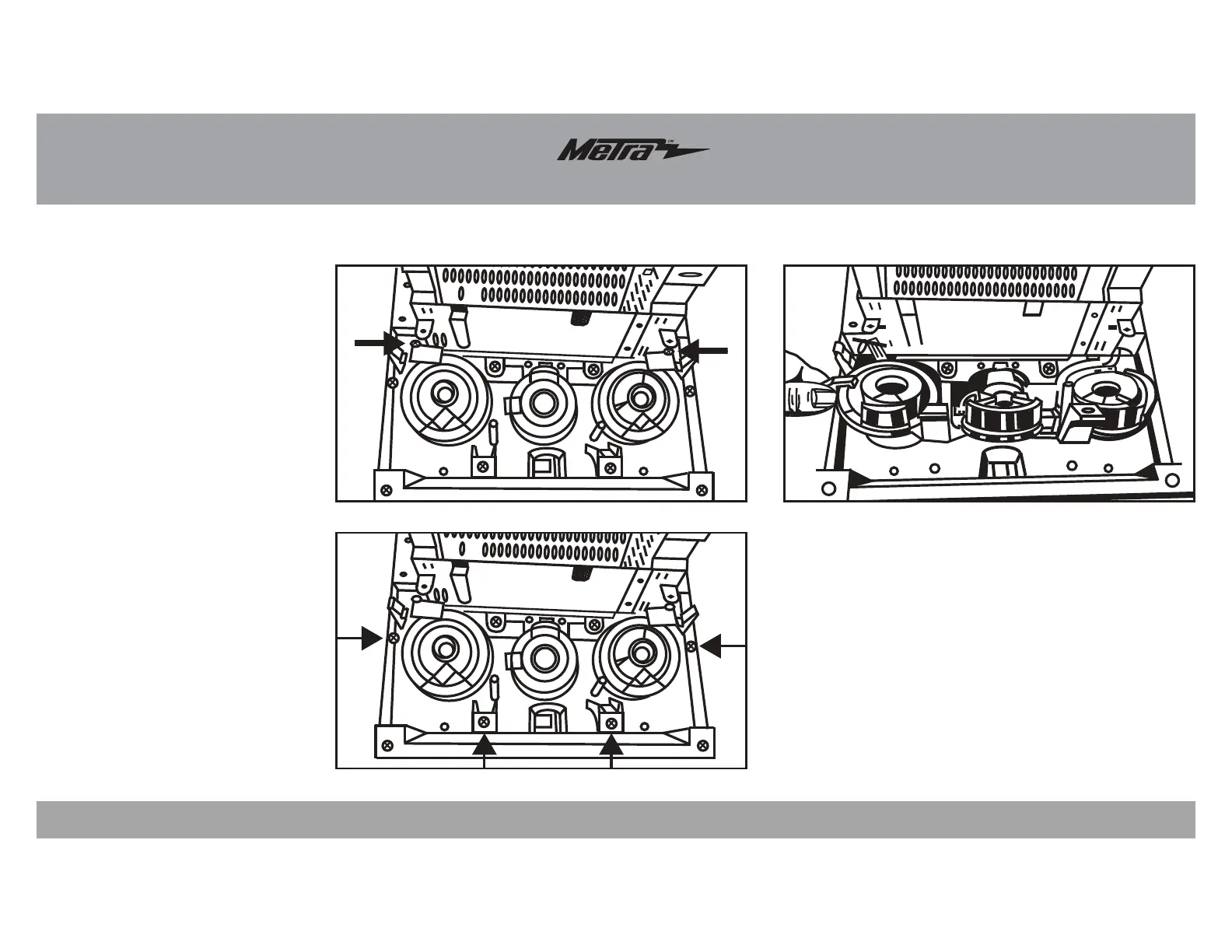

8. Remove the (2) small Phillips
screws securing the light bulb
boards on each side of the
backlight dispersion bar.
Note: Notice how they are
positioned in the backlight
dispersion bar as they will be
placed in the 99-7524B the same
way. (Figure H)
9. Remove (4) Phillips screws
securing backlight dispersion bar
and knob trim bezels. (Figure I)
10. Push the bottom edges of the knob
trim bezels from the front side to
the back and slide both pieces out
as one radio. (Figure J)
Continue to kit preparation
Dash Disassembly
4
(Figure H) (Figure J)
(Figure I)
