DASH DISASSEMBLY
Scion xB 2004-2007

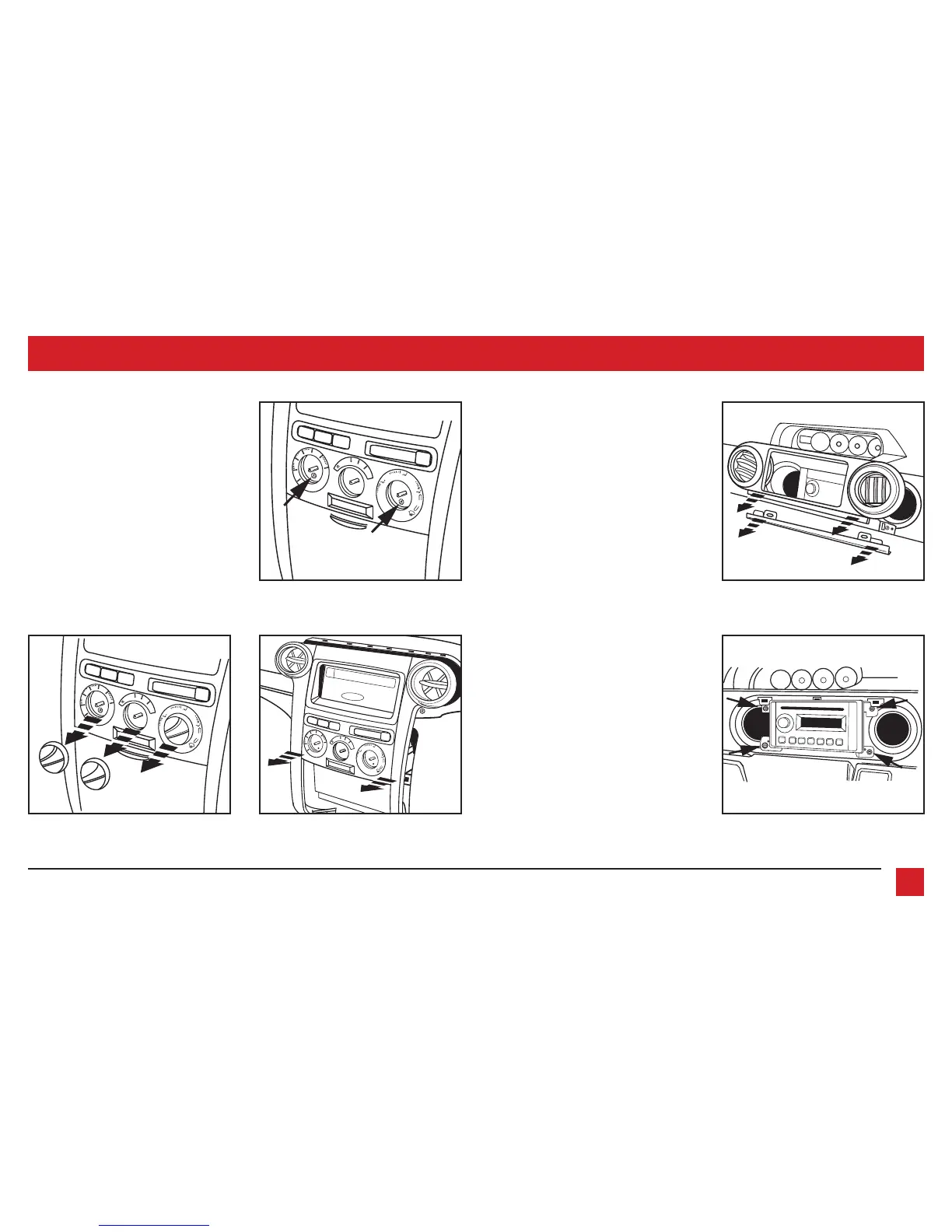

1. Pull outward on the (3) climate control
knobs and remove. (Figure A)
2. Remove (2) Phillips screws from behind
the outer (2) knobs. (Figure B)
3. Unsnap and remove the entire panel
surrounding the climate controls and the
radio. (Figure C)
4. Remove (4) 10mm bolts securing the
radio. Unplug and remove the radio.
Continue to Kit Assembly
(Figure B)
(Figure C)
OFF
HI
OFF
HI
OFF
HI
Scion xB 2008-2015
1. Unclip and remove the trim panel
around the radio including the A/C
vents. (Figure A)
2. Unclip and remove the trim panel at the
bottom edge of the dash cavity. (Figure A)
3. Remove (4) 10mm bolts securing the
radio. Unplug and remove the radio.
(Figure B)
Continue to Kit Assembly
(Figure A)
(Figure B)
(Figure A)
