Metra Electronics 99-8209 - ISO DIN radio provision with pocket

REV. 9/19/2017 INST99-8209
7

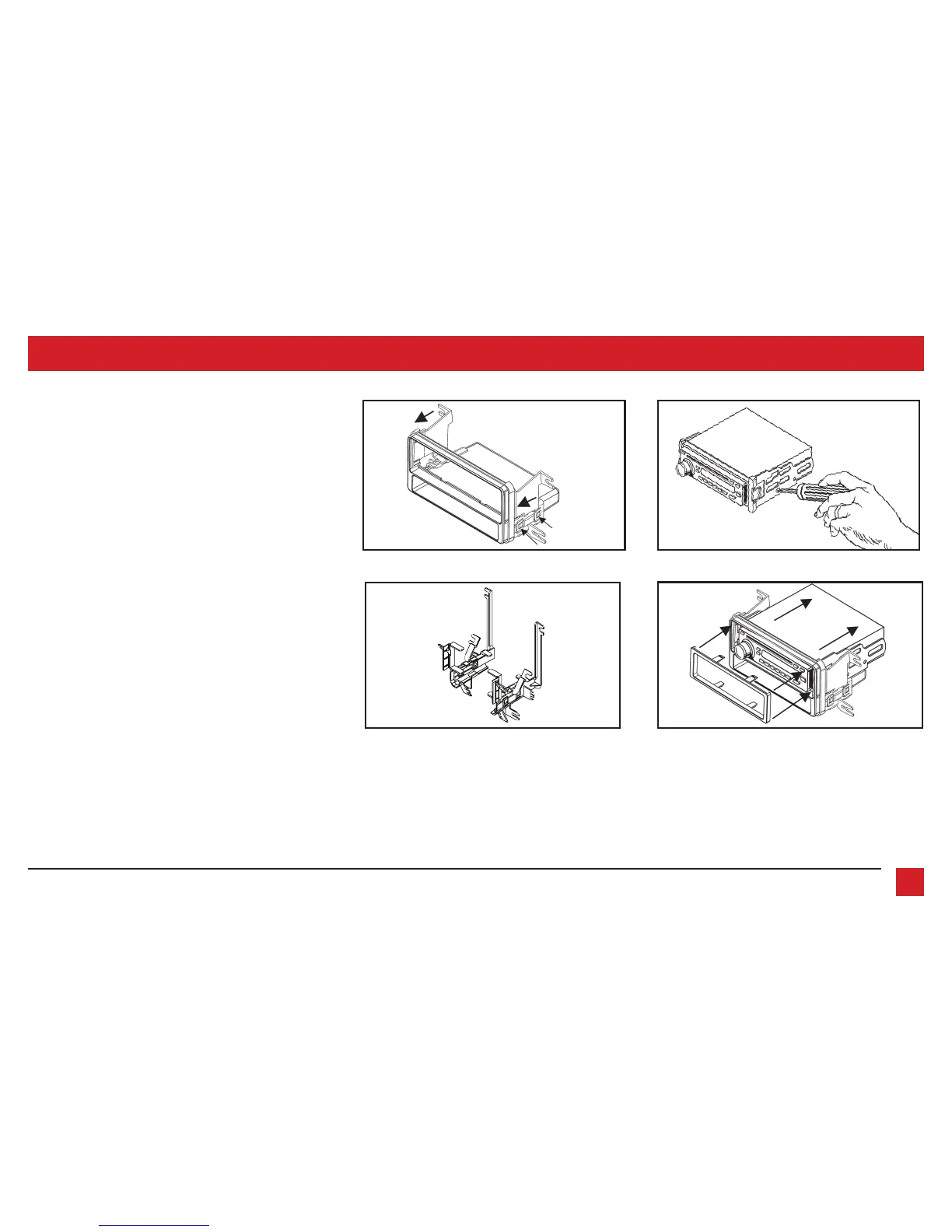

KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Slide the brackets onto the sides of the radio housing until the
side clips engage. (Figure A)
Note: Use bracket set 1 for xA, xB, and tC. Use bracket set 2 for
the 2008 xB and xD.
2. For bracket set 1 cut and remove all mounting tabs except the
tabs being used for your application. (Figure B)
Note: Tabs are marked xA, xB and tC. For bracket set 2 skip to
step 3.
3. Remove the metal DIN sleeve and trim ring from the aftermarket
radio.
4. Secure the ISO brackets to the radio using the screws supplied
with the radio. (Figure C)
5. Slide the radio/bracket assembly into the radio housing until it
snaps into place. (Figure D)
6. Snap the trim plate onto the front of the radio housing . (Figure D)
7. Locate the factory wiring harness and antenna connector in the
dash and complete all necessary connections to the radio. Metra
recommends using the proper mating adapter from Metra and/or
AXXESS. Test the radio for proper operation.
8. Reassemble the dash in reverse order of disassembly.
(Figure C)(Figure A)
side clips
(Figure B)
Bracket Set 1
(Figure D)
