MD9272 Leakage Clamp TRMS Meter with Power Function Description of Functions
17

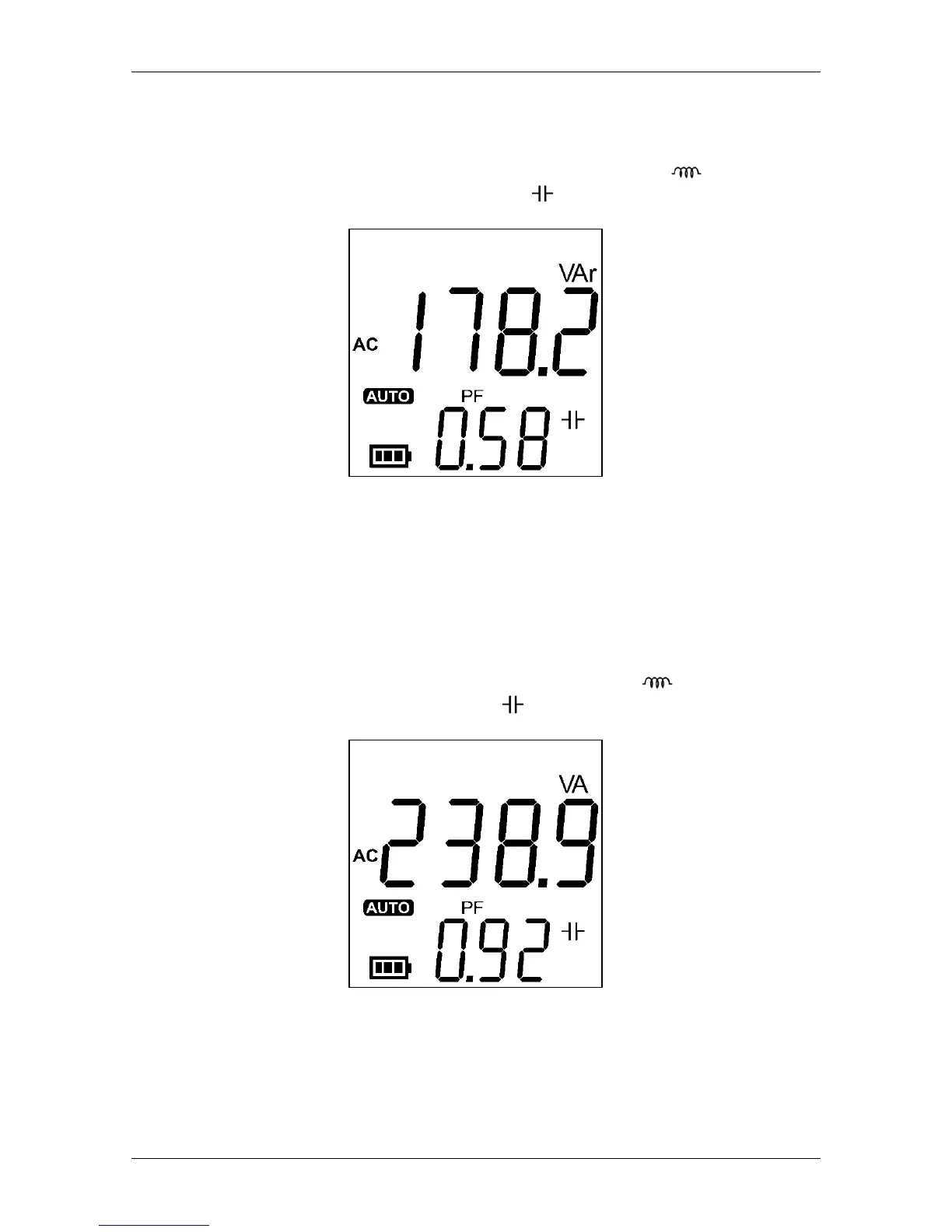

Reactive Power Measurement
In this function the measurement of the reactive power is shown together with the
measurement of the power factor. If the load is inductive, the symbol will appear on
the screen and if the load is capacitive, the symbol will appear on screen.
In this function, the position of the voltage terminals and the jaw is taken into account; the
red terminal should be connected to the line terminal and the jaw should be connected in
such a way that the current flows in the direction indicated on the jaw toward load. In this
mode, data retention and registering of maximum and minimum values is possible by
using the H key.
Apparent Power Measurement
In this function the measurement of the apparent power together with the measurement
of the power factor are shown, if the load is inductive, the symbol will appear on the
screen and if the load is capacitive, the symbol will appear on screen.
In this mode data retention and registering of maximum and minimum values is possible
by using the H key is possible.
