Metrohm 846 Dosing Interface - Figure 3 846 Dosing Interface Rear

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2 Overview of the instrument
846 Dosing Interface
￭￭￭￭￭￭￭￭
9
1
2
3
4
5

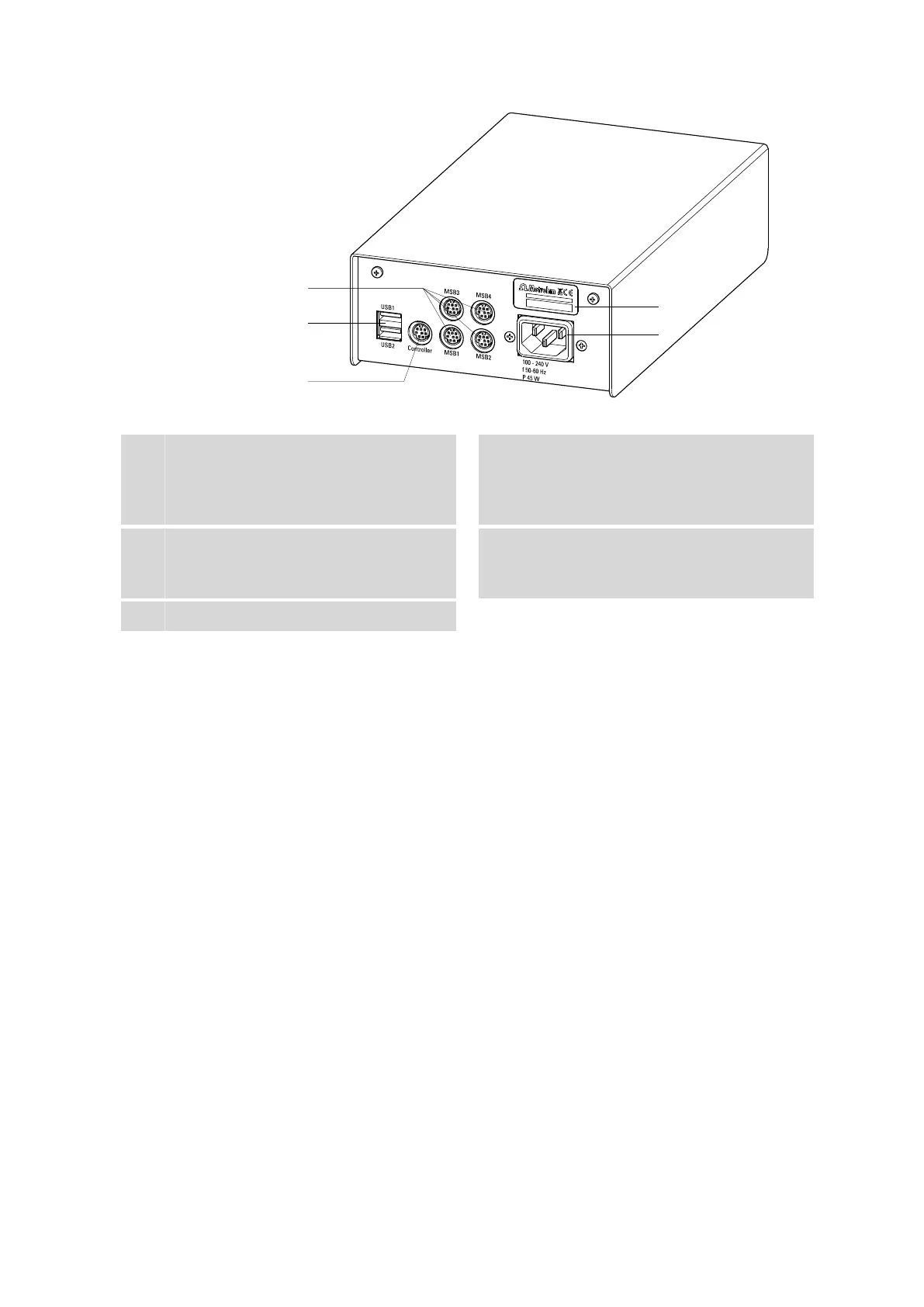

Figure 3 846 Dosing Interface Rear
1
MSB connector (MSB 1 to MSB 4)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or Remote Boxes.
Mini DIN, 9-pin.
2
USB connector (USB 1 and USB 2)
USB ports (type A) for connecting printer,
keyboard, barcode reader, USB Sample Pro-
cessor, etc.
3
Controller connector (Controller)
For connecting Touch Control or PC with
installed PC software. Mini DIN, 9-pin.
4
Type plate
Contains specifications concerning mains
voltage, instrument type and serial number.
5
Mains connection socket
