5 Appendix
846 Dosing Interface
￭￭￭￭￭￭￭￭
25
5 Appendix
5.1 Remote interface
The 6.2148.010 Remote Box allows devices to be controlled which cannot
be connected directly to the MSB interface of the Dosing Interface.
1
2
3

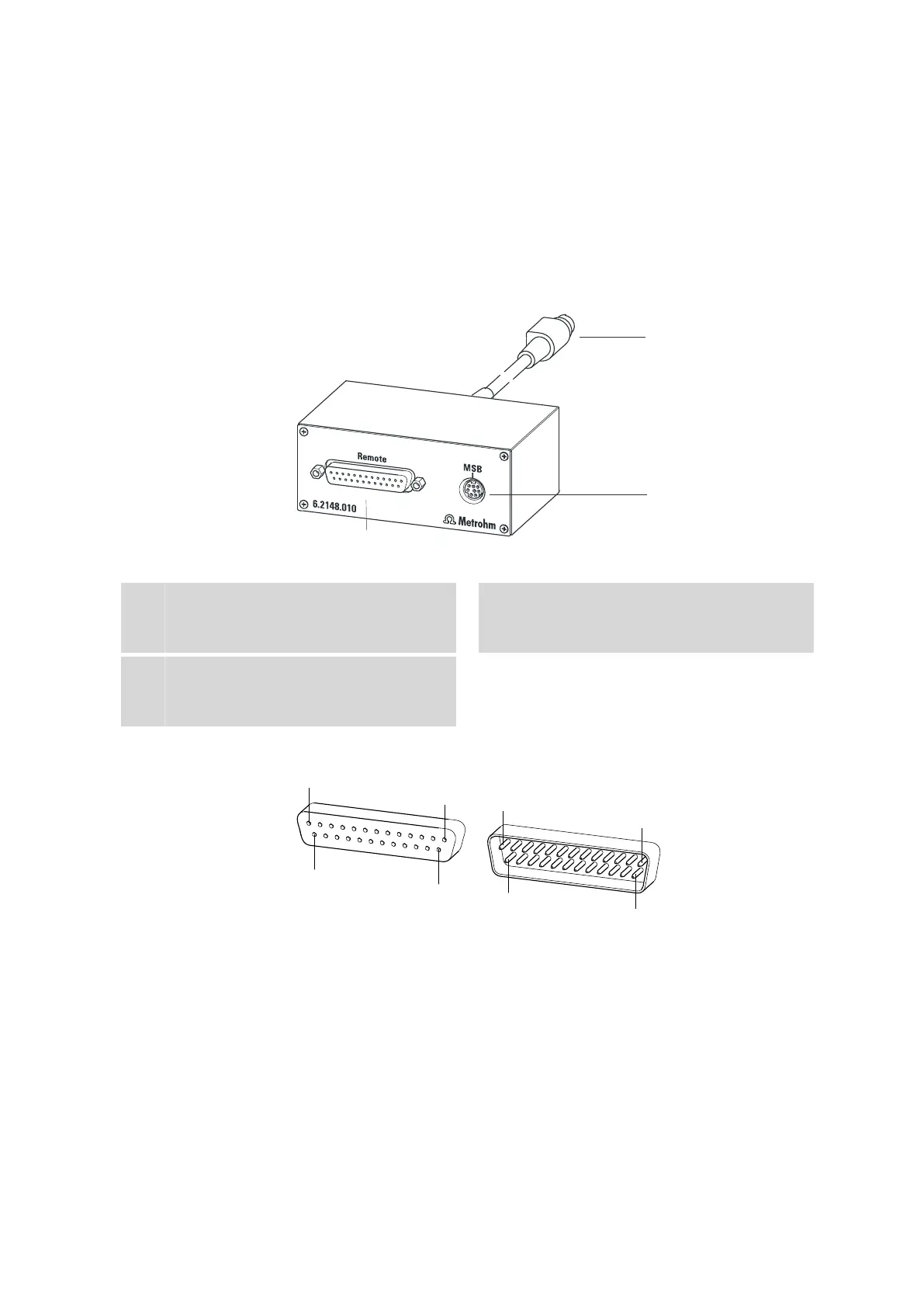

Figure 12 Connectors of the Remote Box
1
Cables
For connecting to an MSB connector of the
Dosing Interface.
2
MSB connector
Metrohm Serial Bus. For connecting external
dosing devices or stirrers.
3
Remote connector
For connecting instruments with a remote
interface.
5.1.1 Pin assignment of the remote interfaces
13
1
14
25
1
13
14
25
Figure 13
Pin assignment of remote socket and remote plug
The above figure of the pin assignment of a Metrohm remote interface
does not only apply for the Remote Box, but also for all Metrohm devices
with 25-pin D-Sub remote connectors.
