5.4 Connecting sensors
■■■■■■■■■■■■■■■■■■■■■■
18
■■■■■■■■
917 Coulometer
2
Tighten the 6.2104.120 electrode cable to the generator electrode.

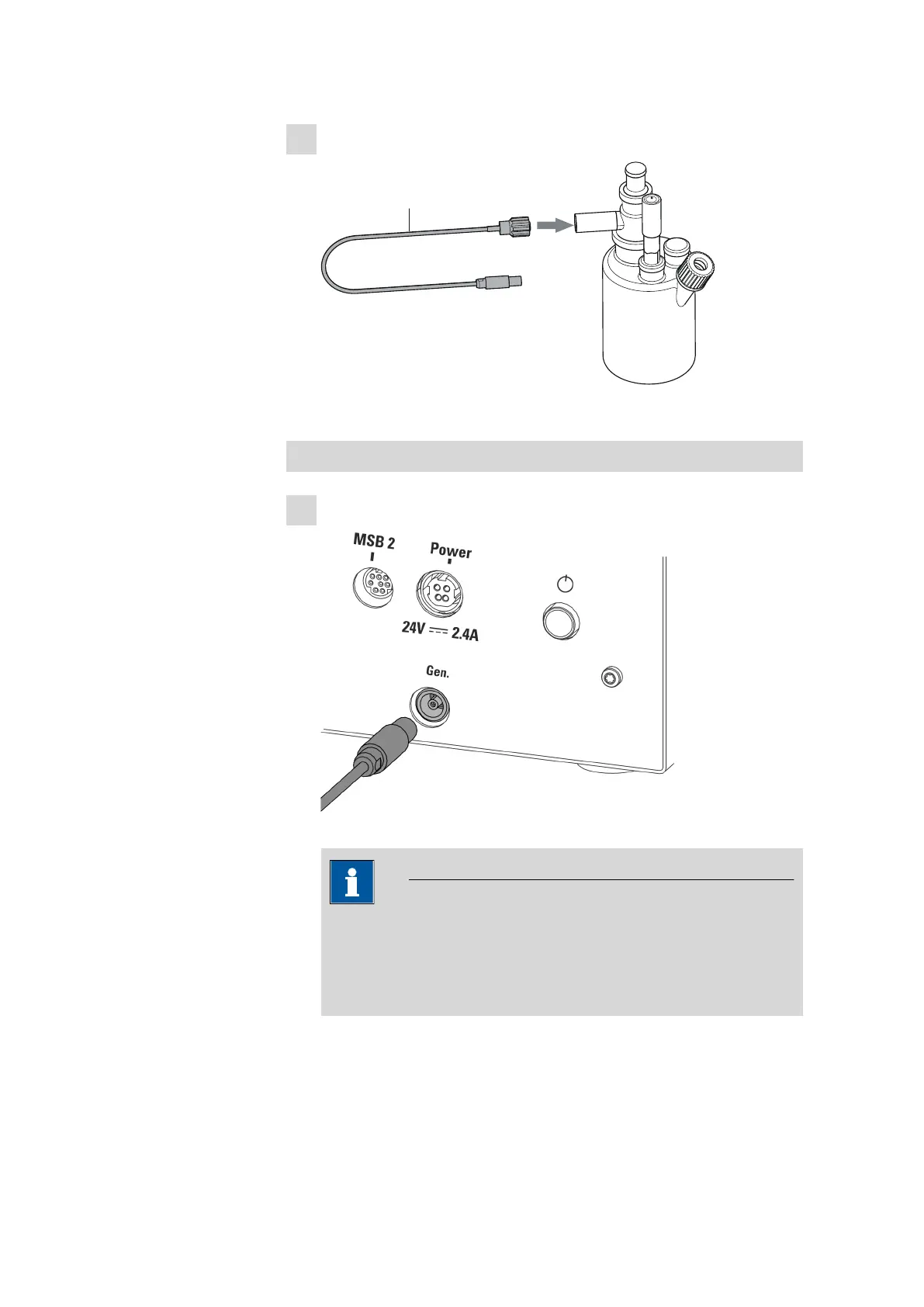

Figure 7 Screwing the electrode cable to the generator electrode
Connecting the electrode cable to the coulometer
1
Plug the electrode plug into the Gen. socket of the coulometer.
Figure 8 Connecting a generator electrode
NOTE
The electrode cable is protected against accidental disconnection
of the cable by means of a pull-out protection. If you wish to pull
out the plug again, you first need to pull back the outer plug
sleeve.
