Insert new module for the Autolab 8-Series
15 | Page

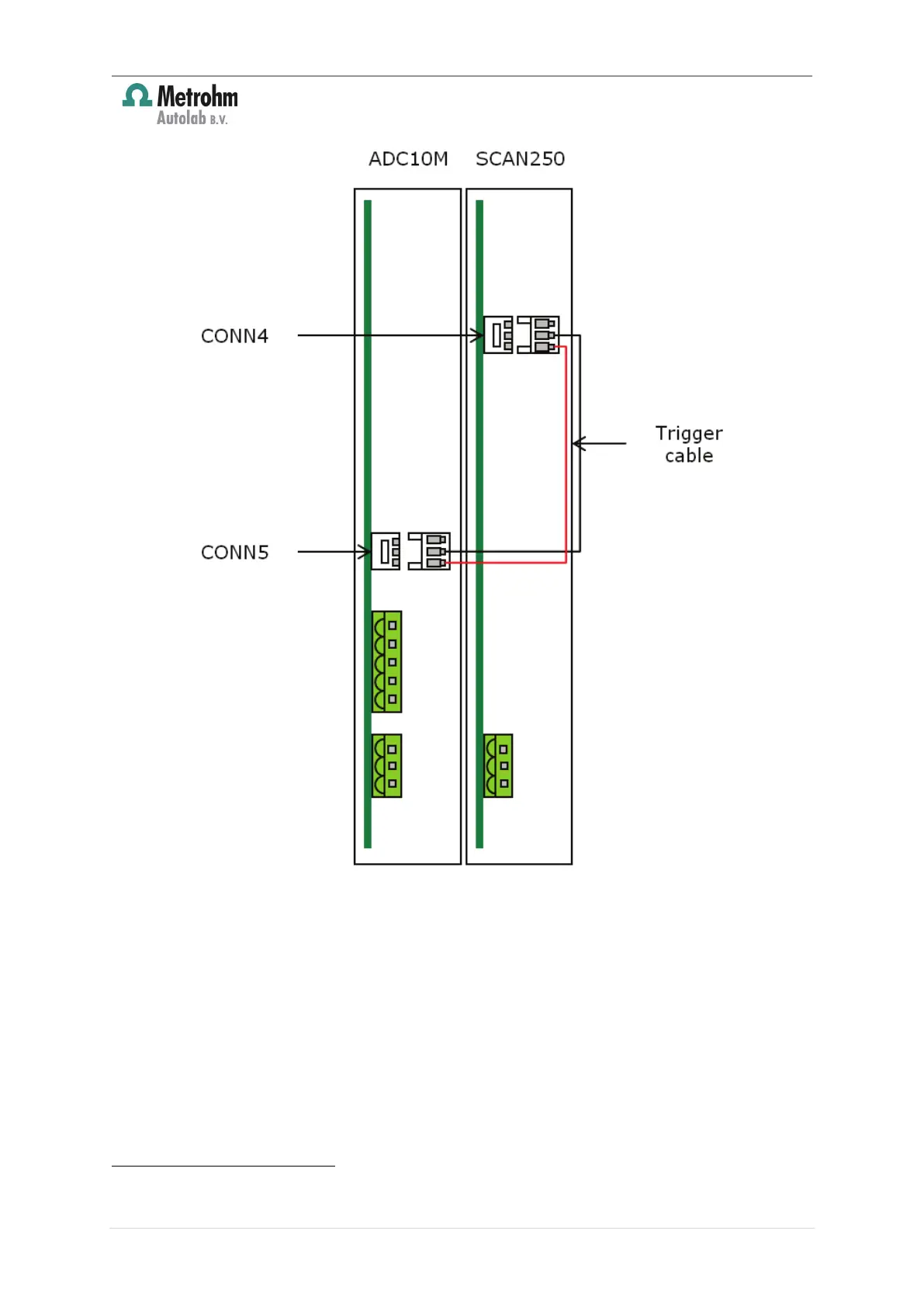

Figure 14 – The trigger cable must be installed between the SCAN250 and the ADC10M
Locate CONN5 on the ADC10M and CONN4 on the SCAN250 and connect both with the
supplied trigger cable
2
.
The ADC10M/SCAN250 combination can be tested using Nova (version 1.2 or higher), as
explained in Section 14 of this document.
Note: the ADC10M/SCAN250 combination is NOT supported in the GPES software.
2
Other combinations are possible: ADC10M/SCANGEN or ADC750/SCAN250.
