4
1.4 Markings
The Local Control Panel is equipped with an identification
plate (Fig. 2 or 3).
1.5 Technical specifications
VG9000H compatibility
Compatible with VG9_H_L2_ versions.
See the VG9000H type coding for further details of different
VG9000H versions.
Temperature range
LCP9H,
LCP9HW -20° to +65 °C
LCP9HE,
LCP9HEW -20° to 55 °C
(equipped with sunshade to comply higher amb. temp.
requirements, see page10)
Electronics
Electrical connection:
max. 2.5 mm
2
LCP9H
LCP9HW 2 pcs. conduit entry, dia. 21 mm, cable glands
for cable with with ext. dia. 8-12 mm included
LCP9HE
LCP9HEW 2 pcs. conduit entry, M20x1.5
Power consumption:
400 mW
Power supply: 11–24 V DC, 50 mA
Output is short circuit protected
Maximum distance for power supply:
1200 m
Ex ia IIC T4/T5/T6 Gb
Input values for the power supply:
Ui 25.2 V
Ii 150 mA
Pi 650 mW
Ci 30 nF
Li 252 μH
Output values for the communication interface:
Uo 9.8 V
Io 47 mA
Po 120 mW
Co 3.3 μF
Lo 15 mH
Ex ic IIC T4/T5/T6
Input values for the power supply:
Ui 25.2 V
Ii 150 mA
Pi 650 mW
Ci 25 nF
Li 201 μH
Output values for the communication interface:
Uo 8.8 V
Io 42 mA
Po 93 mW
Co 45 μF
Lo 45 mH
Ex d IIB+H2 T6 Gb
Ex tb IIIC T85 °C Db IP65
Input values for the power supply:
Ui 25.2 V DC
Ii 50 mA
Pi 1.26 W
Output values for the communication interface:
Uo 8.8 V DC
Io 42 mA
Po 0.37 W
ATEX and IECEx approvals are valid under these conditions.
Compatible isolators for power supply
MTL 5021
P&F KFD0-SD2-Ex1.1045
STAHL 9176/.0-14-0
ABB V17132-520
Communication cable
The communication cable between LCP9H and VG9000H
must be a shielded, twisted pair, 4-wire cable. The shield
must be connected to housings in both ends. The maxi-
mum distance between VG9000H and LCP9H is 60 m.
Cable requirements:
Signals and corresponding ground wires twisted
Wire thickness min. 0.8 mm
Shield coverage > 85 %
Test voltage > 1500 V (Ex requirement)
Resistance < 50 Ω/km
Capacitance < 50 pF/m

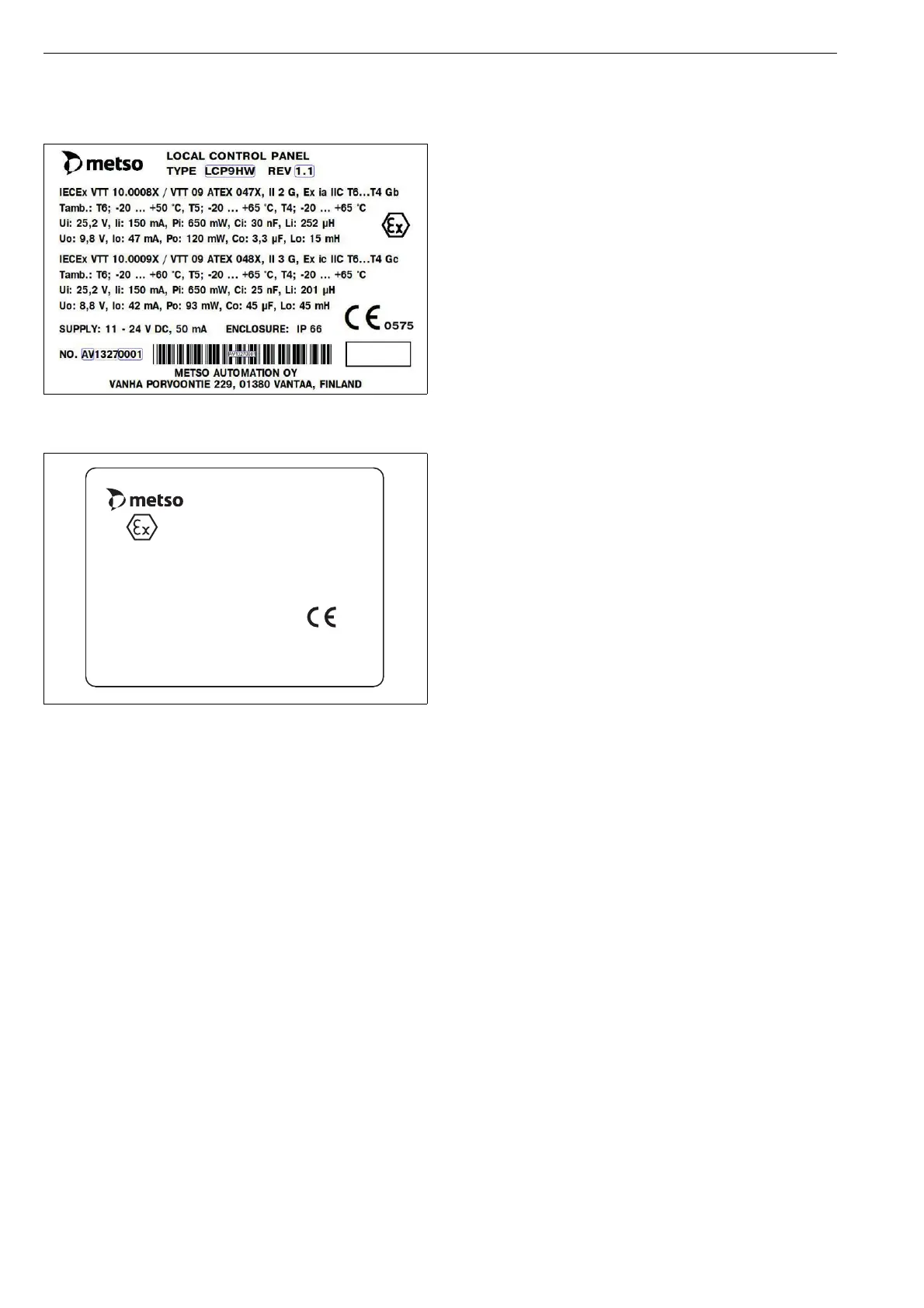

Fig. 2 Example of identification plate,
LCP9H and LCP9HW
Fig. 3 Example of identification plate,
LCP9HE and LCP9HEW
Metso Automation Oy, Vanha Porvoontie 229, 01380 Vantaa Finland
II 2GD
LOCAL CONTROL PANEL
Type LCP9HE Rev 1.0
0575
SIRA 11 ATEX 1170
IECEx SIR 11.0078
Ex d IIB+H2 T6 Gb
Ex tb IIIC T85°C Db IP65
Ta -20 - +55°C
Supply: 11-24 VDC, 50 mA, Ui = 25 VDC
Cable entry -M20
