CHAPTER 6: MOUNTING CAL LOUDSPEAKERS
CAL comes standard with adjustable brackets that allow it
to be mounted on walls or columns.
NOTE: Before mounting CAL, make sure to
allow for the necessary cable runs to its audio
sources, power source, host computer, and any
control devices or switches you intend to use.
IMPORTANT SAFETY CONSIDERATIONS!
When installing Meyer Sound loudspeakers, the following
precautions should always be observed:
• All Meyer Sound products must be used in accordance
with local, state, federal, and industry regulations. It is
the owner’s and user’s responsibility to evaluate the
reliability of any rigging or mounting method for their
application. Rigging should only be carried out by
experienced professionals.
• Use mounting and rigging hardware that has been rated
to meet or exceed the weight being hung.
• Make sure to attach mounting hardware to the building's
structural components (studs or joists), and not just to
the wall surface. Verify that the building's structure and
the anchors used for the installation will safely support
the total weight of the mounted loudspeakers.
• Use mounting hardware appropriate for the material
where the loudspeaker will be installed.
• Make sure bolts are tightened securely. Meyer Sound
recommends using Loctite
®
on bolt threads.
• Inspect mounting and rigging hardware regularly.
Immediately replace any worn or damaged components.
CAL WALL MOUNT BRACKETS
CAL comes standard with wall mount brackets that include
the following components.

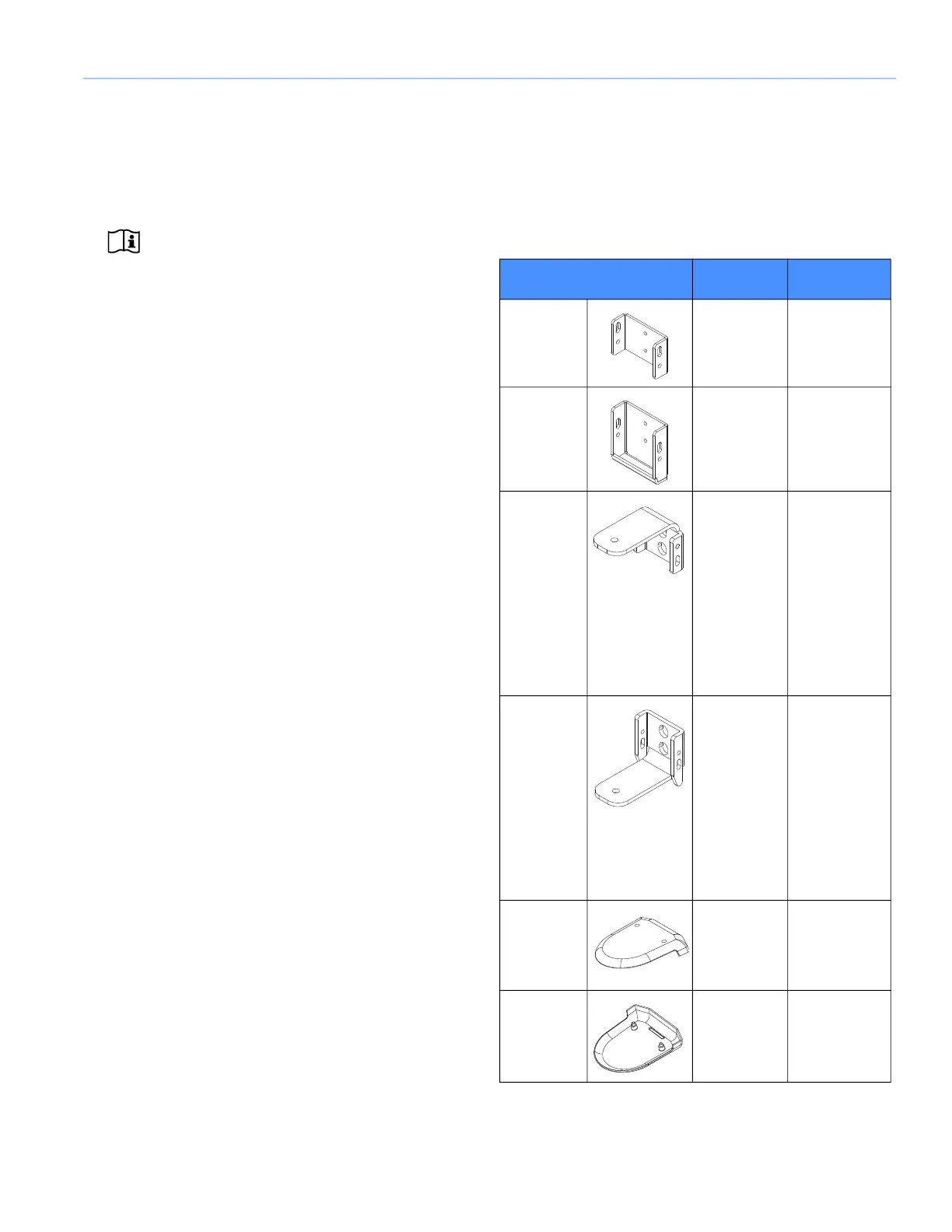

CAL Wall Mount Bracket Components
Item Part
Number
Fasteners
Included?
Wall Mount
Plate
(Top)
64.210.018.01
(Black)
64.210.018.02
(White)
No
(Use fasteners
appropriate for
wall material)
Wall Mount
Plate
(Bottom)
64.210.031.01
(Black)
64.210.031.02
(White)
No
(Use fasteners
appropriate for
wall material)
Loudspeaker
Bracket
(Top)
64.210.015.01
(Black)
64.210.015.02
(White)
Required Parts:
119.060,
119.059,
113.043,
116.028,
109.051,
101.349 X 2 (for
ONE end)
101.522 X 2 (for
ONE end),
115.025 X 2 (for
ONE end)
Loudspeaker
Bracket
(Bottom)
64.210.032.01
(Black)
64.210.032.02
(White)
Required Parts:
119.060,
119.059,
113.043,
116.028,
109.051,
101.349 X 2 (for
ONE end)
113.522 X 2 (for
ONE end),
115.025 X 2 (for
ONE end)
End cap
(Top)
60.210.012.01
(Black)
60.210.012.02
(White)
Required Parts:
101.562 X 2 (for
ONE end),
119.061 X 2 (for
ONE end)
End cap
(Bottom)
60.210.013.01
(Black)
60.210.013.02
(White)
Required Parts:
101.562 X 2 (for
ONE end),
119.061 X 2 (for
ONE end)
