Meyer Sound CAL 96 User Manual

CHAPTER 6: MOUNTING CAL LOUDSPEAKERS
34

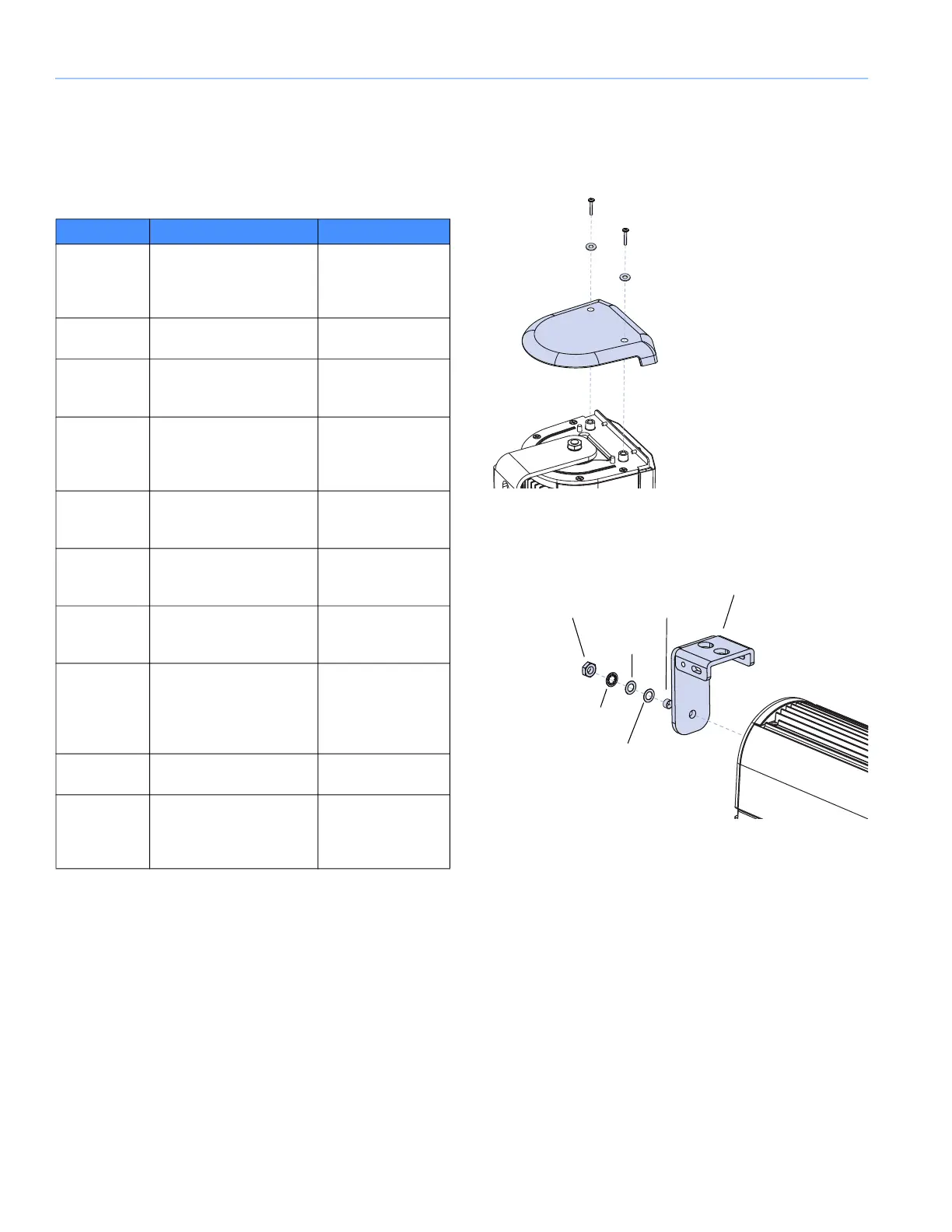

INSTALLATION OF SINGLE POINT HANG KIT
Please verify presence of all kit components (Table 1) before
beginning the install procedure.
Installation Steps
1. Remove both screws and sealing washers from the
dress cap and set aside.
2. Remove the hex nut, washers, and bushing securing the
wall bracket to the loudspeaker. Remove the bracket.
Table 1: Single Point Hang Rigging Kit Contents
Part Number Description Quantity
67.210.094.01 1-inch diameter Neoprene
Gasket, 3/16-inch thick for
attaching single point hang
(SPH) bracket to CAL
1
45.210.230.01 Single Point Hang Rigging
Assembly
1
109.051 Thin Hex Nut, 1/2-inch-13,
stainless steel for attaching
SPH bracket to CAL
1
113.043 Washer, 0.88-inch outside
diameter, 0.02-inch thick,
stainless steel
2
(1 for eye bolt,
1 for attaching SPH
bracket to CAL)
119.061 Washer, sealing, #10,
stainless steel for attaching
SPH bracket to CAL
1
119.060 Teflon Bushing, 0.50-inch x
0.56-inch to cover stud on
CAL
1
124.144 Eye bolt, Shoulder,
1/2-inch-13 x 1.5-inch,
2400 WLL
1
109.053 Hex Nut,
1/2-inch-13 X 7/8-inch
wide, 31/64 inches high,
stainless steel for attaching
eye bolt
1
124.145 Shackle, Screw, 3/8-inch,
2000 WLL
1
640.096 Threadlocker, Medium
Strength, Removable, for
eye bolt and SPH bracket/
bolt
1
Lock
washer
Hex nut
Steel flat
washer
Nylon flat
washer
Bushing
Bracket
