Meyer Sound CAL 96 - Single Point Hang Rigging Kit

CAL OPERATING INSTRUCTIONS
33
• Align the bottom end cap (the one with the drainage
slot) with the bottom screw holes and secure the end
cap with the included 10-32 x1-inch pan head screws
and washers.

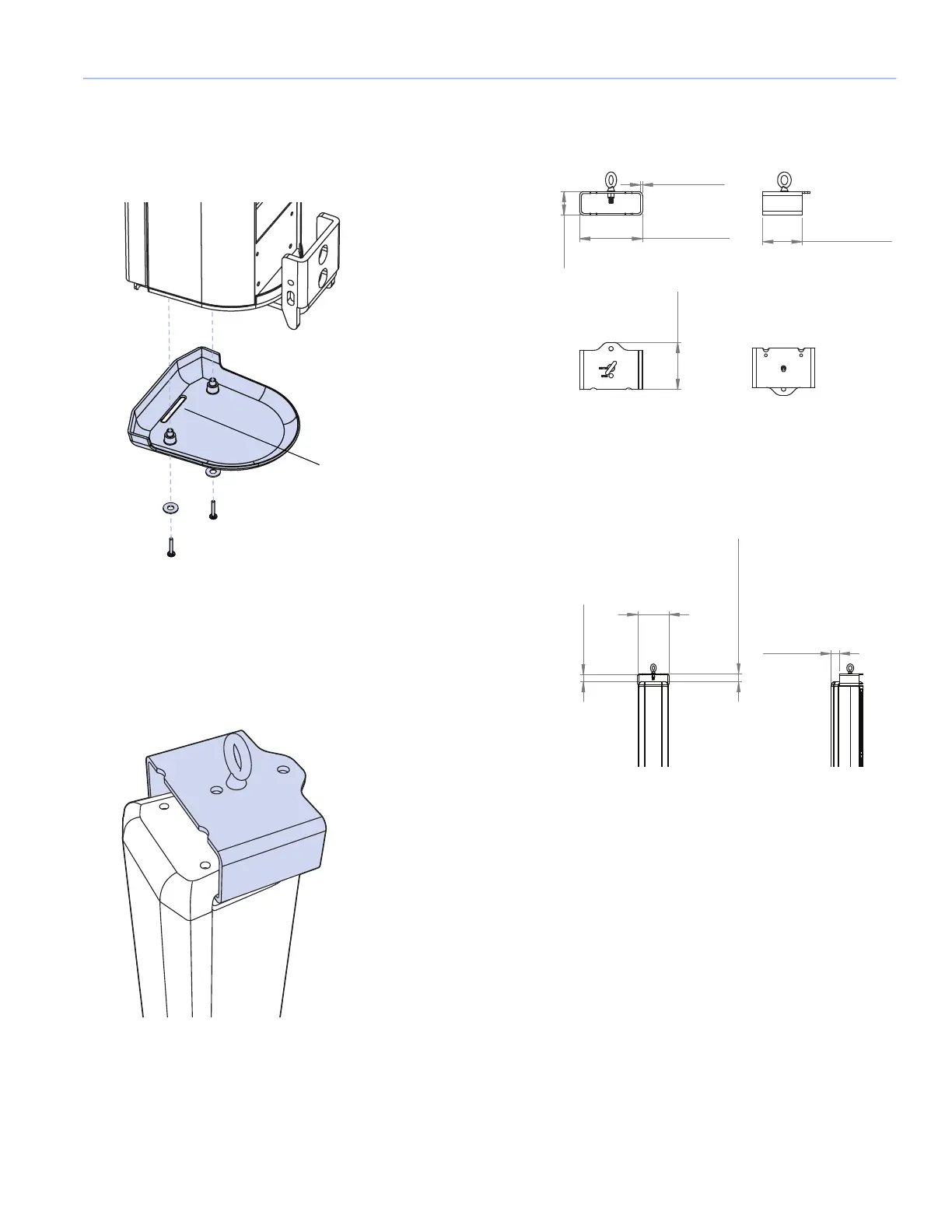

SINGLE POINT HANG RIGGING KIT
Meyer Sound offers an optional single point hang rigging kit
(PN 40.210.230.01) for applications where hanging a CAL
loudspeaker is desirable.
Drainage slot
10-32 x 1-inch pan head screws
and washers
8.00 in
[203 mm]
3.00 in
[76 mm]
0.25 in
[6 mm]
5.00 in
[127 mm]
6.00 in
[152 mm]
Front
Right
BottomTop
Single Point Hang Bracket Dimensions
2.00 in
[51 mm]
1.75 in
[44 mm]
8.00 in
[203 mm]
2.12 in
[54 mm]
Front Right
