12

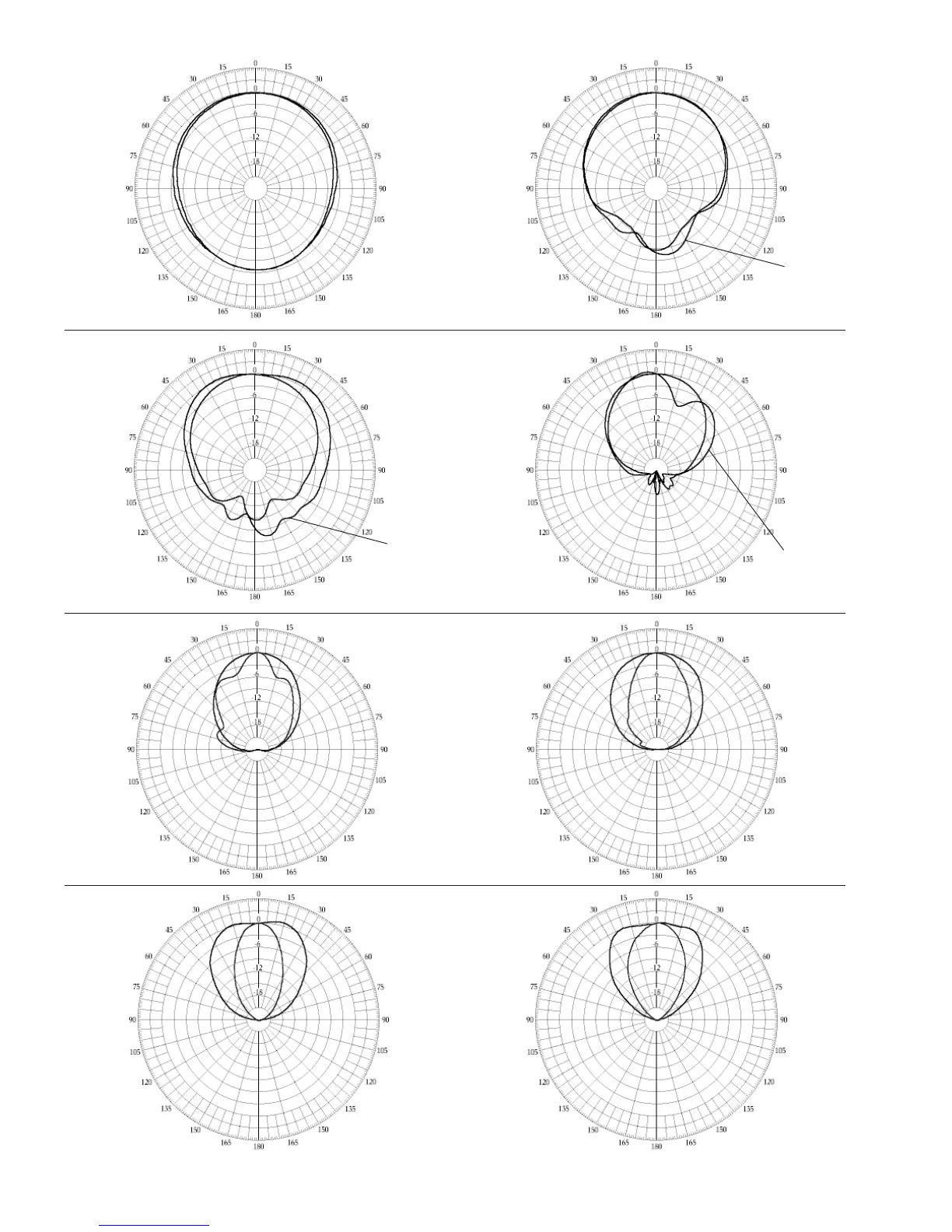

CQ-1: 125 Hz
CQ-1: 250 Hz
CQ-1: 1 kHzCQ-1: 500 Hz
CQ-1: 4 kHzCQ-1: 2 kHz
CQ-1: 8 kHz CQ-1: 16 kHz
vertical
vertical
vertical
CQ-1 Polar Plots
Inner plot is vertical unless
otherwise indicated.
