13
CQ-2: 4 kHzCQ-2: 2 kHz
CQ-2: 125 Hz
CQ-2: 1 kHzCQ-2: 500 Hz
CQ-2: 250 Hz
CQ-2: 8 kHz CQ-2: 16 kHz
vertical
vertical
vertical

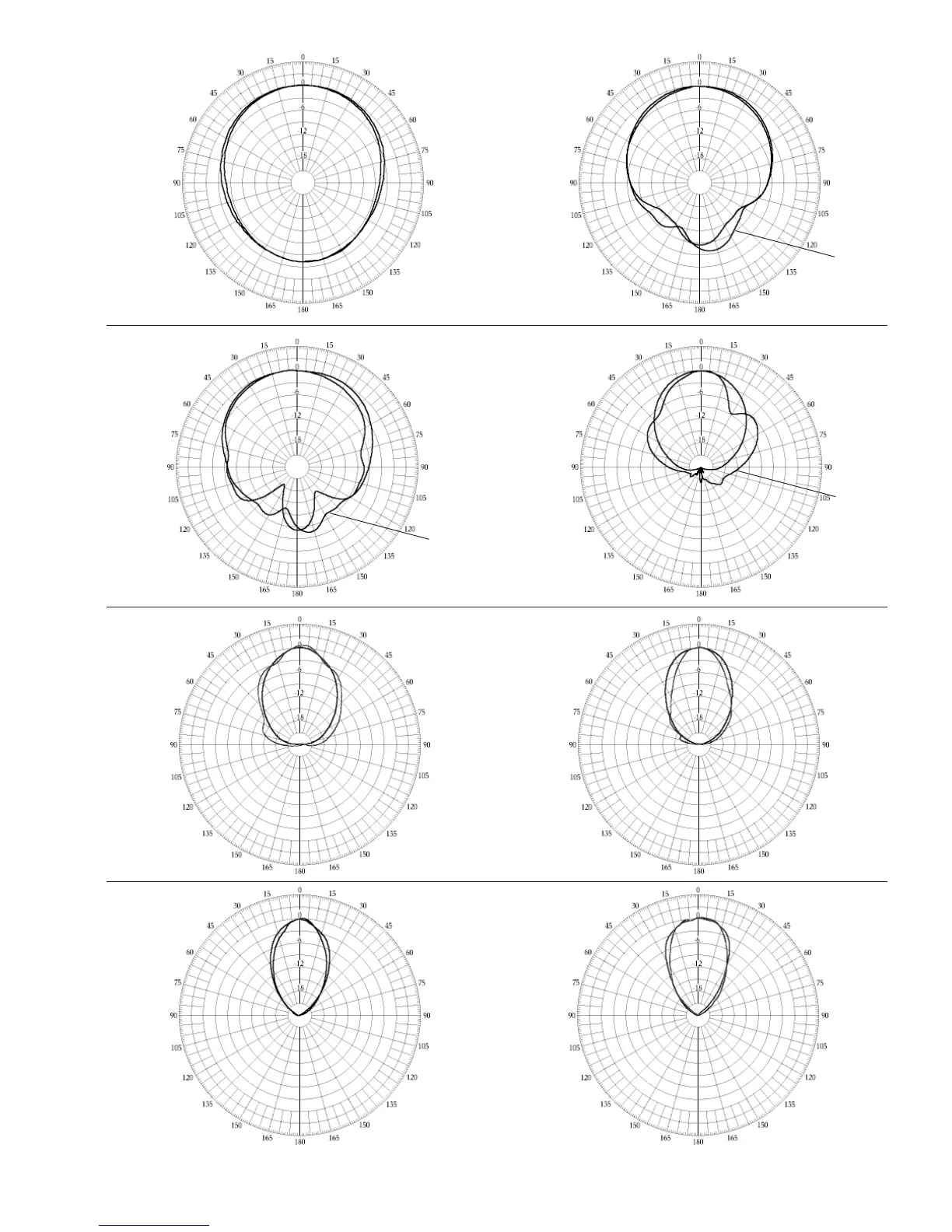

CQ-2 Polar Plots
Inner plot is vertical unless
otherwise indicated.
