CHAPTER 3: CONNECTING RMS NETWORKS
26
Ethernet and Twisted-Pair Hybrid System (Large Venue Applications)
For larger venues such as theatres, stadiums, arenas,
hotels, and theme parks, systems using multiple RMServers
are preferred for increased network speed.
In large systems, long cable runs can be required from an
RMServer to the loudspeaker locations. One or more FTR-
120 repeaters can be incorporated to extend the maximum
cable run length. This forms a hybrid network of twisted-pair
and Ethernet cabling.

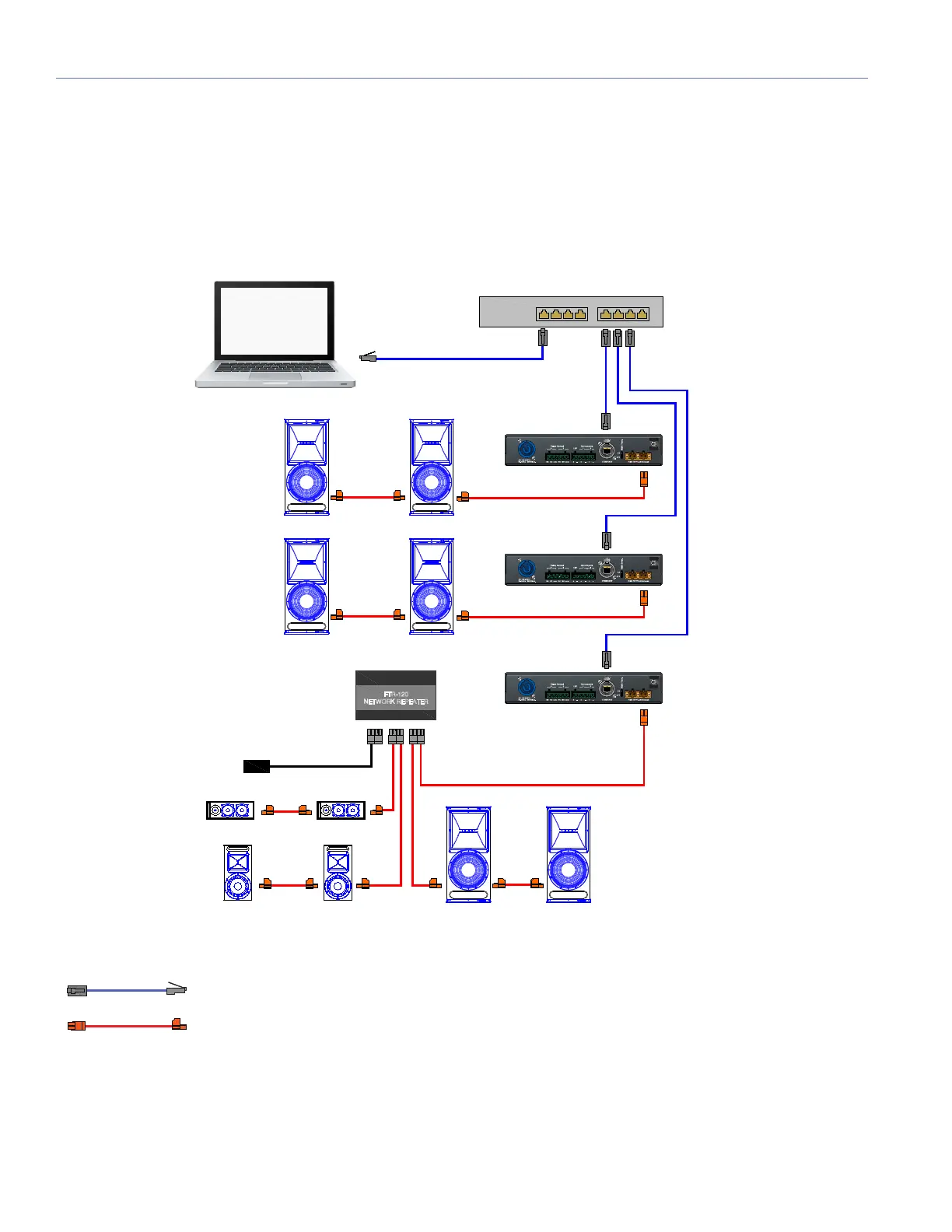

Figure 6: A large system using an FTR-120 repeater.
FTR-120
NETWORK REPEATER
12V D/C
Power Supply
RMS looped to loudspeakers
Compass Control
Software
Mac or Windows
Repeater is required when
cable length exceeds 1640 feet
CAT 5E or Better Network Cable
RMS FT-10 Twisted Pair Network Cable
BeldenĀ® 8205
