Star Topology with Low Voltage Systems and Junction Point
The MPS-488HP power supply is used in low-voltage sys-
tems. It is important to note that each MPS-488HP con-
sumes four RMS nodes, regardless of how many
loudspeakers are actually connected to it. The junction point
illustrates the flexibility of a free topology network.

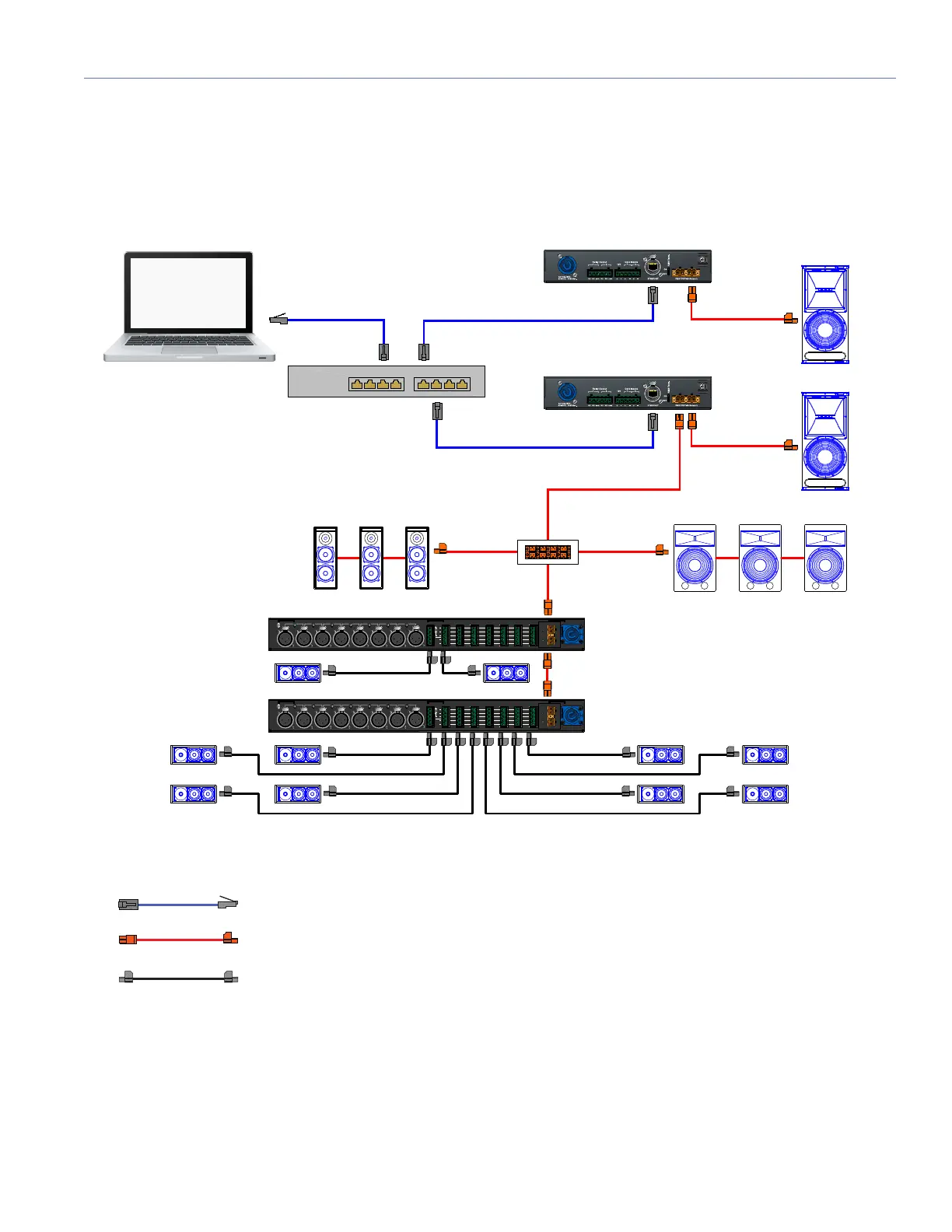

Figure 7: A large system using a junction box and multiple MPS-488HPs. All junction point output ports are in parallel.
Compass Control
Software
Mac or Windows
Custom RMS Hub or
Junction Point
MPS-488HP = 4 RMS network nodes
MPS-488HP = 4 RMS network nodes
Network Switch
AC INPUT
100--240V
~
60 Hz 830W MAX
EACH OUTPUT: 48VDC 96VA MAX. WARNING: Risk of Fire or Electric Shock. Do not interconnect output terminations.
LINK
IN 8IN 7IN 6IN 5IN 4IN 3IN 2IN 1
1 GND
2 +
3 --
AUDIO
PUSH
PUSHPUSHPUSHPUSHPUSHPUSHPUSH
OUT 8OUT 7OUT 6OUT 5OUT 4OUT 3OUT 2OUT 1
NOTE: NEC ANSI/NFPA 70 Class 2 Wiring may be used
48 VDC
+
--
S
+
--
AUDIO
RMS Network
Identity
Wink
Activity
AC INPUT
100--240V
~
60 Hz 830W MAX
EACH OUTPUT: 48VDC 96VA MAX. WARNING: Risk of Fire or Electric Shock. Do not interconnect output terminations.
LINK
IN 8IN 7IN 6IN 5IN 4IN 3IN 2IN 1
1 GND
2 +
3 --
AUDIO
PUSH
PUSHPUSHPUSHPUSHPUSHPUSHPUSH
OUT 8OUT 7OUT 6OUT 5OUT 4OUT 3OUT 2OUT 1
NOTE: NEC ANSI/NFPA 70 Class 2 Wiring may be used
48 VDC
+
--
S
+
--
AUDIO
RMS Network
Identity
Wink
Activity
CAT 5E or Better Network Cable
RMS FT-10 Twisted Pair Network Cable
Belden® 8205
Composite Multiconductor Cable
Belden® 1502
