CHAPTER 4: HP/MP RMS MODULE
30

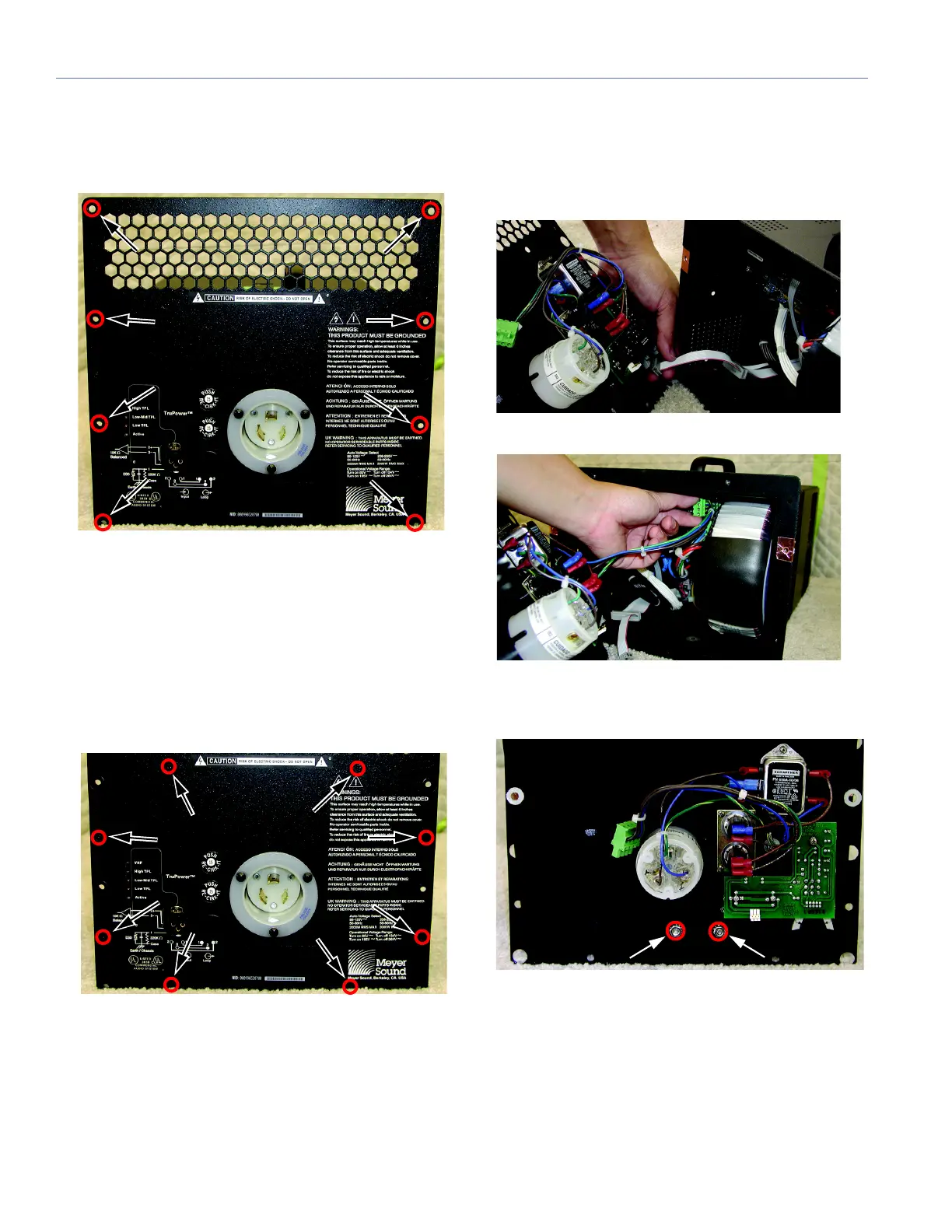

2. To remove the amplifier from the loudspeaker cabinet:
■ Remove the eight large screws that secure the amplifier
to the cabinet.
■ Remove the amplifier from the cabinet slowly, taking care
to unplug the green loudspeaker connector on the top
side of the amplifier (there are two connectors for the
four-channel amplifiers).
■ Place the amplifier on a flat surface that is stable, clean,
and low-static.
3. To remove the user panel from the amplifier:
■ Remove the eight small screws from the user panel.
■ While carefully removing the user panel, disconnect from
the user panel the signal cable from the input board (with
the gray connector), and disconnect from the AC mains
board the AC input cable (4-wire, green connector) from
the user panel.
4. Remove the blank cover plate from the user panel by
removing the two nuts on the back of the user panel.
5. In the power supply chassis, locate the back right screw
hole (next to the transformer) on the floor of the chassis.
If the paint around the hole has not been sufficiently
removed (to allow for metal-to-metal contact with the
