DISASSEMBLY - E-78 & E-88

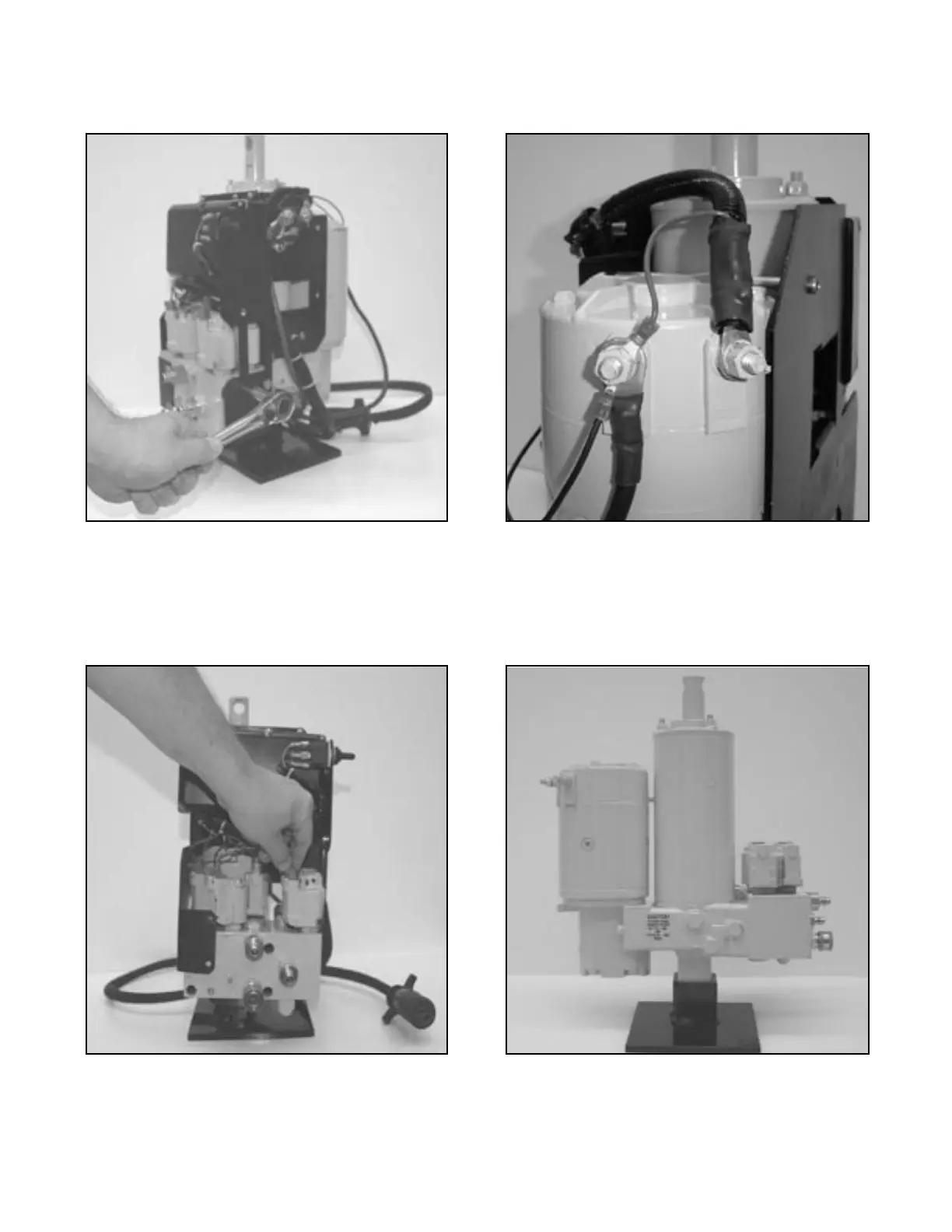

FIGURE 3-7
Remove two 1/4” bolts using a 7/16” Socket or wrench.
Retain Spacer Plate between bracket and block.
FIGURE 3-8
Using a 1/2” Socket or Wrench remove the two bolts holding
the positive and negative wires to the motor.
FIGURE 3-9
Gently pull up on electronic framing until coil wire plugs are
accessible. Remove all coil wire plugs. (E-88 will have five
and the E-78 will only have three coil wire plugs)
FIGURE 3-10
Now both the E-78 and E-88 hydraulic units are
accessible.
-41-
