-69-

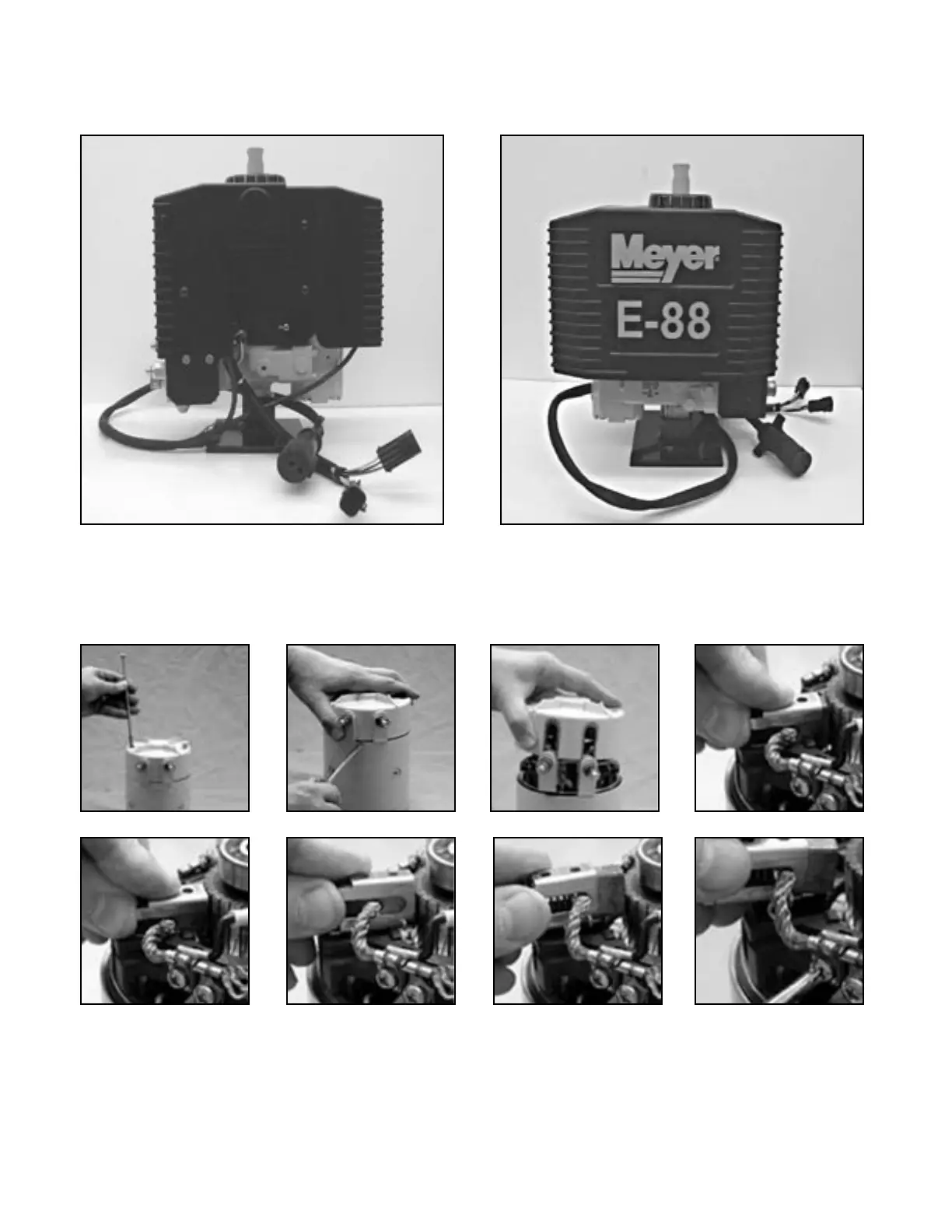

FIGURE 3-120
Remove motor from hydraulic unit. Remove top cap from motor housing. To replace brushes (part # 15854) start by pushing
each brush assembly towards the commutator. Remove old assembly from the insulated mounting plate, removing retaining
screws. Replace with a new brush assembly by reversing the above procedure. It is recommended that each brush be changed
in turn to avoid confusion, make sure that each brush assembly is replaced with the correct part that has the brush cable on the
the same side. Service Kits consist of 2 matching pairs of brush assemblies.
BRUSH REPLACEMENT OF ISKRA MOTOR - All Models
FIGURE 3-119
Install two phillips head screws from the front cover.
FIGURE 3-118
Install three phillips head screws from the rear cover.
REASSEMBLY - E-78 & E-88
