REASSEMBLY - E-78 & E-88

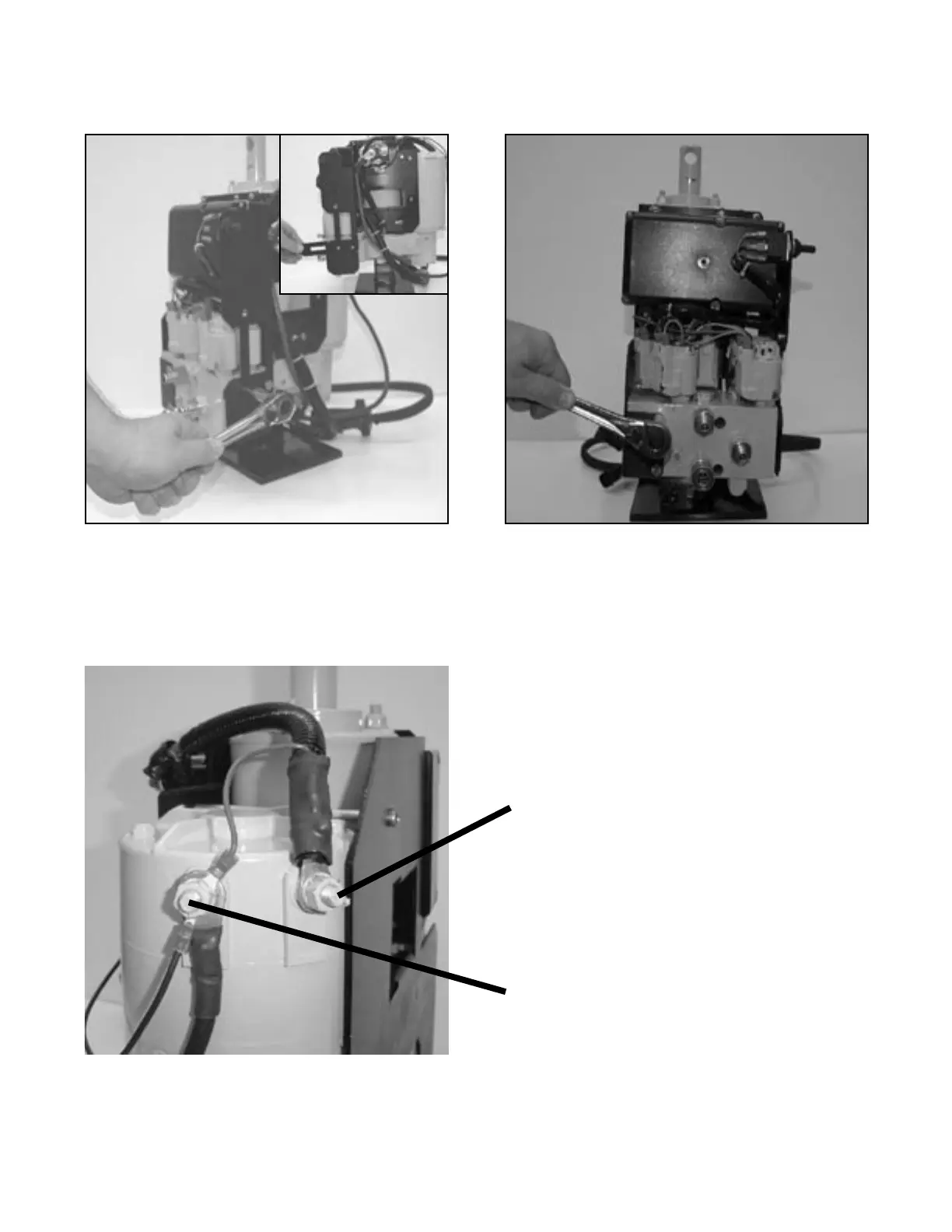

FIGURE 3-115
Install two 1/4” bolts using a 7/16” Socket or wrench. Be
sure to reinstall shim.
FIGURE 3-116
Install two 1/4” bolts using a 7/16” Socket or wrench.
FIGURE 3-117
Using a 1/2” Socket or Wrench attach the two nuts holding
the positive and negative wires to the motor.
A2 has a large red wire (Positive)
D1 has a large black wire along with
a small black wire and small red wire.
(Negative)
