FIGURE 3-113

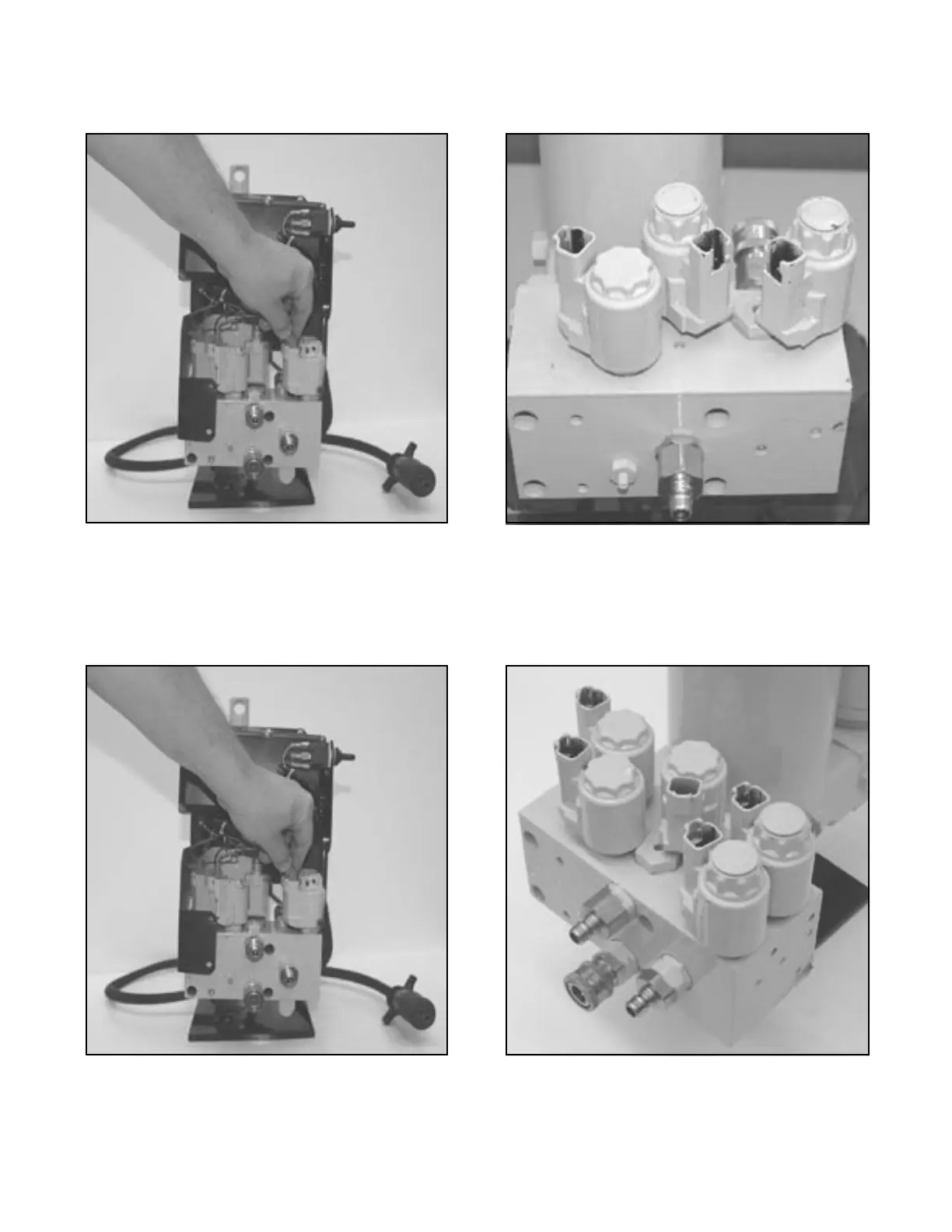

Gently install electronic framing over hydraulic unit until coil
wire plugs are accessible to the coils. Plug coil wire plugs
into the proper coils. See Figure 3-114
FIGURE 3-114
“A” Coil is Black and Tan wires, “B” Coil is Red and
Tan wires, “C” Coil is Green and Tan wires, “D” Coil
is Yellow and Tan wires and “E” Coil is Purple and
Tan wires.
-67-
REASSEMBLY - E-78
A
B
C
E
D
REASSEMBLY - E-88
FIGURE 3-111
Gently install electronic framing over hydraulic unit until coil
wire plugs are accessible to the coils. Plug coil wire plugs
into the proper coils. See Figure 3-112
FIGURE 3-112
“A” Coil is Black and Tan wires, “B” Coil is Red and
Tan wires and “C” Coil is Green and Tan wires.
A
B
C
