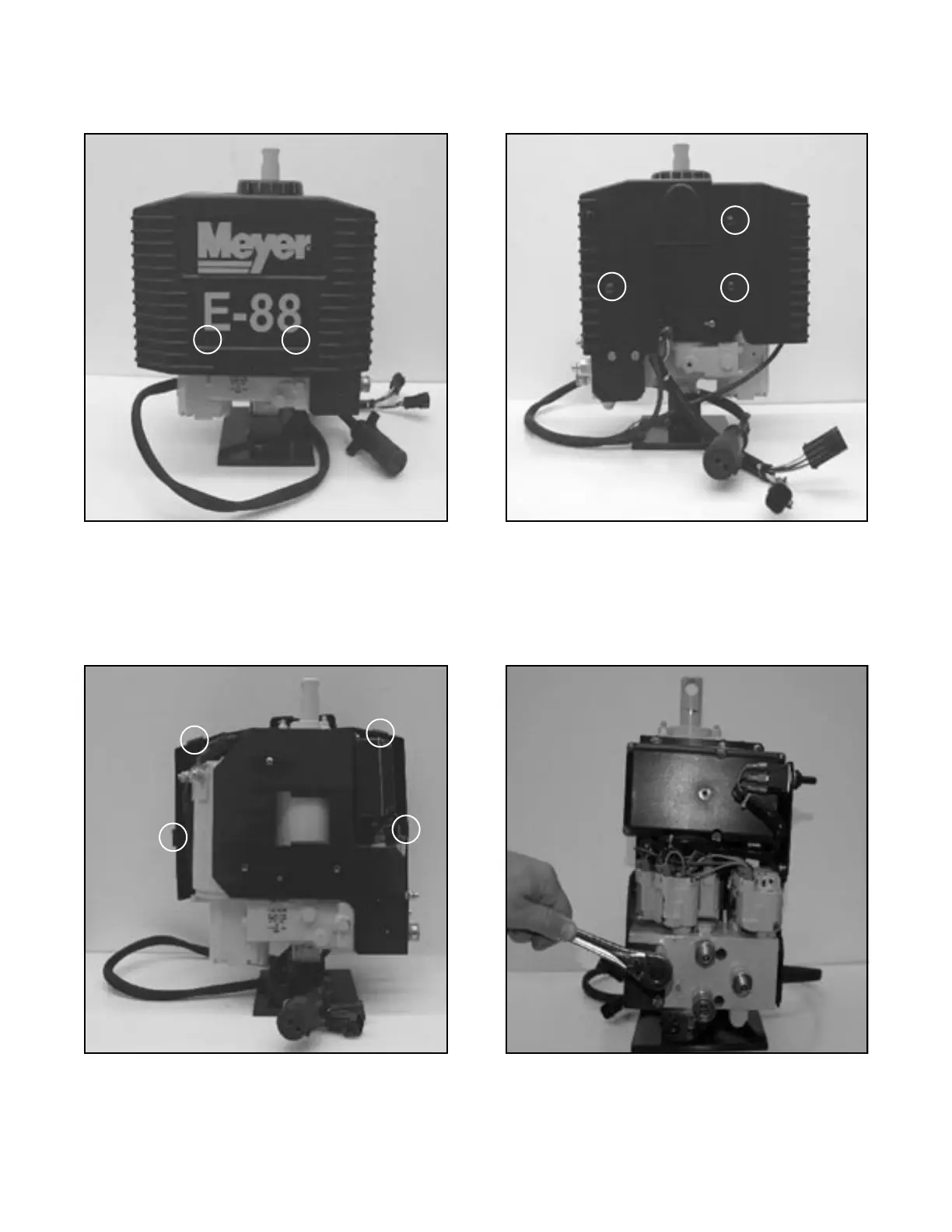

DISASSEMBLY - E-78 & E-88
FIGURE 3-3
Remove two phillips head screws from the front cover.
FIGURE 3-4
Remove three phillips head screws from the rear cover.
FIGURE 3-5
Carefully press in the four tabs holding the front and rear
covers together and pill the covers apart.
FIGURE 3-6
Remove two 1/4” bolts using a 7/16” Socket or wrench.
-40-
