DISASSEMBLY - E-88 ONLY

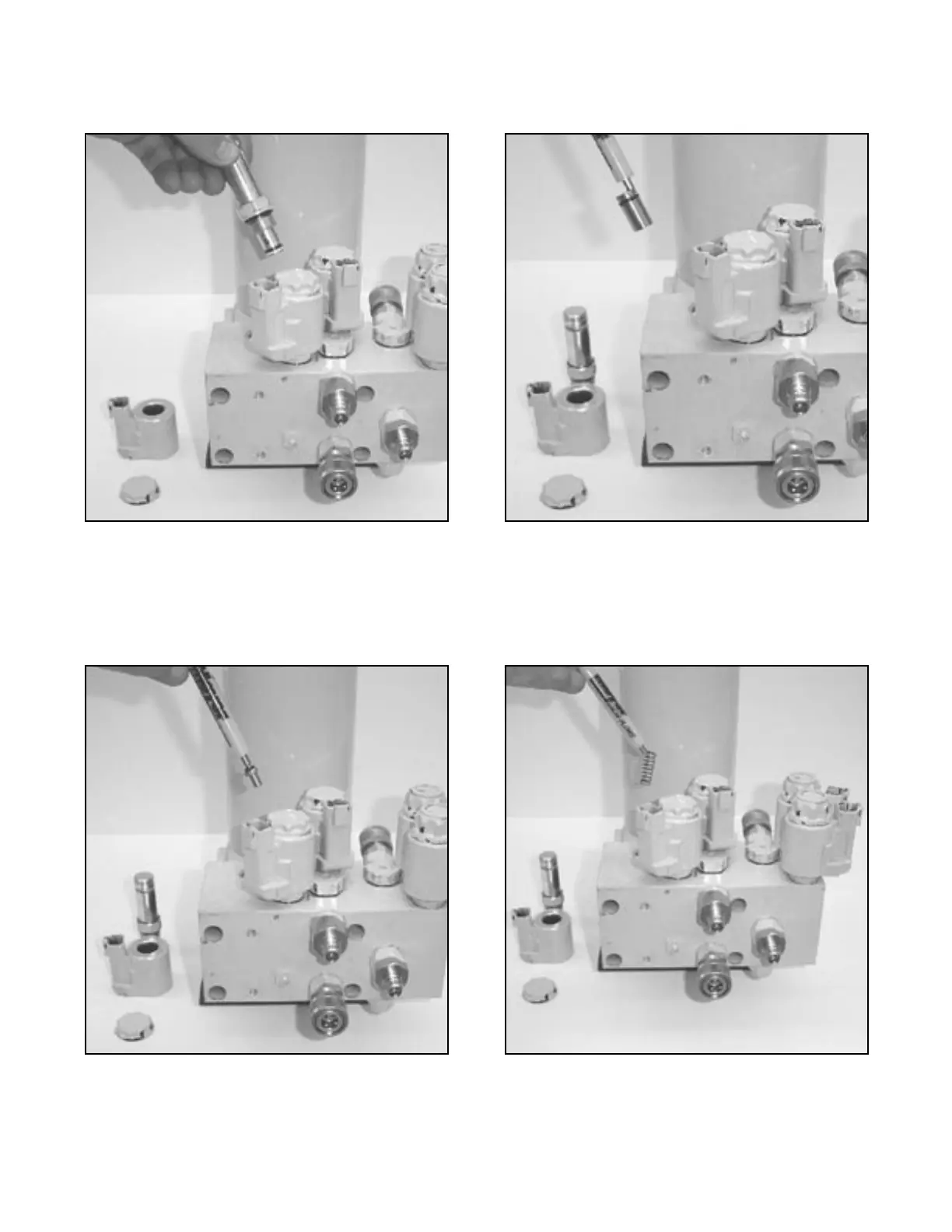

FIGURE 3-24
A magnetic probe is extremely useful for removal of small
valve parts. Use a magnet to retrieve the “B” Check Valve
Body.
FIGURE 3-23
The “B” Cartridge is removed. Clean by soaking cartridge
in cleaning solvent.
FIGURE 3-25
Use a magnet to retrieve the “B” Check Valve Poppet.
FIGURE 3-26
Use a magnet to retrieve the “B” Check Valve Spring.
