Meyer E-58H - Page 56

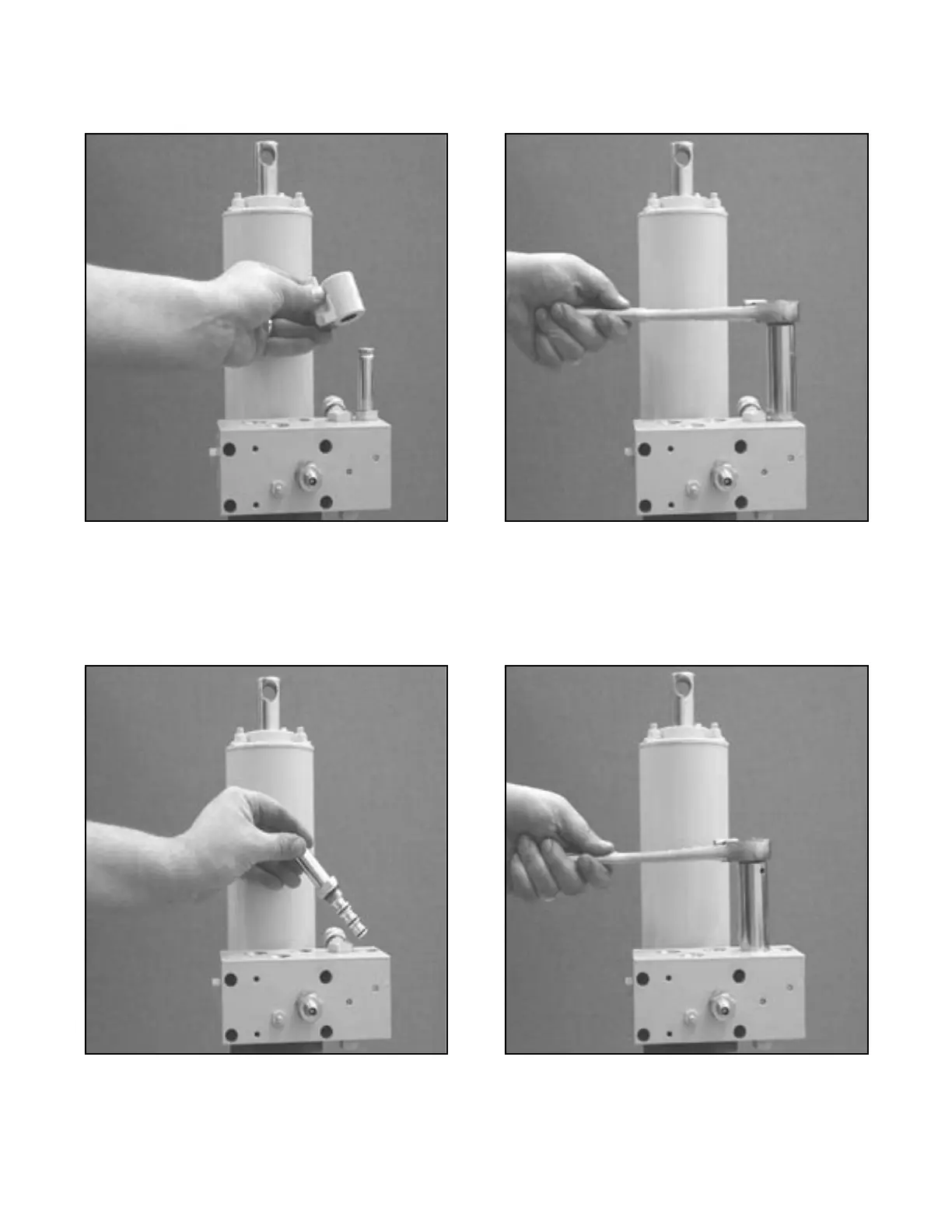

FIGURE 3-59
Remove the “C” Coil.
DISASSEMBLY - E-58H & E-78 ONLY
FIGURE 3-60
The “C” Cartridge is removed using a 7/8” hex deep
socket.
FIGURE 3-61
The “C” Cartridge is removed. Clean by soaking cartridge
in cleaning solvent.
FIGURE 3-62
Use a 15/16” hex deep socket to remove the P.O. Check
valve assembly used for angling.
-54-
