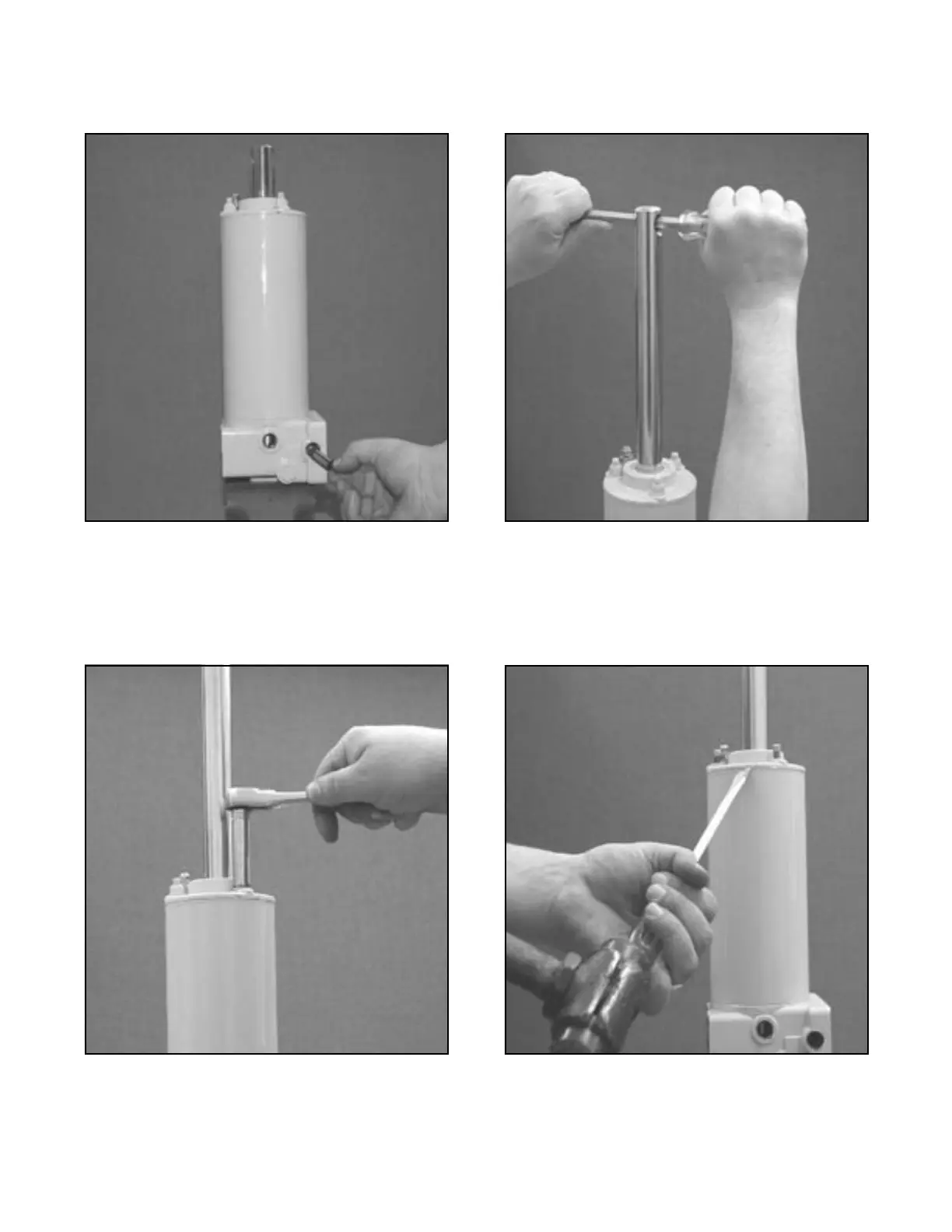

DISASSEMBLY - ALL MODELS
FIGURE 3-78
Cover is removed from reservoir using a large screw driver
and hammer or mallet as shown, tapping lightly around the
top cap.
-58-
FIGURE 3-76
Before removing ram and piston assembly, extend rod fully.
This drains out remaining oil in cylinder.
FIGURE 3-77
When disassembling the reservoir-cylinder assembly use a
1/2” hex socket to remove the lock nuts. The studs usually
unscrew from the base with the nuts.
FIGURE 3-75
Filters removed; soak in kerosene before reassembling.
