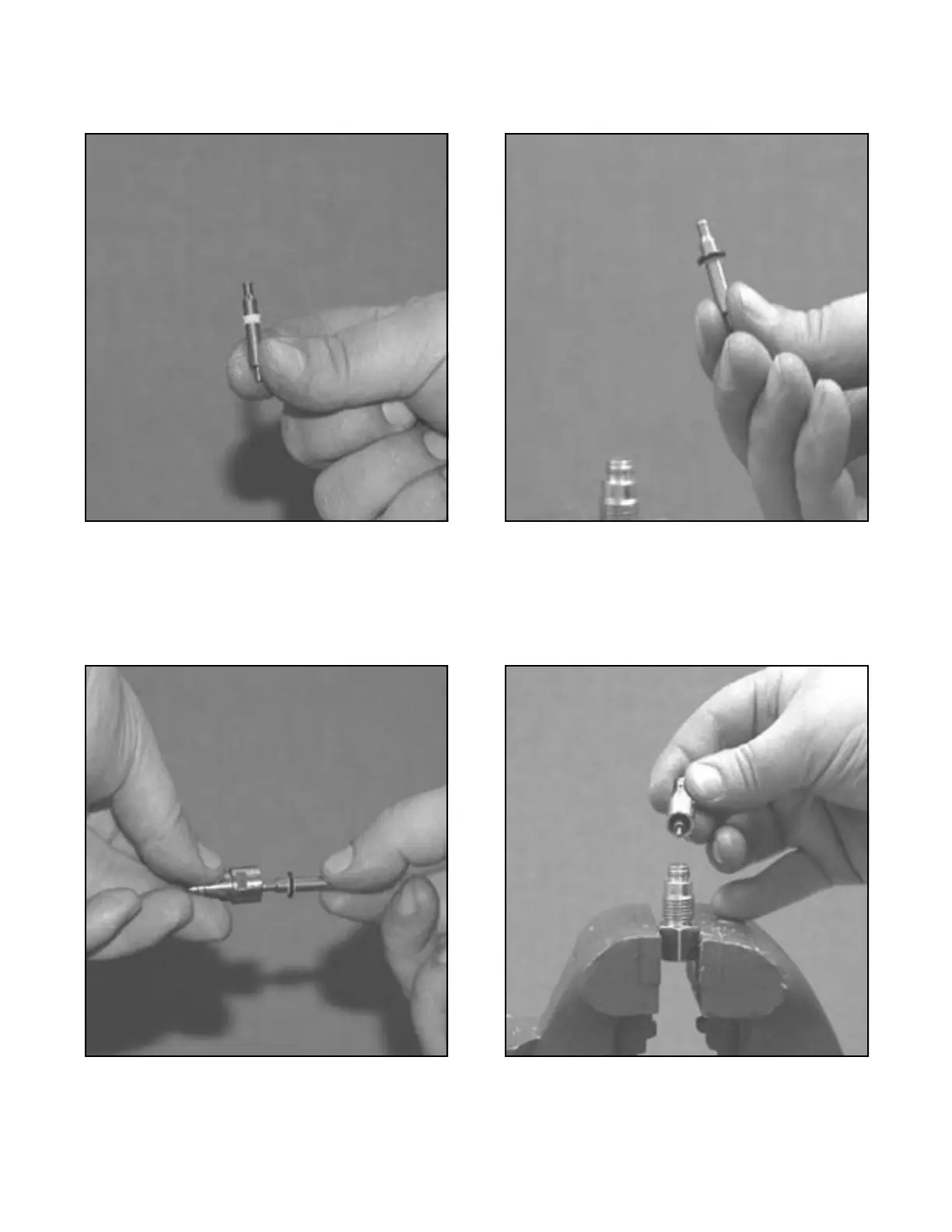

FIGURE 3-100
Carefully slide O-ring over Glyd. Ring.
FIGURE 3-101
Slide Pin with the small end first into the lower half of
Body.
FIGURE 3-102
Reinstall lower half of Body to the upper half. The upper half
of the body will press the O-ring with Glyd. ring into place.
CROSSOVER RELIEF VALVE REASSEMBLY - ALL MODELS
-64-
FIGURE 3-99
Carefully slide Glyd. Ring over Pin.
