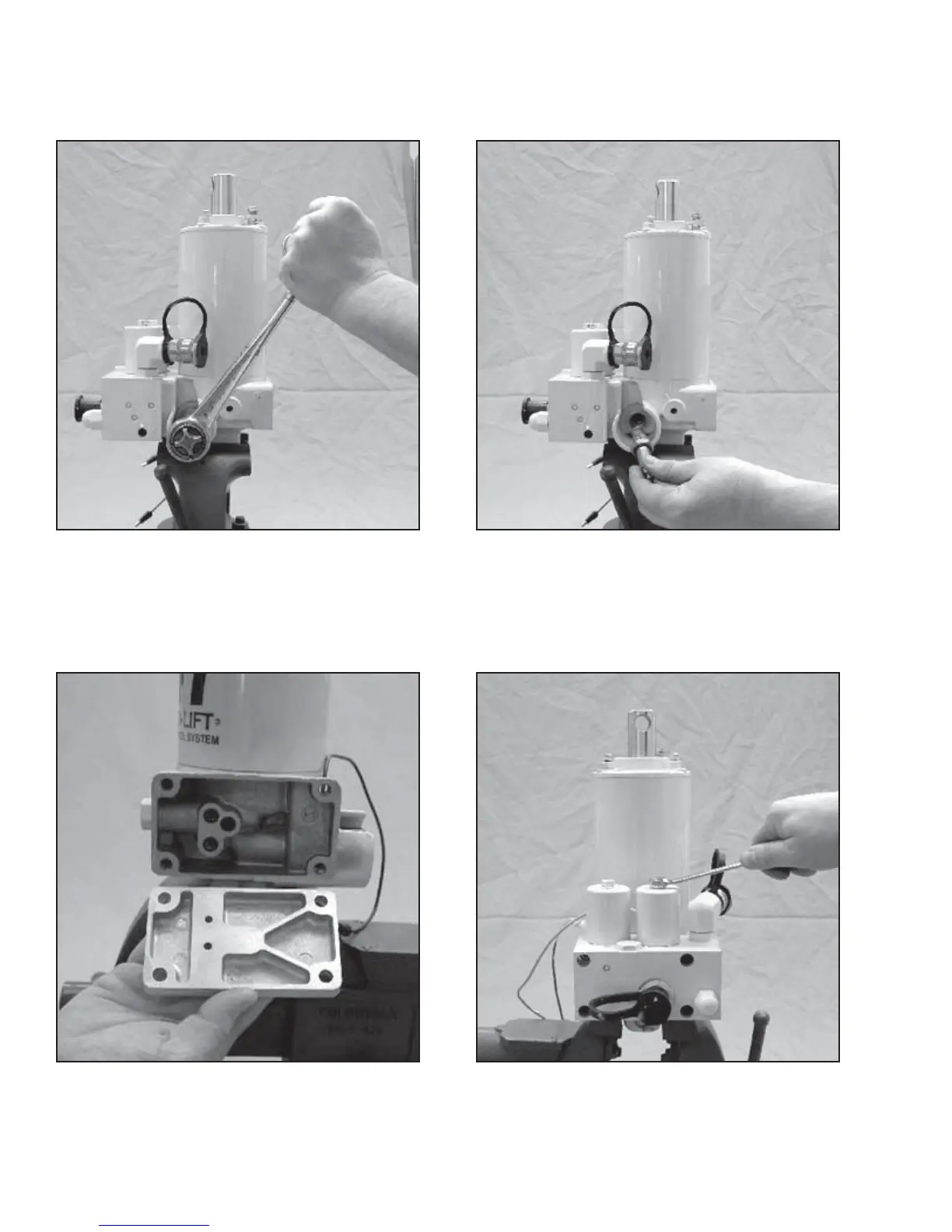

FIGURE 3-10
The “A” Cartridge is removed using a 7/8" or 1-1/8" hex
deep socket.
FIGURE 3-11
The “A” Cartridge is removed. Clean screen by soaking
cartridge in cleaning solvent.
DISASSEMBLY - ALL MODELS
E-46 & E-46H ONLY
FIGURE 3-12
End plate is removed by using a 1/4" hex key on the four
socket head screws. Note orientation of plate to the unit,
this is critical when assembling.
FIGURE 3-13
Remove “B” and “C” Coil by using a 7/16" Wrench on
the retaining nuts.
-36-
