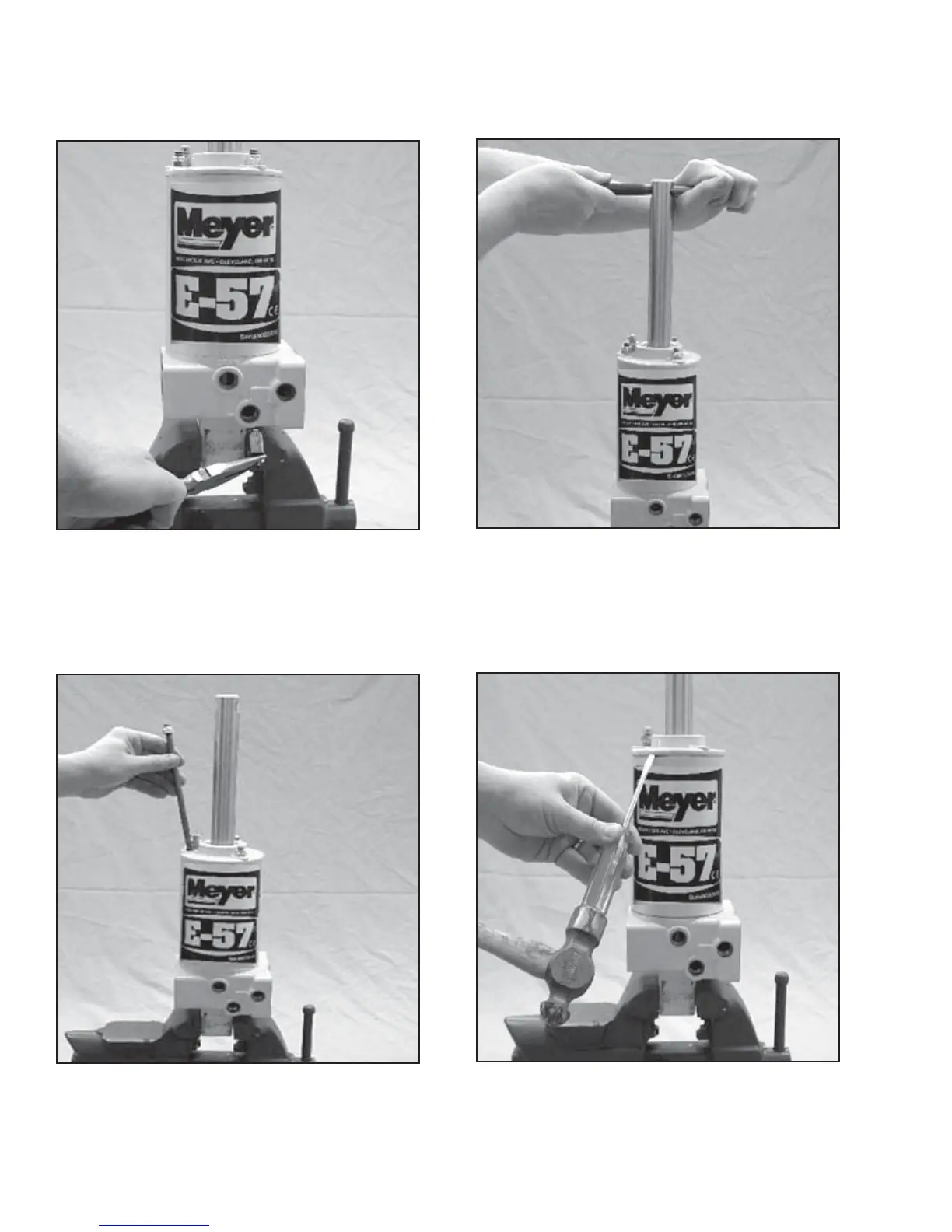

DISASSEMBLY - ALL MODELS
FIGURE 3-29
Cover is removed from reservoir using a large screw
driver and hammer or mallet as shown, tapping lightly
around the top cap.
-40-
FIGURE 3-27
Before removing ram and piston assembly, extend rod
fully. This drains out remaining oil in cylinder.
FIGURE 3-28
When disassembling the reservoir-cylinder assembly
use a 1/2" hex socket to remove the lock nuts. The studs
usually unscrew from the base with the nuts.
FIGURE 3-26
Filters removed; soak in kerosene before reassembling.
