-39-

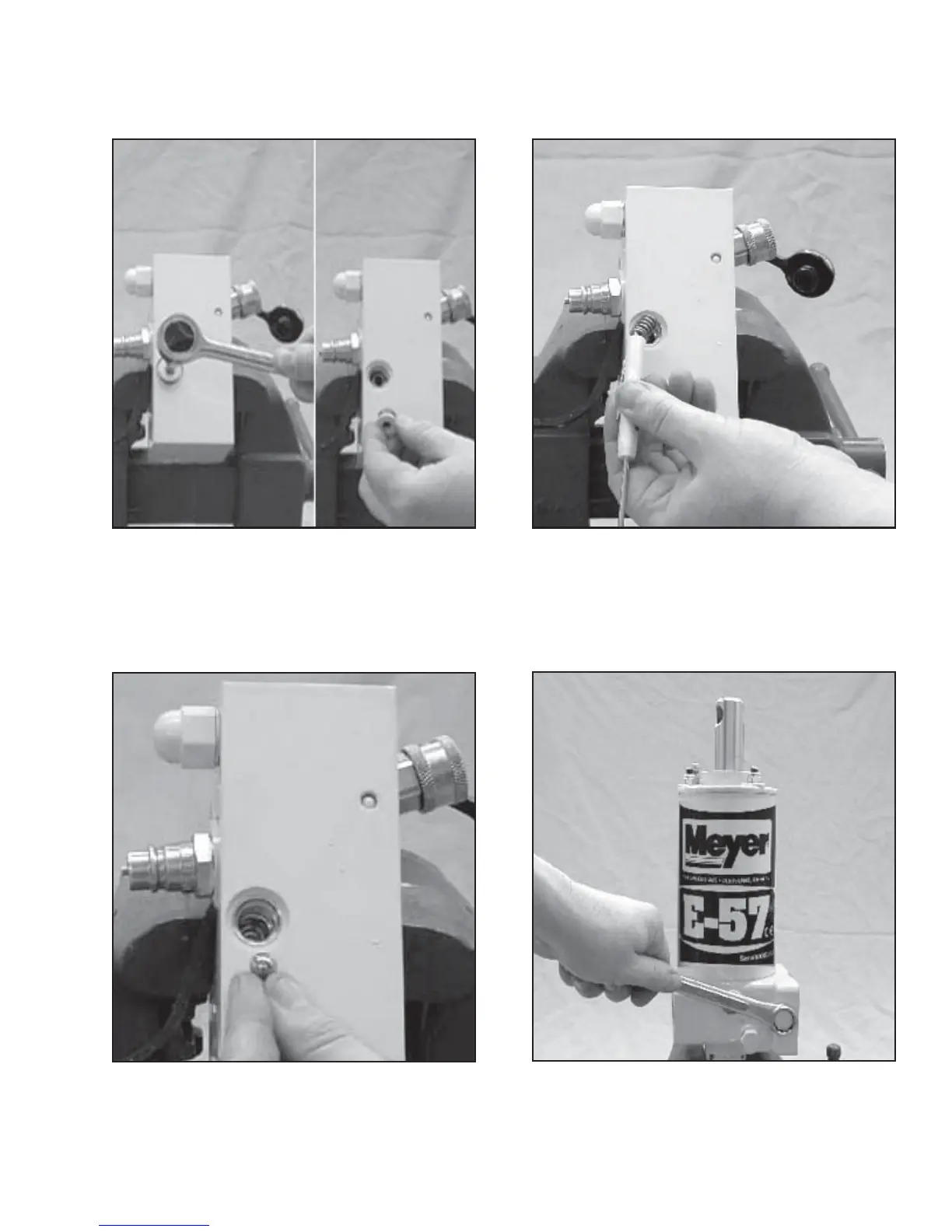

FIGURE 3-22
Use a 1/4" hex key or Allen Socket to remove pilot valve
plug.
FIGURE 3-23
Pilot check spring being removed from valve body.
DISASSEMBLY - E-47 & E-57 MODELS
FIGURE 3-24
Pilot check ball removed. This is a 3/8" diameter steel
ball.
FIGURE 3-25
There are two filters on E-47 and E-47H and one on
E-46 and E-46H units. Remove filters with an 11/16"
wrench.
