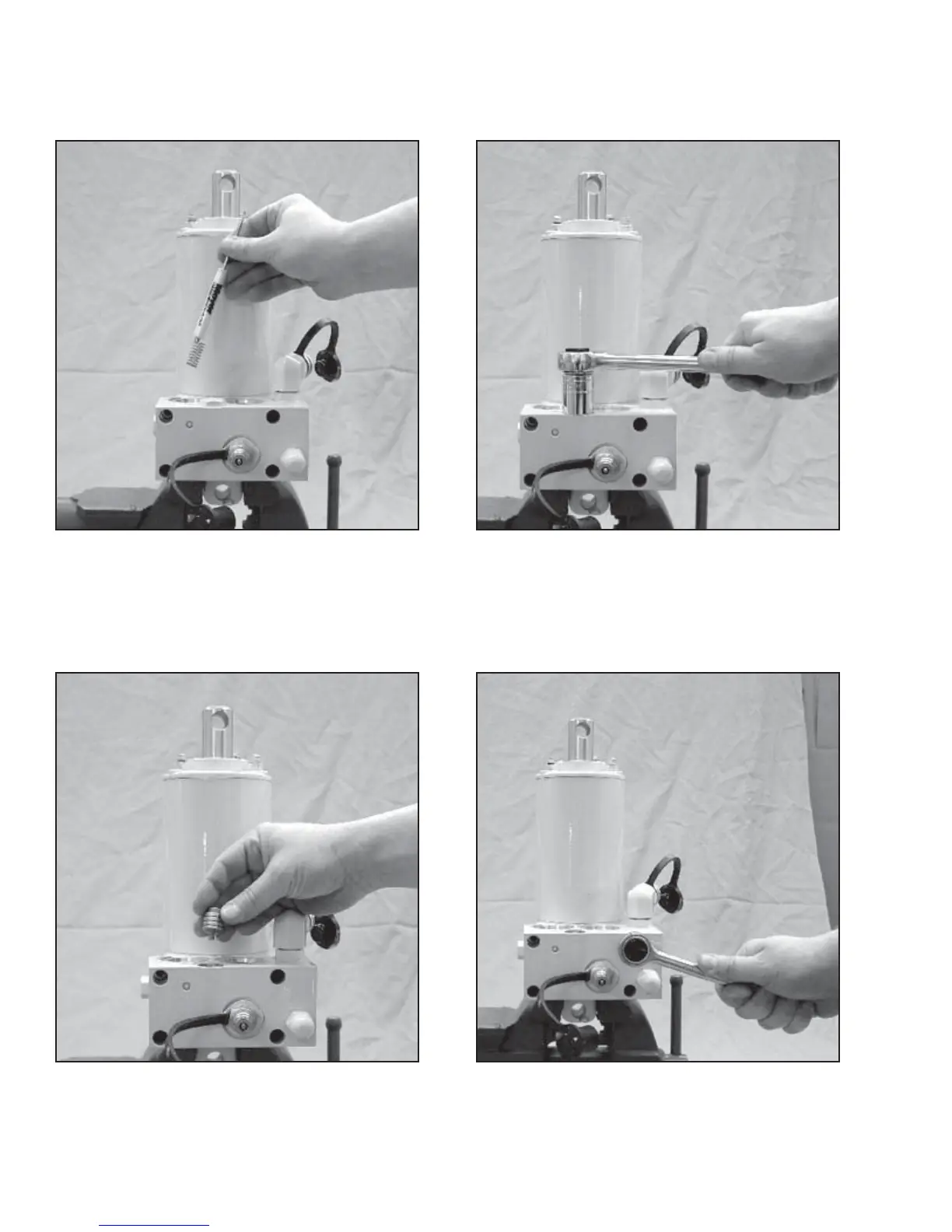

FIGURE 3-18
“B” Cartridge check spring removed.
DISASSEMBLY - E-47 & E-57 MODELS
FIGURE 3-19
Use a 13/16” Hex Socket to remove pilot valve plug.
FIGURE 3-20
Pilot check piston being removed. Handle piston with
care. If piston is scratched or damaged, it must be
replaced.
FIGURE 3-21
The valve body can be removed from unit using
a 1/4" hex key or Allen Socket.
-38-
