Meyer ELECTRO LIFT E-47 - Page 13

-11-
CHECK VALVE
"A" SOLENOID
FILTER
STRAINER
LIFT CYLINDER
"B" SOLENOID
FIGURE 1-3B
- OPERATING - RETURN - INTAKE or DRAIN
TANK
PRESSURE RELIEF E-47 1650 + 50 P.S .I. E-57 2000 + 0 P.S .I.

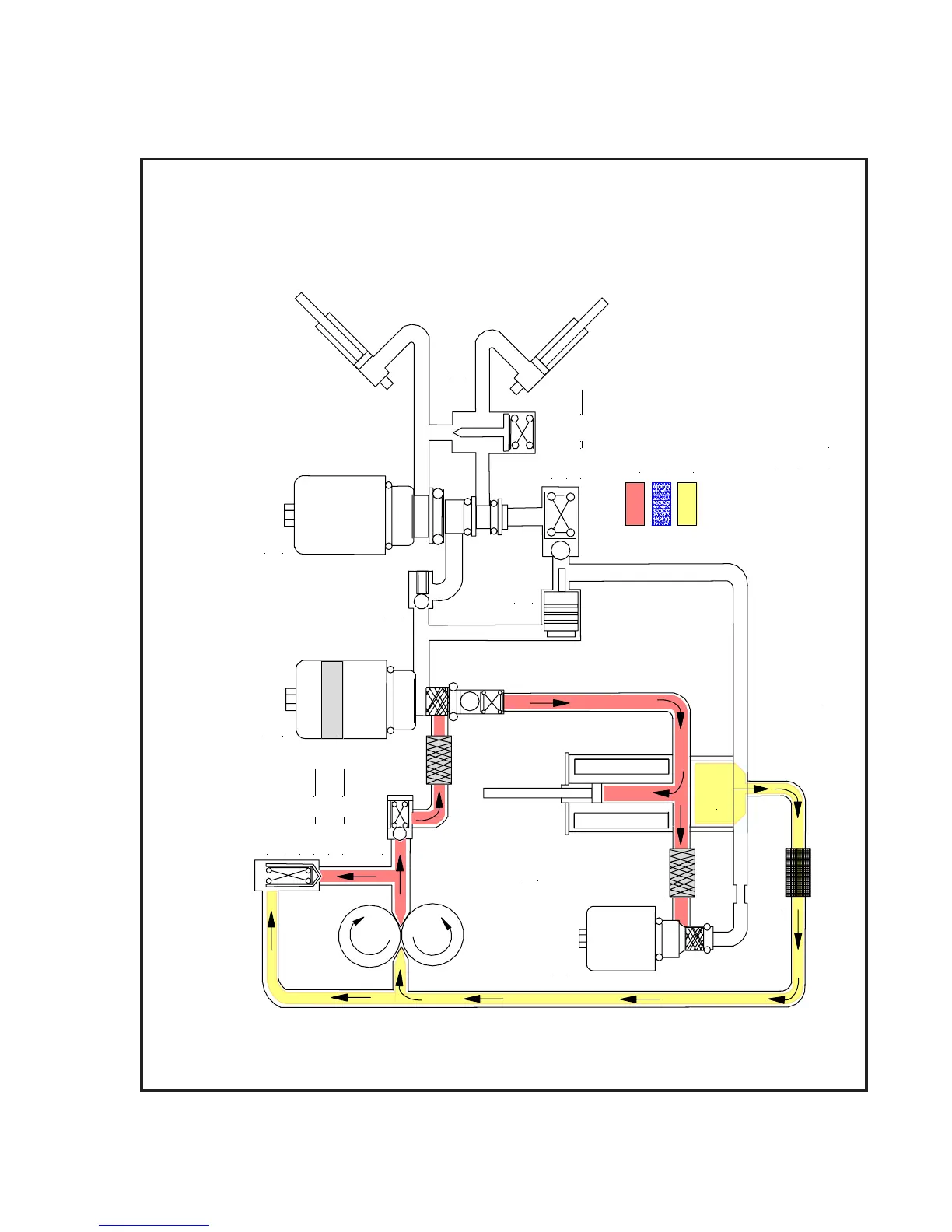

HYDRAULIC FLOW CHART MODELS E-47 & E-57
RAISE
"C"
SOLENOID
CROSSOVER RELIEF 3800 + 400 P.S . I
POWER ANGLING CYLINDERS
CHECK VALVE
FILTER
PILOT CHECK
ENERGIZED
