-41-

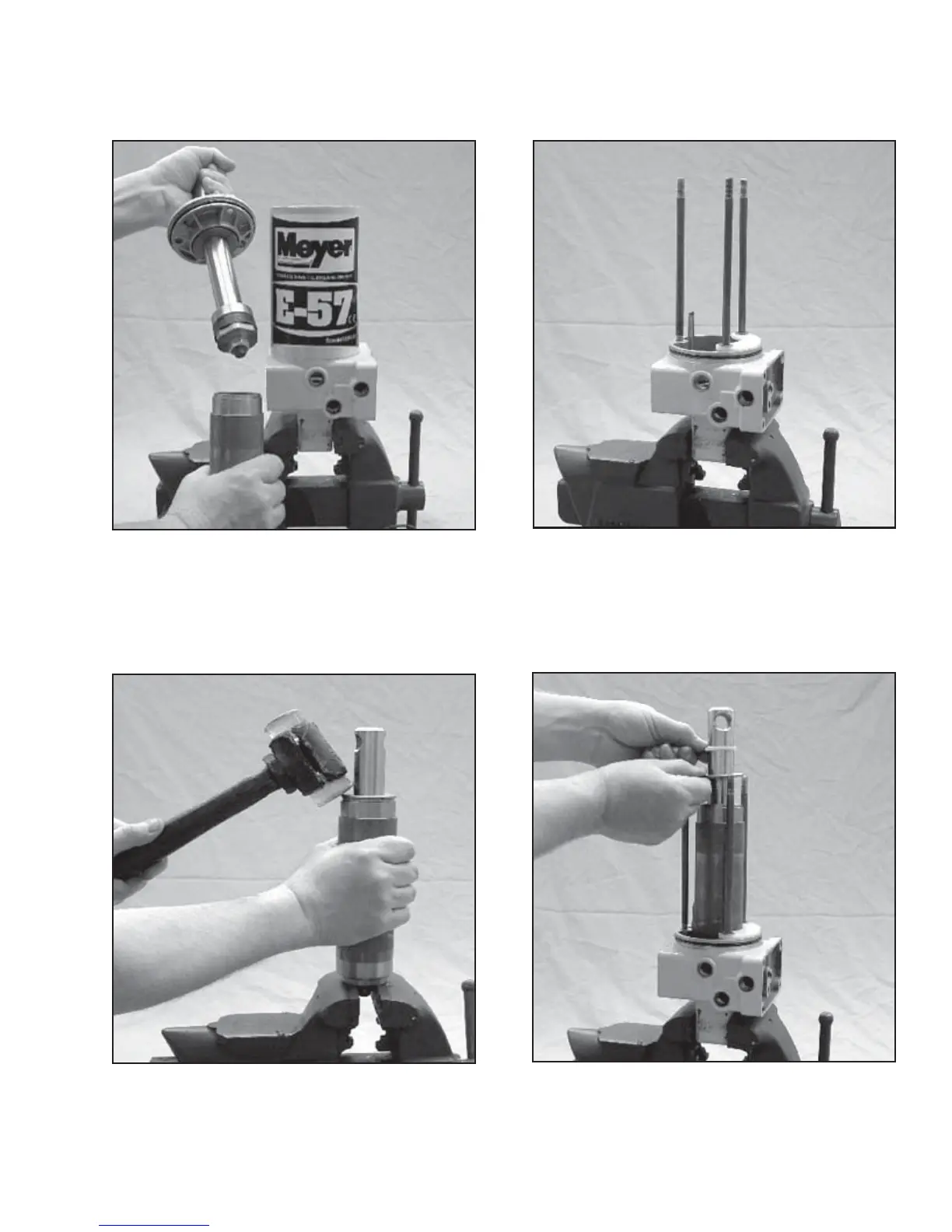

FIGURE 3-33
Install cylinder assembly carefully being certain it seats
squarely on “O” ring in base. Assemble O-Ring (13) and
Washer (21) as shown.
FIGURE 3-30
Remove ram and cylinder assembly from reservoir then
pull ram out of cylinder. Worn packing cup on piston
should be replaced if cloth backing is visible.
FIGURE 3-31
Remove nuts, baffle and retainer rings from studs and
screw the studs into the base. Clean reassemble Sump
Base (30) in reverse order.
FIGURE 3-32
Clean all paint from ram then slide the cylinder over the
ram piston assembly using a rubber or leather mallet.
REASSEMBLY - ALL MODELS
NOTE: Notch on
the washer to be
on underside.
To Next Page
