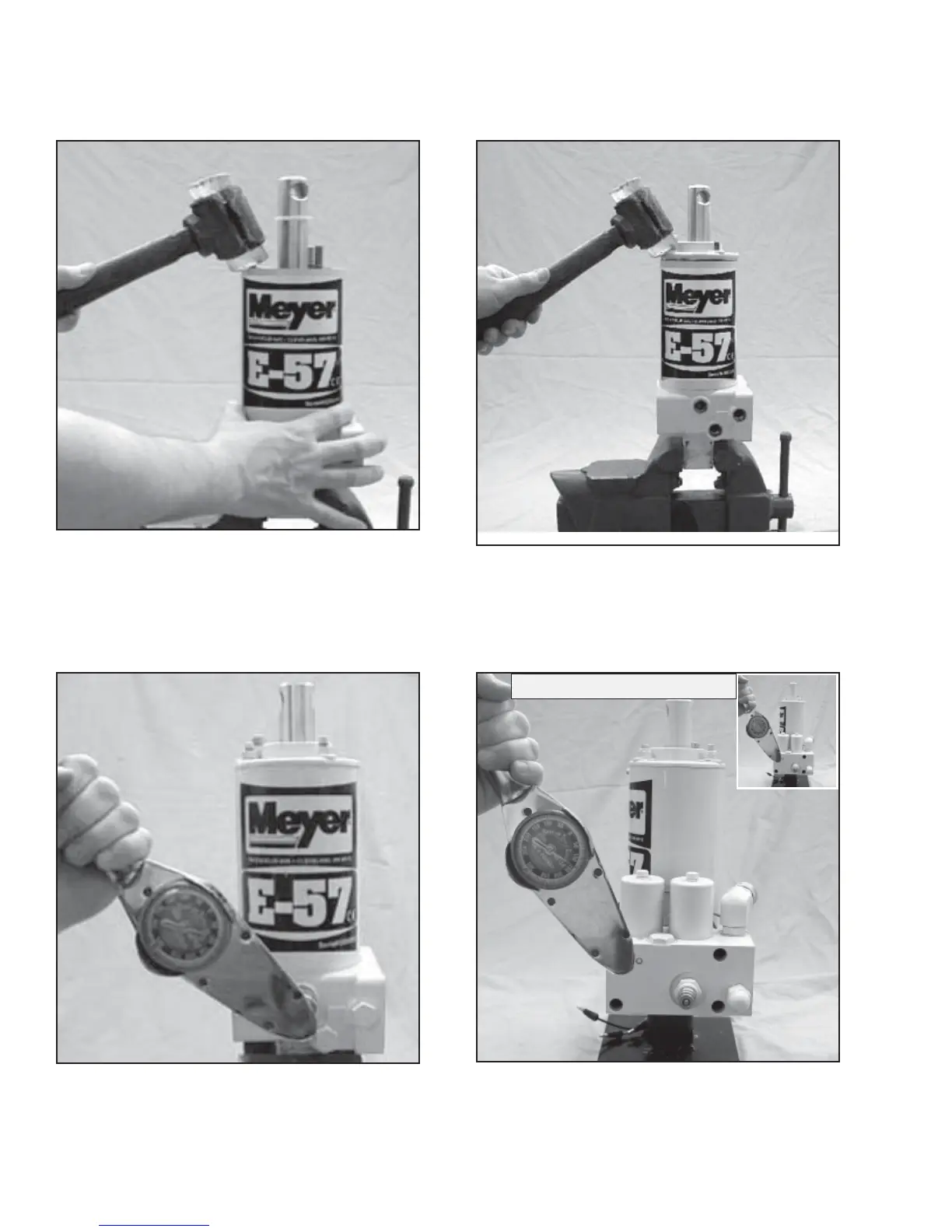

FIGURE 3-37
Torque the bolts to 100-125 in. lbs. using a 1/4” hex key
or Allen Socket.
-42-
REASSEMBLY - ALL MODELS
FIGURE 3-35
Install cover assembly using mallet to seat cover, making
certain filter plug is properly located.
FIGURE 3-36
Drain plug and filters to be torqued to 75-85 in. lbs. with
an 11/16" hex socket. Remove nuts from pump studs
and screw into base.
FIGURE 3-34
Reinstall reservoir using mallet to seat reservoir
squarely.
E-46, E-46H & E-47, E-47H
