-43-

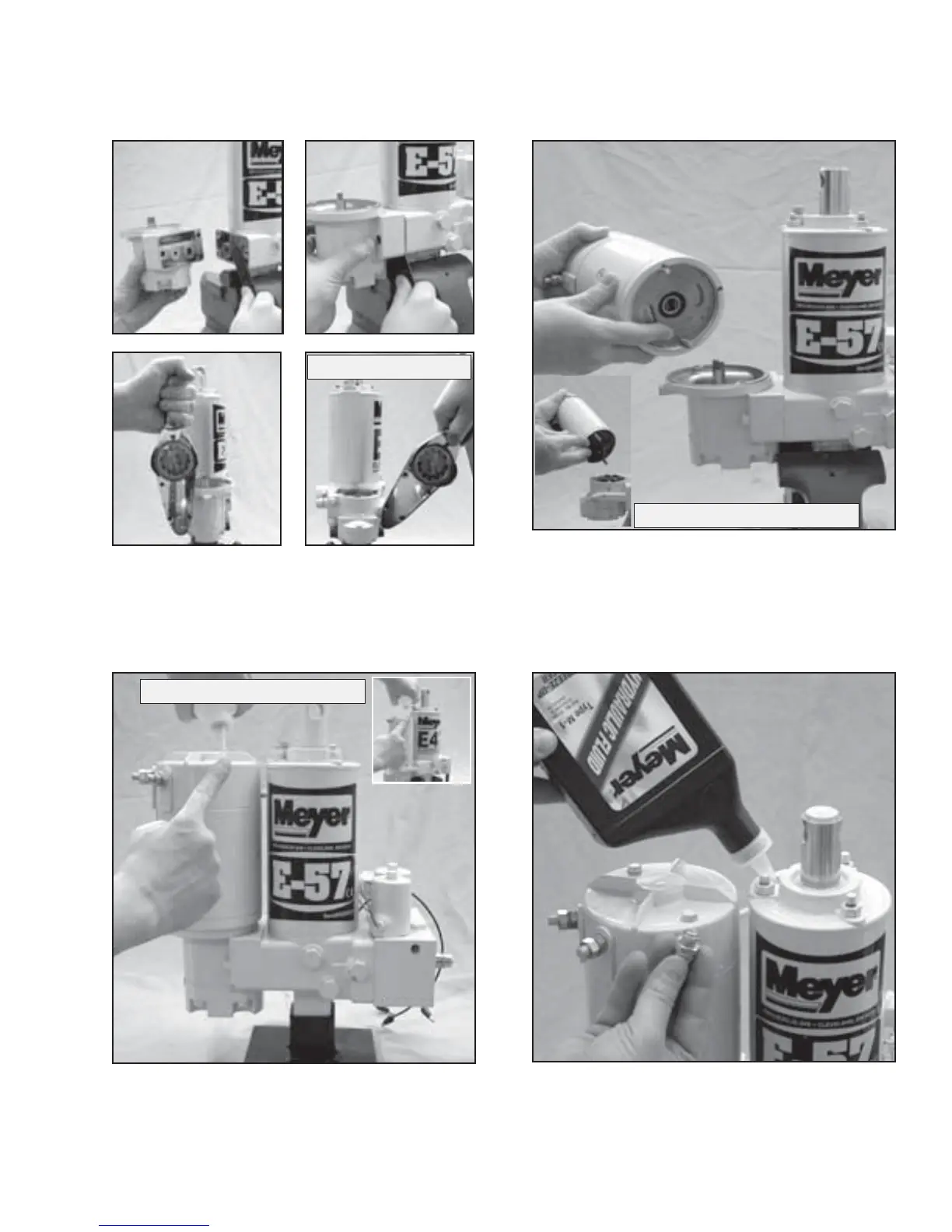

FIGURE 3-38
Use a flat tool to hold the pump check valve in place and
assemble pump. Torque the pump to 100-125 in. lbs.
On the E-57 use a 1/4” Allen socket on the bolts and on
the E-46 and E-47 use a 1/2" hex socket on the locknuts.
FIGURE 3-40
Torque cap screws to 45 - 55 in. lbs. using a 3/8” (E-47)
or 10mm (E-57) hex socket, then apply Permatex
Form-A-Gasket No. 2 or equivalent sealant around
each cap screw head.
FIGURE 3-39
To reinstall motor, align pump shaft quill and motor shaft
with appropriate bolt holes. Use a 10mm hex socket on
the E-57 and a 3/8" hex socket on the E-46 and E-47.
REFILL UNIT WITH MEYER M-1
HYDRAULIC FLUID
REASSEMBLY - ALL MODELS
FIGURE 3-41
Follow instructions under
“Replacement of Hydraulic Fluid”
See POST SEASON MAINTENANCE on page 3
E-46, E-46H & E-47, E-47H
E-46, E-46H & E-47, E-47H
E-46, E-46H & E-47, E-47H
