-17-
PRESSURE RELIEF E-47 1650 + 50 P.S . I. E-57 2000 + 0 P.S.I.
CHECK VALVE
"A" SOLENOID
FILTER
STRAINER
LIFT CYLINDER
"B" SOLENOID

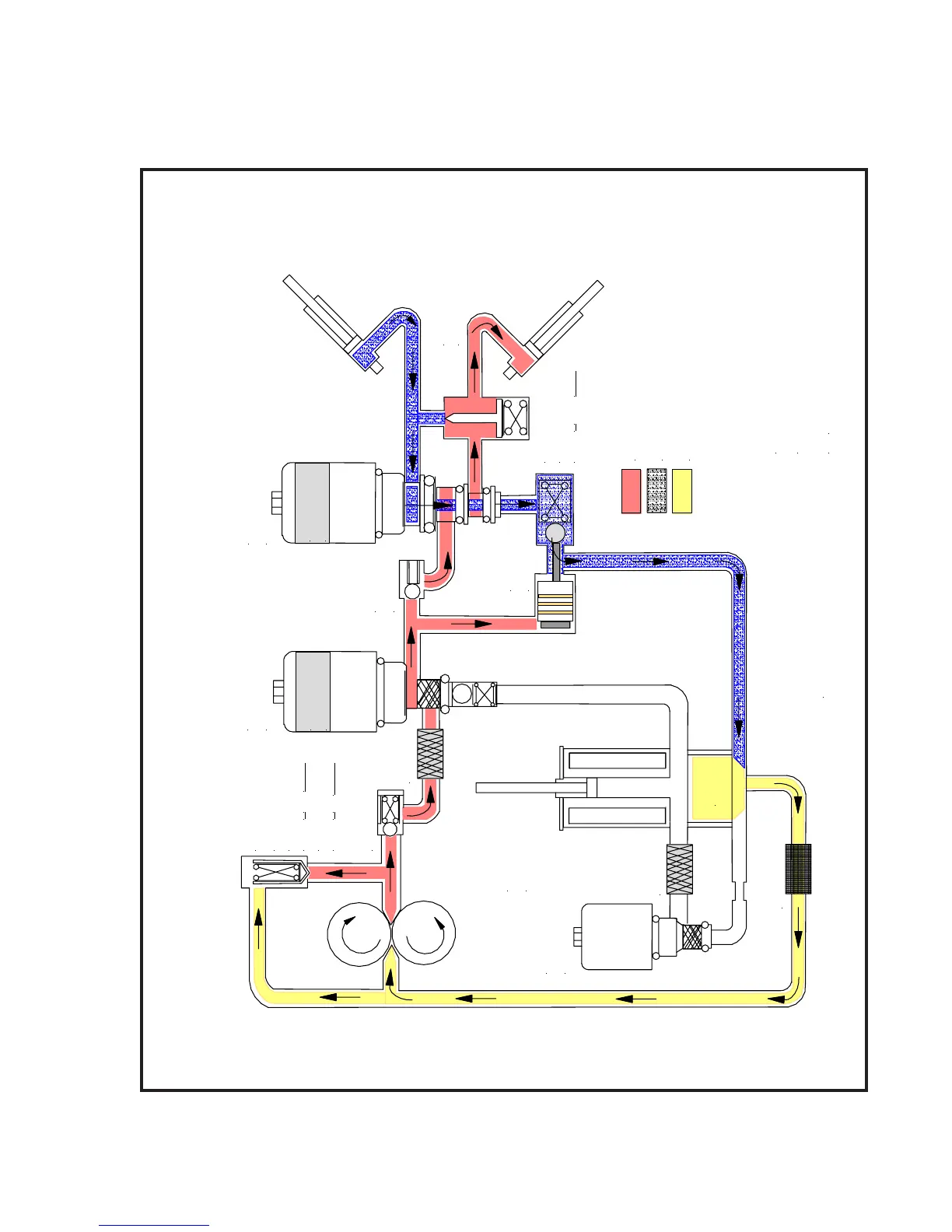

HYDRAULIC FLOW CHART MODELS E-47 & E-57
ANGLE LEFT
FIGURE 1-6B
- OPERATING - RETURN - INTAKE or DRAIN
"C" SOLENOID
TANK
CROSSOVER RELIEF 3800 + 400 P.S . I
POWER ANGLING CYLINDERS
CHECK VALVE
FILTER
PILOT CHECK
NOT ENERGIZED
NOT ENERGIZED
