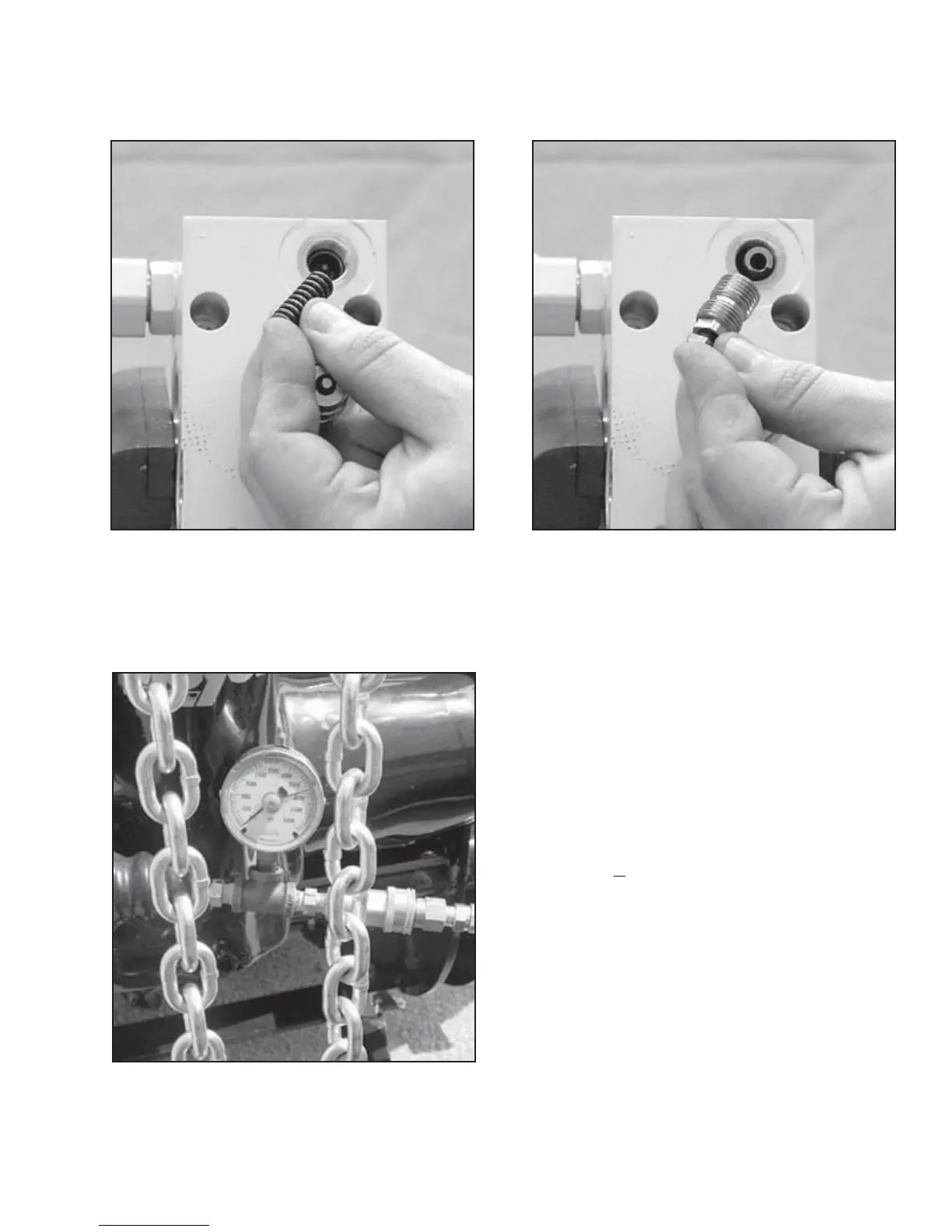

FIGURE 3-61
Reassemble Spring (55).
FIGURE 3-62
Reassemble Plug (58) with Adjusting Screw (59) and
disc (57).
To properly adjust the Crossover Relief Valve refer to
page 21. Push leading edge of the Moldboard against
an immovable object until Crossover Relief Valve opens.
(3800 P.S.I.
+ 400). Reassemble Acorn Nut (61) and
O-ring (60).
-49-
CROSSOVER RELIEF VALVE REASSEMBLY
FIGURE 3-63
