Meyer Formula - Mixer Controls Overview

Meyer Manufacturing Corporation - 24 - PB-MIXER-TR-MECH
6.5.1 Controls

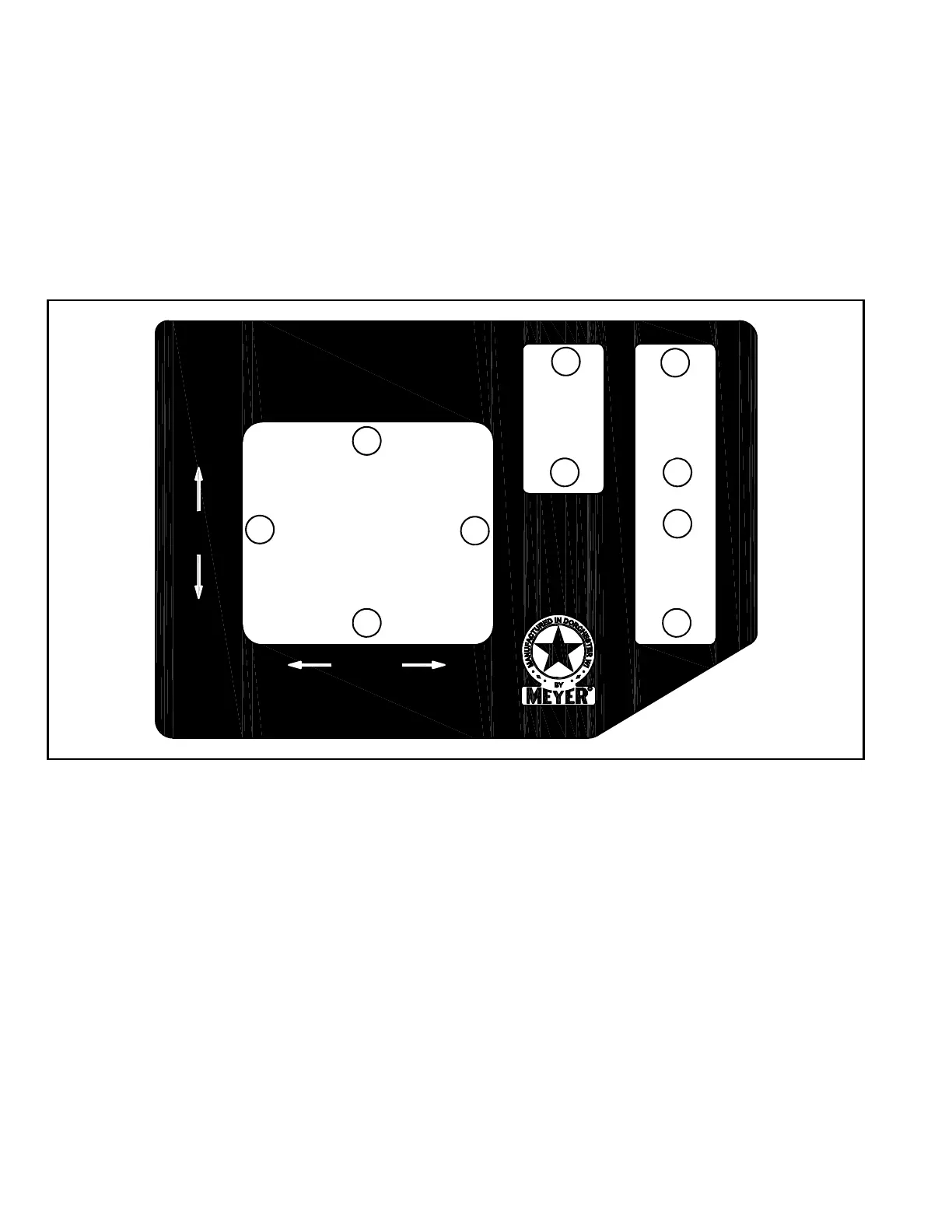

The controls for the mixer are located in the cab of the truck next to the driver seat. The joystick controls the front door,
chute (Optional), and conveyor (Optional). Push the joystick forward (Item 1) closes the front door. Pull the joystick back
(Item 2) raises the front door. Move the joystick to the left (Item 3) lowers the chute. Move the joystick to the right (Item 4)
raises the chute. The button on the joystick turns the conveyor on and off. Toggling the rear door momentary switch
forward (Item 5) lowers the rear door. Toggling the rear door momentary switch back (Item 6) raises the rear door. The
light switch selected forward (Item 7) turns the lights on and selected back (Item 8) turns the lights off. The two speed
switch selected forward (Item 9) shifts the gearbox to high and selected back (Item 10) shifts the gearbox to low.
NOTE: The mixer PTO MUST be stopped before shifting the 2-speed gearbox to prevent damage to the gearbox.
