Meyer Formula - Optional Rear or Rear Side Door Hydraulic Schematic

Meyer Manufacturing Corporation - 60 - PB-MIXER-TR-MECH

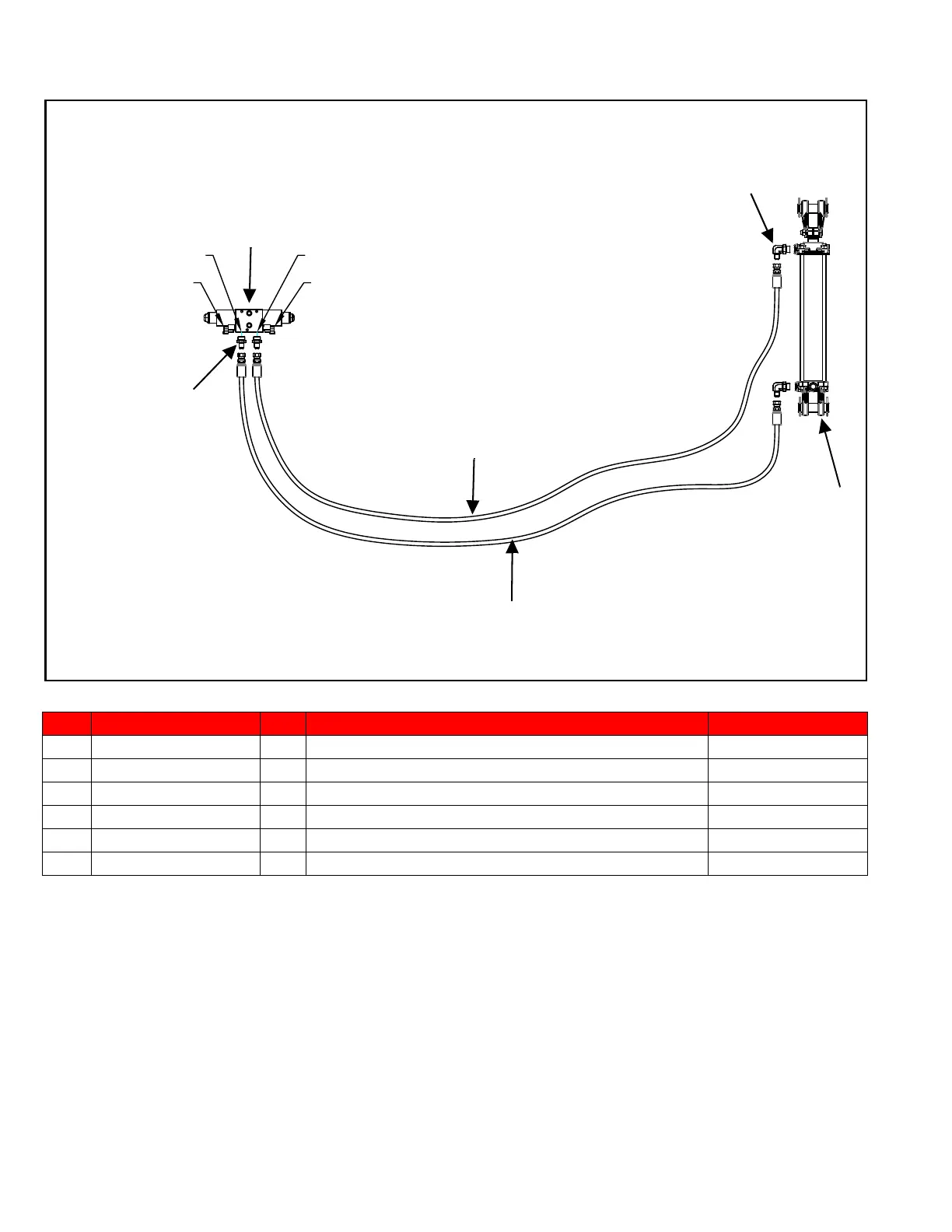

OPTIONAL REAR OR REAR SIDE DOOR HYDRAULIC SCHEMATIC
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL
1 155-04R17-266-1 1 1/4” x 266” Hose Assembly 585/700
2 155-04R17-251-1 1 1/4” x 251" Hose Assembly 585/700
3 155-2.5-12-1.125-1 1 2-1/2” x 12" x 1-1/8” Hydraulic Cylinder 585/700
4 155-6400-6-8 2 Straight Adapter 585/700
5 155-6801-6-8 2 90 Degree Adapter 585/700
6 155-M-0001 1 Closed Center Section Door Cylinder Valve Bank 585/700
5($5'225'2:15($5'22583
,167$//'(876&+
3/8*:,7+5(':,5(
)520-2<67,&.
+$51(66$66(0%/<
,167$//'(876&+
3/8*:,7+3853/(:,5(
)520-2<67,&.
+$51(66$66(0%/<
MEYER MFG CORP.
6
1
5
4
2
3
