Meyer Formula - Slide Tray Hydraulic Schematic

Meyer Manufacturing Corporation - 84 - PB-MIXER-TR-MECH

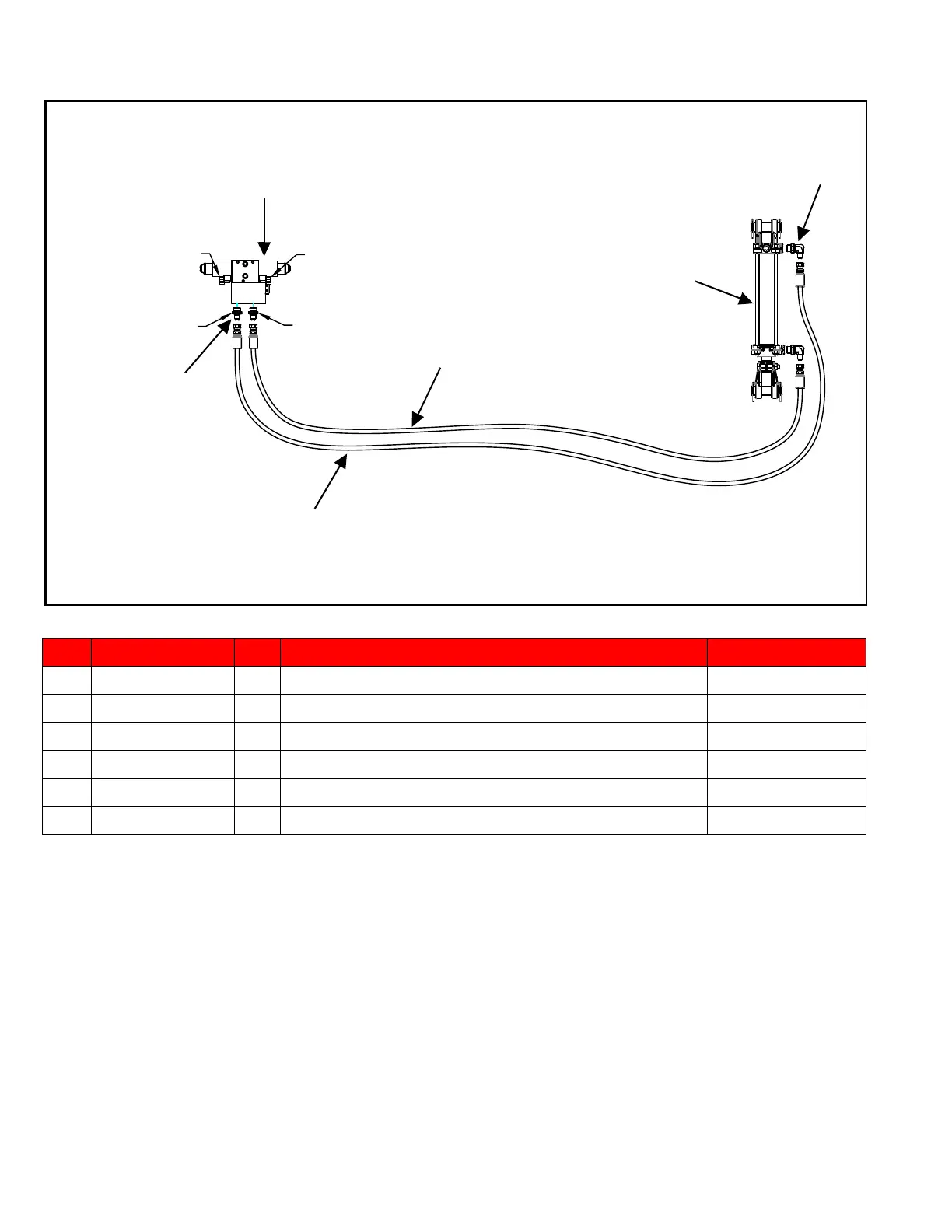

SLIDE TRAY HYDRAULIC SCHEMATIC
KEY PART NUMBER QTY DESCRIPTION MIXER MODEL
1 155-6801-6-8 2 90 Degree Adapter 585/700
2 155-2-8-1.125-1 1 2” x 8” x 1-1/8” Hydraulic Cylinder 585/700
3 155-04R17-173-1 1 1/4” x 173” Hose Assembly 585/700
4 155-04R17-185-1 1 1/4” x 185” Hose Assembly 585/700
5 155-6400-6-8 2 Straight Adapter 585/700
6 155-M-0002 1 Cylinder Valve Bank 585/700
6/,'(75$<
'2:1
6/,'(75$<
83
,167$//'(876&+
3/8*:,7+%/8(:,5(
)520-2<67,&.
+$51(66$66(0%/<
,167$//'(876&+
3/8*:,7+*5((1:,5(
)520-2<67,&.
+$51(66$66(0%/<
MEYER MFG CORP.
6
1
5
4
3
2
