The connections to be made are the three phases, and
ground cables from the load source to the UPS. The output
cables are terminated at the Output Terminal Blocks (TB2)
for 40-80kVA, and input/output connections for 100-150 kVA.
Load cables must be run separately from all other cables
(power supply or computer-system interconnection cables).
They should not pass near interference-emitting equipment
or sensitive loads.
The connections to be made are the positive, negative, and
ground cables from the battery cabinet to the UPS. These
are terminated at the appropriate connections in the UPS
cabinet (see figure 2-2 and 2-3). Additionally, control wires
and temperature sensors in the battery cabinet must be
terminated. Refer to the battery cabinet installation drawings
for more details.

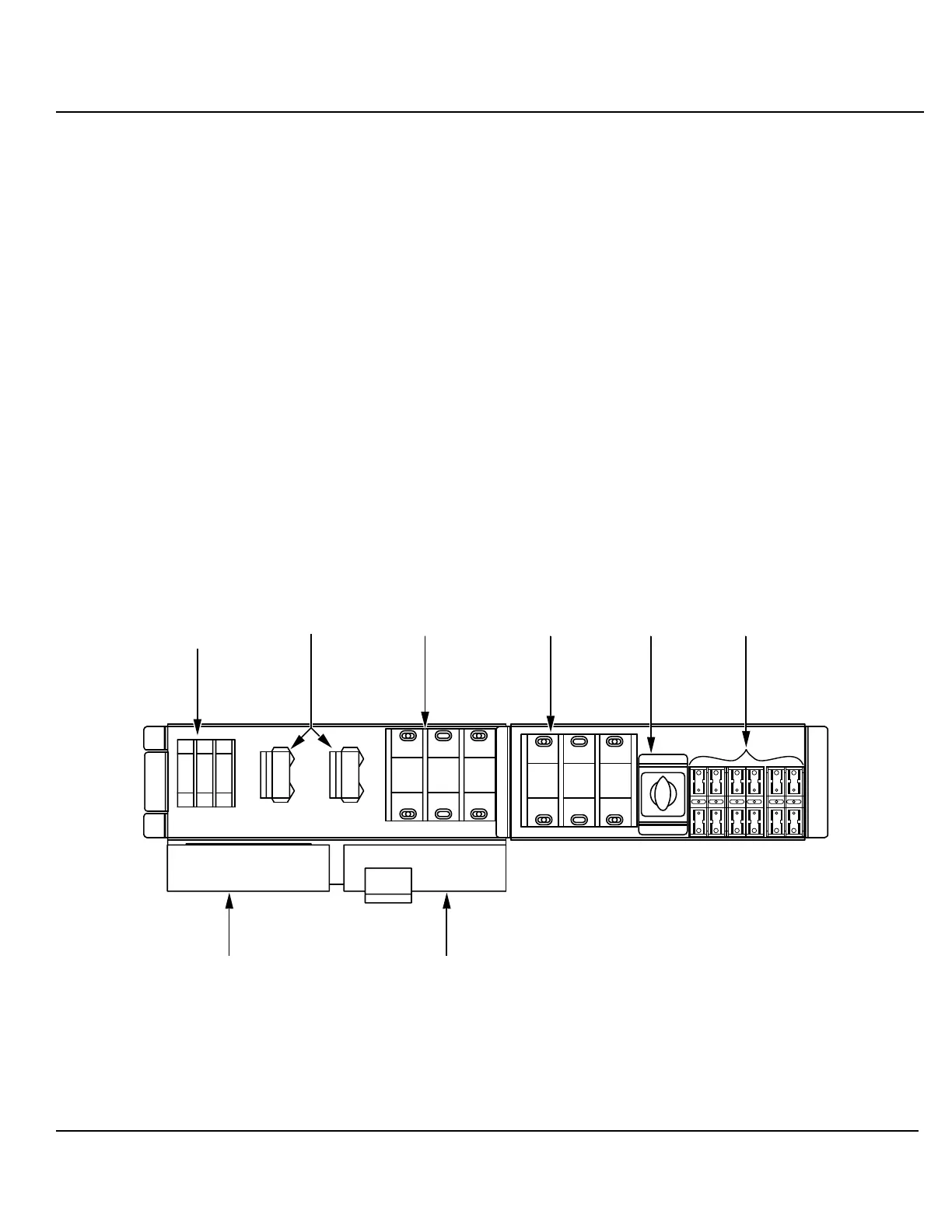

Figure UPS Terminal Blocks 40 - 80 kVA (No Auxiliary Cabinet)
2-2
Separate Bypass
Input Terminal
Block TB3
(Optional)
Battery
Connections
Main Input
Terminal Block
TB1
Output
Terminal Block
TB2
Fan Control
Switch
SR2
Fan and
Teleservice Fuses
FU7-FU12
Ground Busbar Neutral Busbar
2.5.2.5 Battery
Connections
2.5.2.4 AC Output
Connections
2 — 6 Installation 86-160310-00
Comet 40 - 150 kVA Uninterruptible Power System
