MGE UPS Systems Comet Series - Output Current Overload Curve; Output Power Overload Curve

The operating status of the UPS is provided by the
alphanumeric display. If the overload continues during
operation via the "Static Switch", the supply of power to the
load is interrupted after a specified time.
When the Comet shuts down because of a continuous
overload, the "Fault Reset" key must be pressed prior to
return to normal operation and after elimination of the
overload.

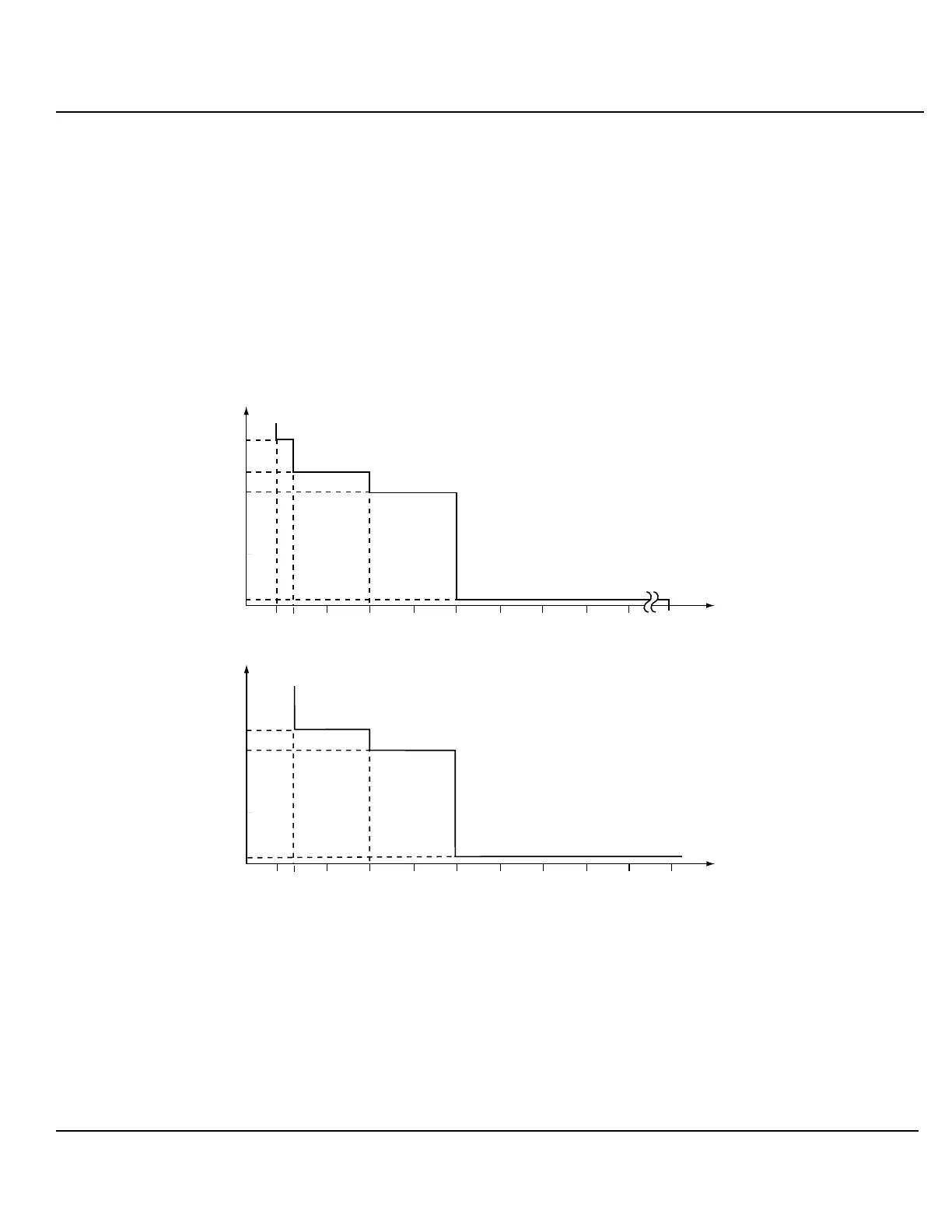

Figure Output current overload curve
3-5
Figure
Output power overload curve
3-6
3.4.4 Emergency
Shutdown Using
EPO/REPO
time
1 mn
10 s
1 s
0.3 s
1.1
1.3
1.5
1.7
1.9
2
rated load
power
P (kw)
time
10 mn
1 mn
10 s
1 s
0.15 s
1.05 1.1
1.3
1.5
1.7
1.9
3
rated load
current
I (A)
3 — 10 Operation 86-160310-00
Comet 40 - 150 kVA Uninterruptible Power System
