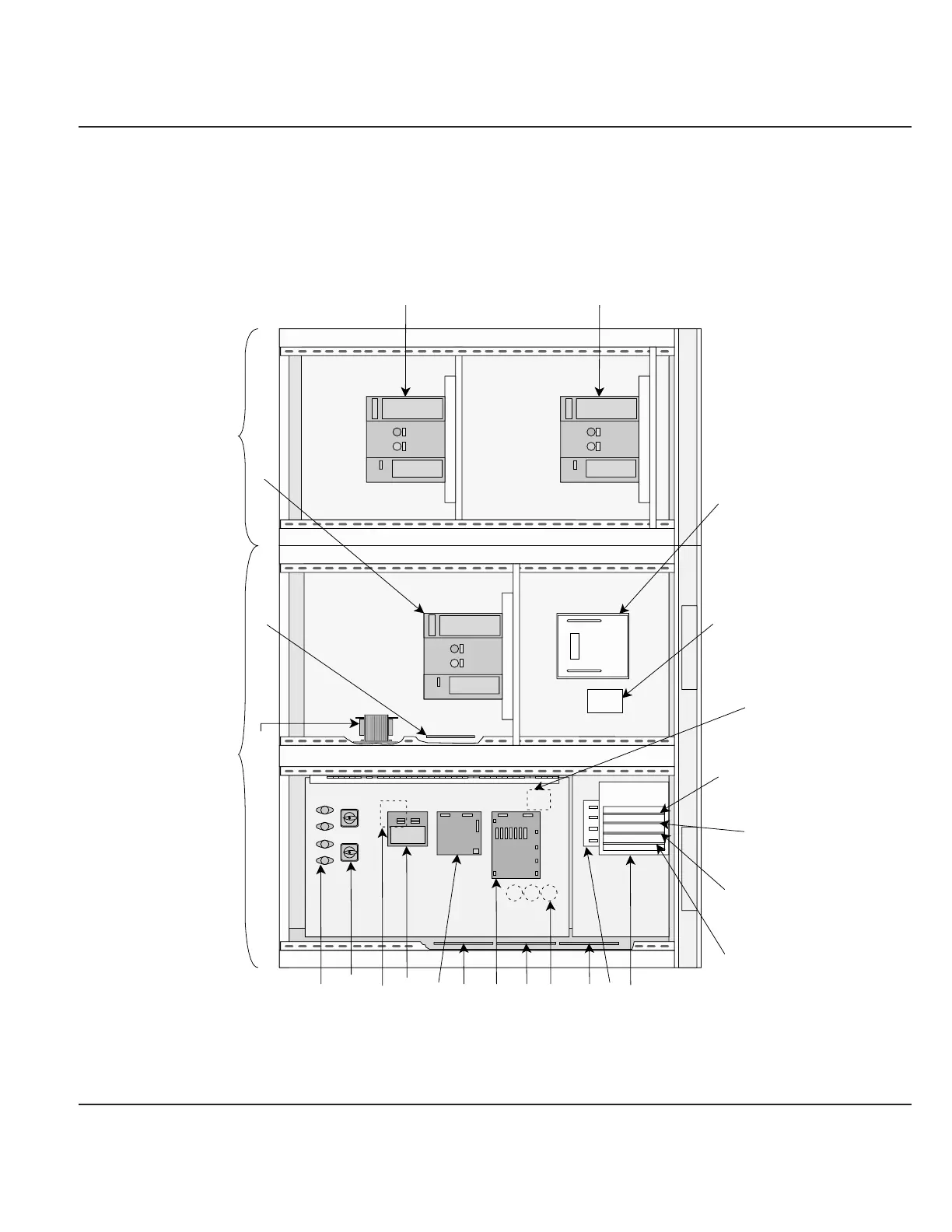

Figure EPS 6000 Major Internal Components,
1-10 Static Switch Cabinet (SSC)
UPS
BYPASS
UPS
BYPASS
FUSES
(F1, F2, F3, & F4)
ROTARY SWITCHES
(SW1, & SW2)
PCA (EPOZ)
PCA (ACOZ)
PCA (RAUZ)
PCA (ACPZ)
PCA (OBEZ)
CAPACITORS
(C11, C12, & C13)
FAR SIDE OF PANEL
PCA (IBEZ)
CARD CAGE
TRANSFORMER (T12)
CIRCUIT BREAKER (Q2S)
FUSES (F11, F12, & F13)
FAR SIDE OF PANEL
STATIC SWITCH
STATIC SWITCH PCA (SSSZ)
PCA (GTCZ)
PCA (SRIZ)
PCA (AROZ)PCA (ALEZ)
CIRCUIT BREAKER (Q3BP) CIRCUIT BREAKER (Q5N)
STATIC SWITCH CABINET
(WITH FRONT DOORS REMOVED)
MAINTENANCE BYPASS CABINET
(WITH FRONT DOOR REMOVED)
PCA (PROZ)
PCA (CBOZ)
TRANSFORMER (T13)
FAR SIDE OF PANEL
