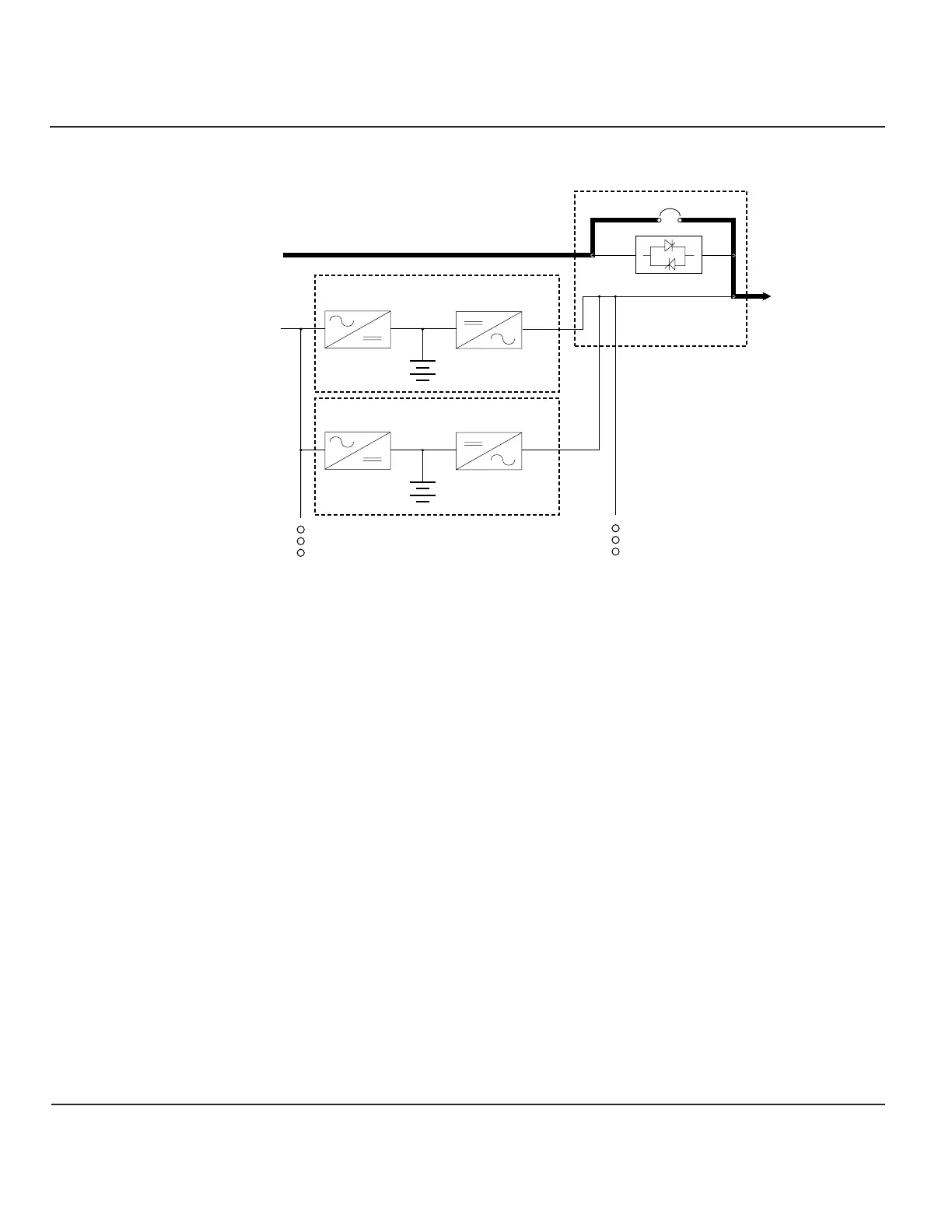

Figure Power Flow, Bypass Operation
2-3
Indicators and controls are located in three places on the
UPS module: on the front panel, behind a drop-down cover
just below the front panel, and inside the enclosure doors,
as shown in Figure 2-4. In battery cabinets and auxiliary
cabinets, the controls are located behind the cabinet doors.
The front panel, shown in Figure 2-5, includes the
emergency power off (EPO) pushbutton, the audible alarm,
four LEDs that serve as system status indicators (three on the SSC), and the “inverter on” and
“inverter off” pushbuttons (on UPS modules only).
