Installation and start-up LDM 210 - LDM 220
SS8
J16
SS1
SS2
SS4
SS5
SS6
SS7
SS3

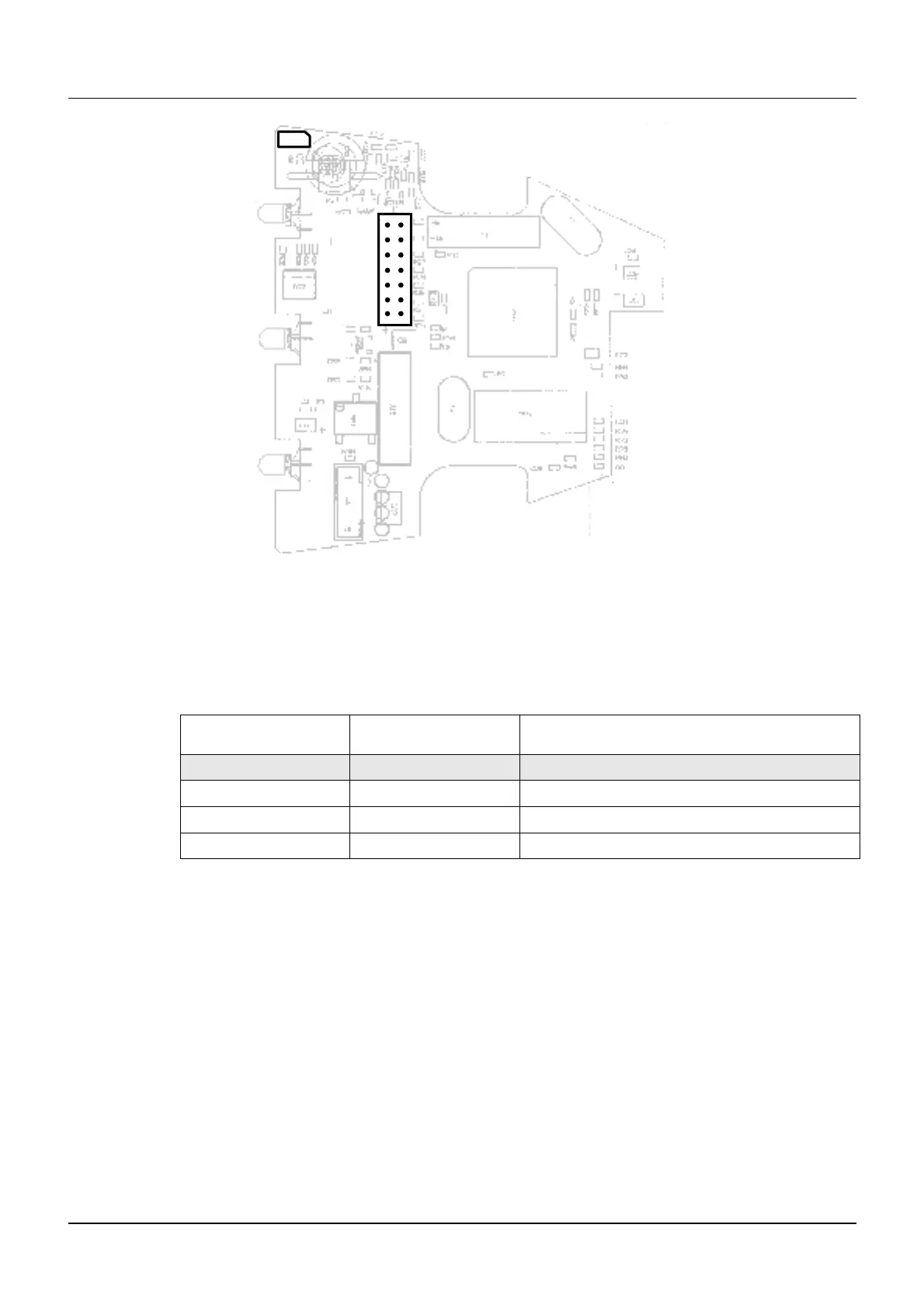

Figure 12 :
Location of jumpers for the configuration of the LDM 220
3.1.2 Operating Modes (SS2 et SS3)
These two jumpers are used to configure the reader in the four possible operating
modes:
SS2 SS3 Operating Mode
Removed Removed
Normal Mode
Removed Installed AGC programmable amplifier test Mode
Installed Removed Various Tests Mode
Installed Installed Autonomous test Mode
128569B 13
