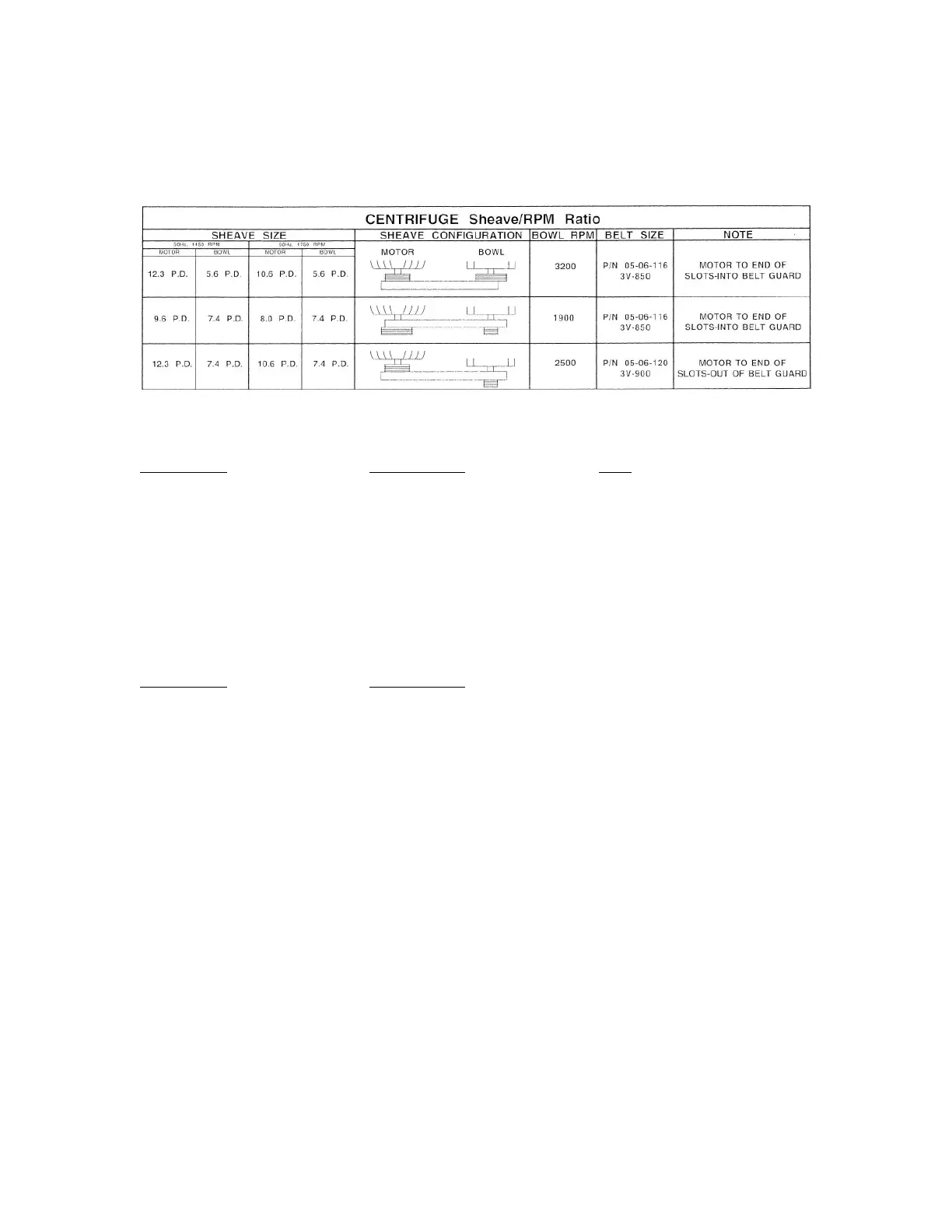

The figure below provides the combination of sheave sizes to drive the Centrifuge bowl
at the speed indicated.
60 Hz 1750 rpm motor:
Description Part Number Size
Bowl Sheave 96-10-416 4-3V-5.6/4-3V-7.4
Bowl Motor Sheave 96-10-414 4-3V-10.6/4-3V-8.0
Back Drive Motor Sheave 05-79-096 3-3V-10.6
Main Drive Belt 05-06-120 3VX900
Main Drive Belt 05-06-116 3VX850
Back Drive Belt 05-06-127 3VX1000
50 Hz 1450 rpm motor:
Description Part Number
Bowl Sheave 96-10-416 4-3V-5.6/4-3V-7.4
Bowl Motor Sheave 96-10-417 3V-10.6/4-3V-8.0
Back Drive Motor Sheave 05-79-096 3V-10.6
Main Drive Belt 05-06-120 3VX900
Main Drive Belt 05-06-116 3VX850
Back Drive Belt 05-06-127 3VX1000
