5.2.5 Assembly gearbox end
Assemble the parts in sequence as shown in Figure 16. Observe the following when
assembling.
The lip seal ring (30) of the large conveyor bearing must be mounted on the
end piece pivot before mounting the roller bearing inner race (31). Apply ball
bearing grease to the lip seal ring. Lubricate the roller bearing with grease
listed in Section 3.2.1.

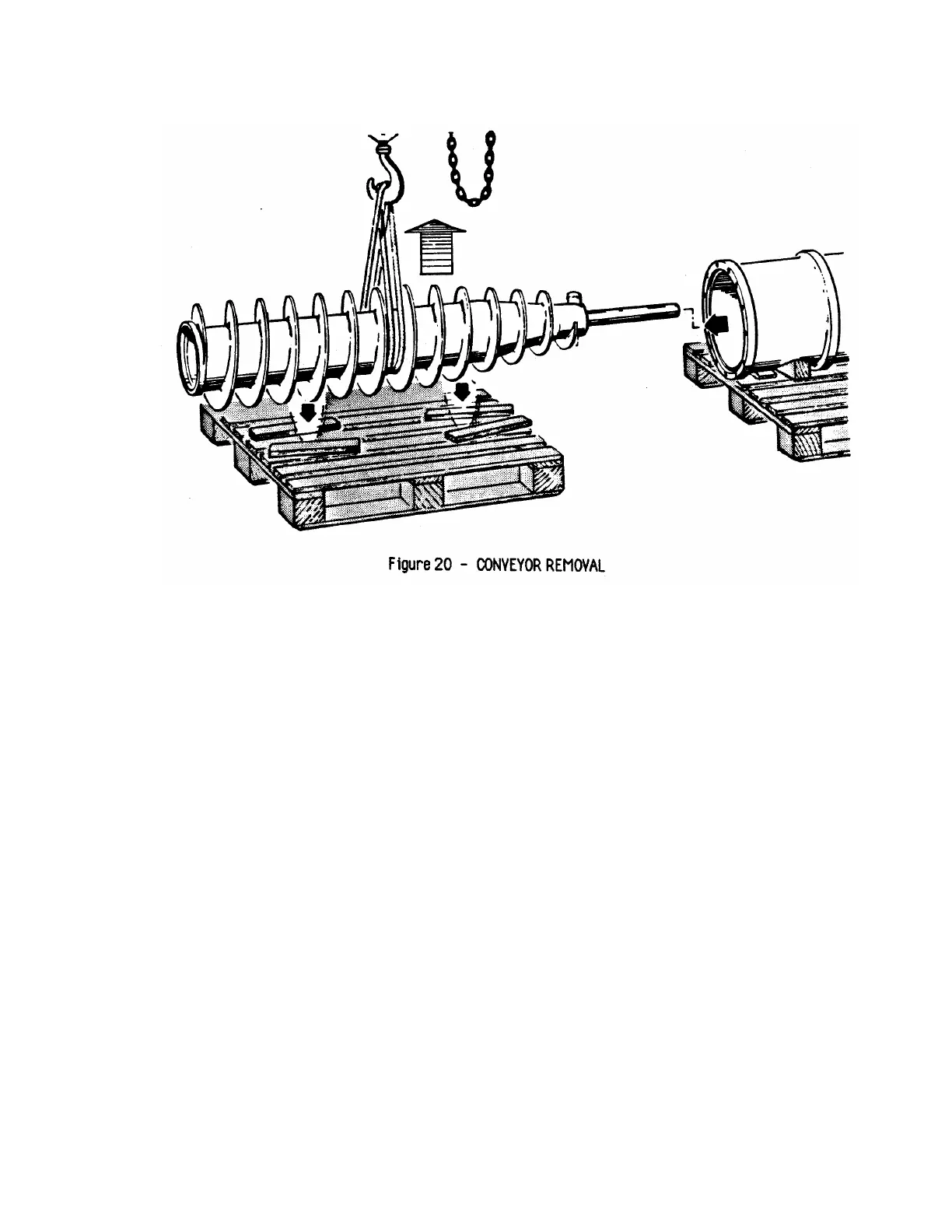

5.2.6 Disassembly large conveyor bearing
The procedure for disassembling the large conveyor bearing is as follows:
Refer to Figure 21 for identification of parts.
1. Prior to disassembly, the bearing holder flange (37) and the conveyor edge
should be indexed with a center punch to facilitate alignment when
reassembling.
