5. The fat valve disc (17) is removed after removing the bearing inner race. If

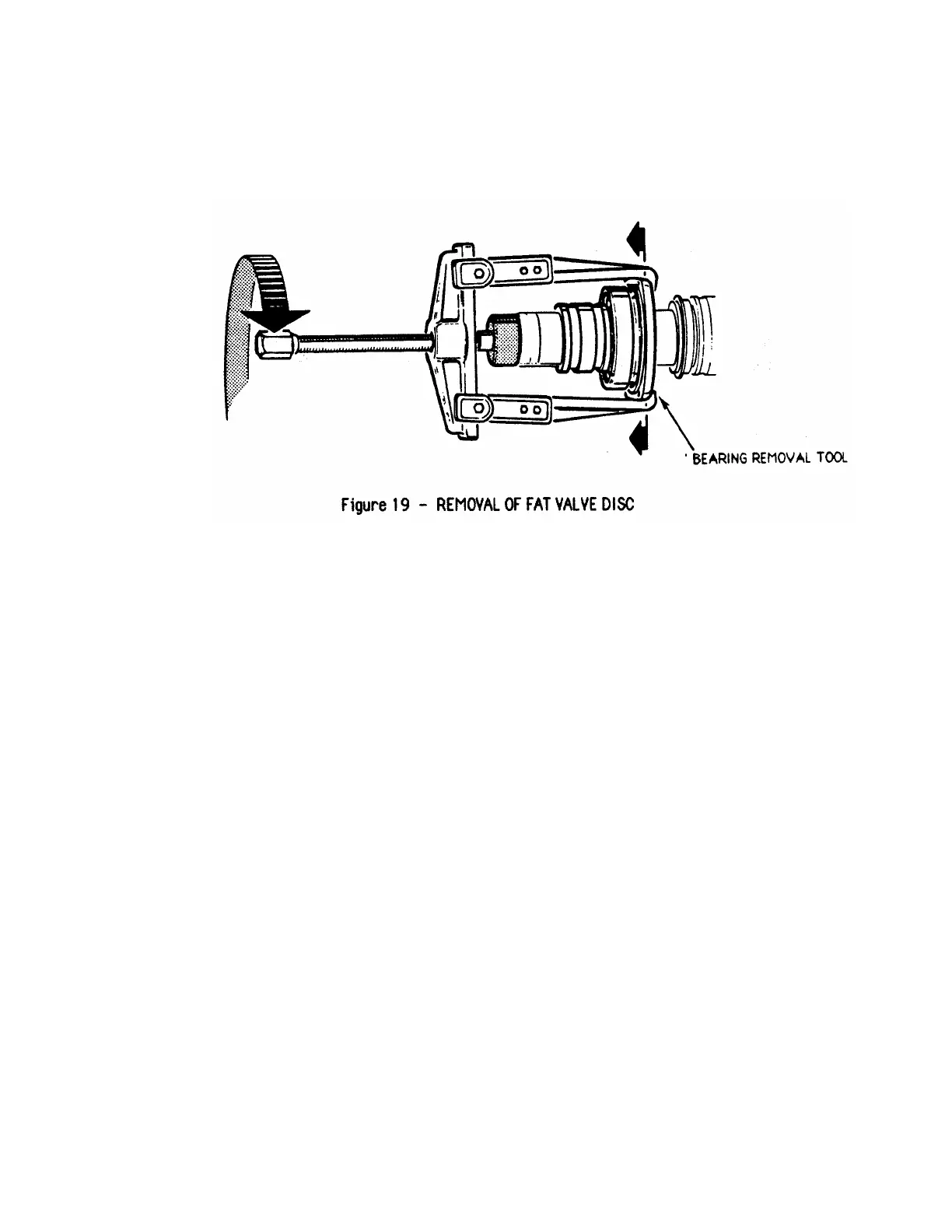

the fat valve disc has seized to the end piece (27), remove by using the puller
as shown in Figure 19. The claws of the tool should seat against the bearing
removal tool. (P/N: 96-01-035)
5.2.4 Conveyor Removal
It is necessary to remove the conveyor for replacement of bearings and seals.
Conveyor removal is also necessary to inspect for unusual conveyor wear or
imbalance. The following procedures discuss conveyor removal.
1. Remove the gearbox and end piece as discussed in Section 5.2.2, 5.2.3 - Item
1.
2. After removing the gearbox and end piece, the conveyor can be partly pried
out. The conveyor can be completely removed using a hoist as shown in
Figure 20.
3. Remove feed end piece to facilitate easier assembly of conveyor. See Section
5.2.8 for feed end piece disassembly.
