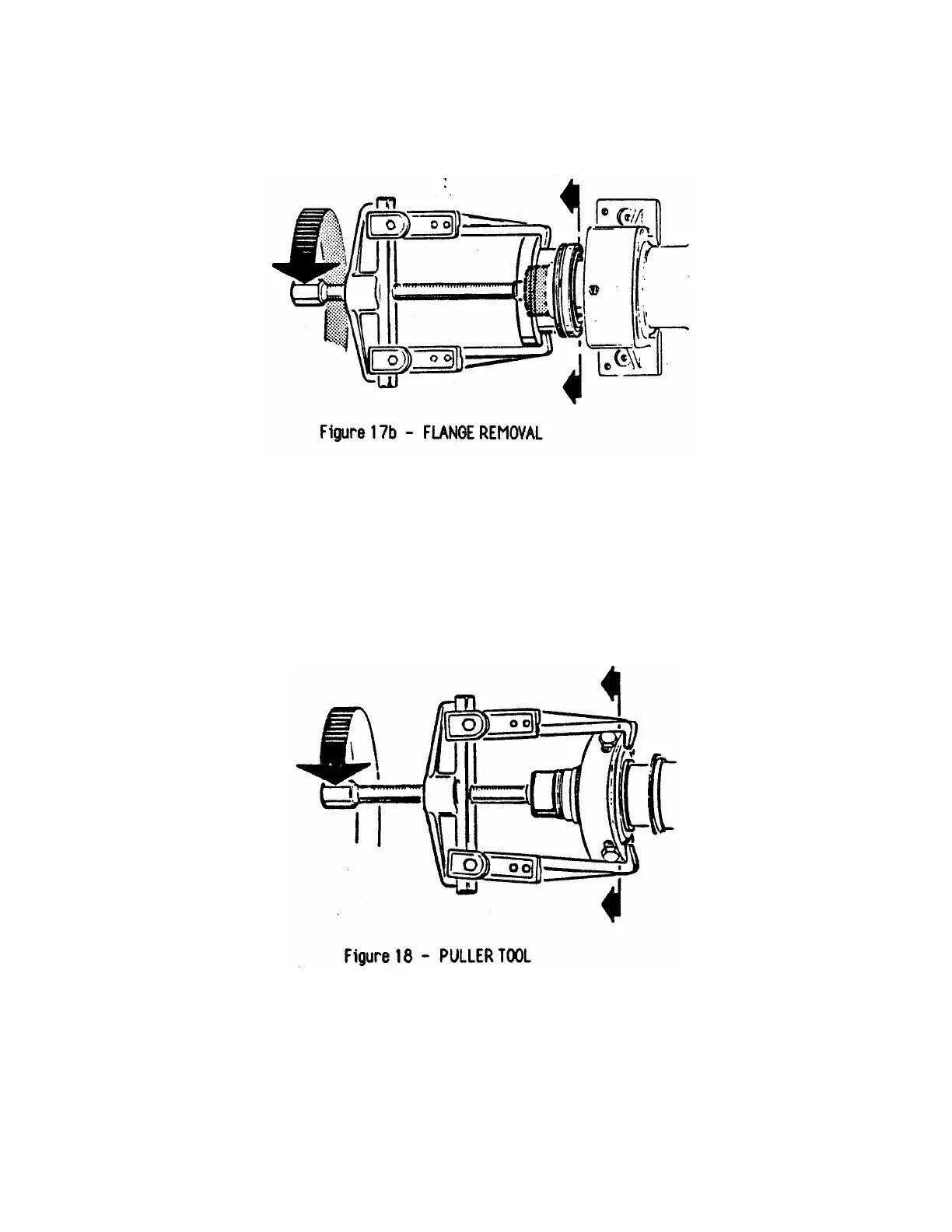

3. Remove the flange (5) facing the gearbox, using the puller if necessary. Figure
17b illustrates flange removal.
4. The labyrinth ring (10), roller bearing outer race (13), and spacing ring (15) can
be removed by hand. The roller bearing inner race can be removed with the
special puller tool (P/N: 96-01-036) as shown in Figure 18. The puller tool is
needed since the roller and needle bearing inner races are press fitted. The
tool consists of a metal clamp ring with four attaching screws. Push the clamping
ring on the inner race and clamp tool tight with screws contacting inner edge of
bearing race. Using the puller as shown, pull the inner race from the bowl end
piece. Refer to Figure 18 for illustration.
