M‑I SWACO MONGOOSE PRO Shale Shaker
5 Field Installation and Operation Manual 9092F02001AENG (D) 5
• Shaker with Vent Hood
o The optional stainless steel vent hood (Refer to Figure 4) covers the exposed basket area of the shaker
and offers a 10”, 150LB fume extraction port used to divert fumes safely away from the shaker.
o Access panels line the sides of the hood to allow operators to install or remove screen wedges and
screens.
o This option is critical on rigs that house shale shakers indoors.

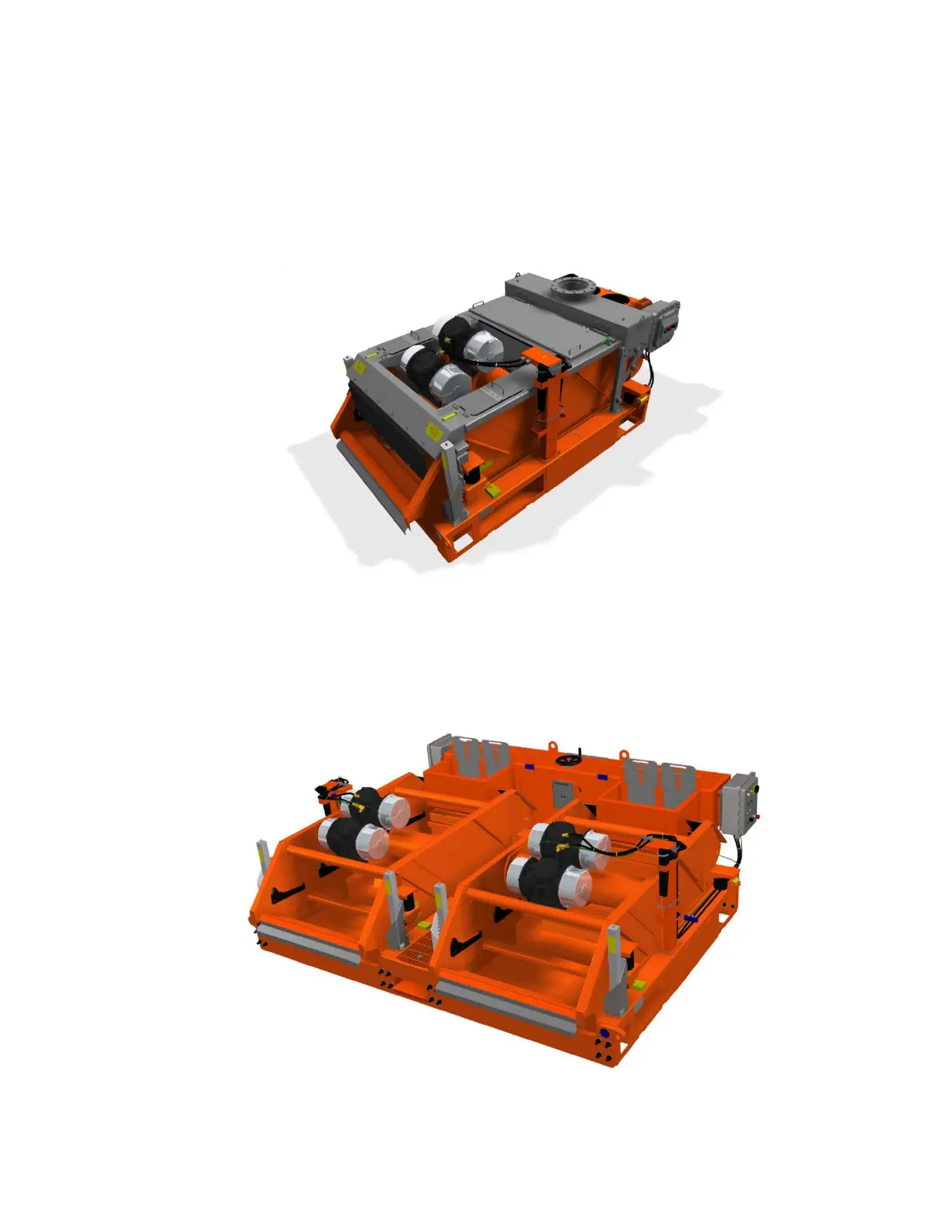

Figure 4. MONGOOSE PRO with Vent Hood
• Dual & Triple Shakers with Common Possum Belly and Knife Gate Bypass
o The knife gate is controlled by a single rotating hand wheel (Refer to Figure 5 & Figure 6).
o When the knife gate is opened, fluid is redirected into the skid bypassing the screens.
o The manually operated header box slide gates are used to control the flow rate to each shaker.
Figure 5. MONGOOSE PRO Dual Shaker with Common Possum Belly and Knife Gate
